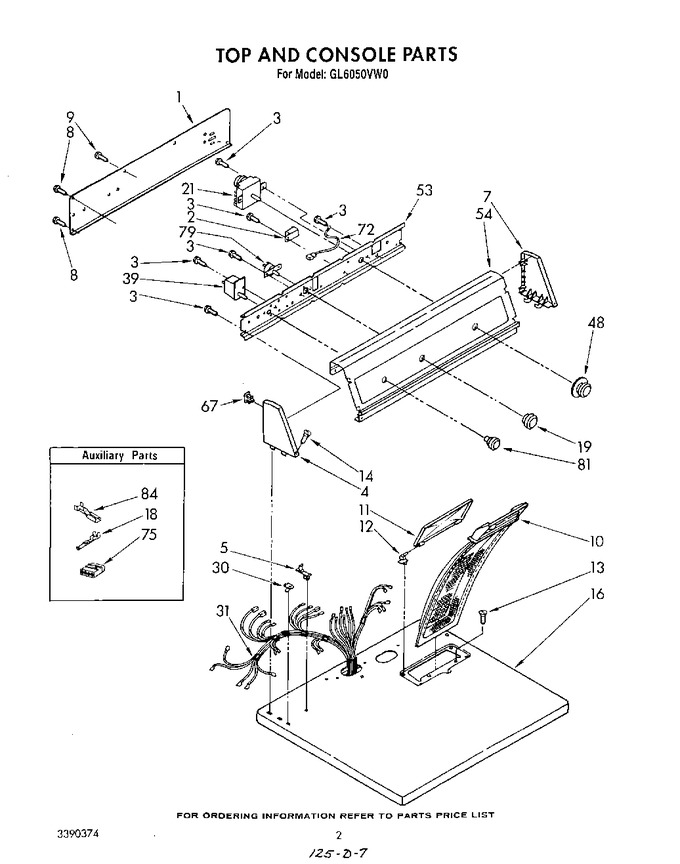

01 - Top And Console , Literature And Op
02 - Cabinet
03 - Bulkhead
05 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 386367 | Panel, Rear Console |
|
- | |||||
| 2 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 3 | WP3390631 | Screw, 10-16 X 5/16 (Replaces: 339554) |
|
$ 7.82 | |||||
| 4 | 3352243 | Cap, End (l.h.) |
|
- | |||||
| 5 | 358472 | Stop, Push-in (2) |
|
- | |||||
| 7 | 3352238 | Cap, End (r.h.) |
|
- | |||||
| 8 | WP489069 | Screw (4) (Replaces: 693994) |
|
Immediately | $ 7.86 | ||||
| 9 | WP693995 | Screw (2) (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 10 | 339392V | Screen, Lint (Replaces: 337448) |
|
Immediately | $ 41.91 | ||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 7.72 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | WP388326 | Screw, 8-18 X 1 (Replaces: 64211) |
|
$ 8.11 | |||||
| 16 | 695507 | Top (white) |
|
- | |||||
| 16 | 695508 | Top (almond) |
|
- | |||||
| 18 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 19 | 3352169 | Knob, Temperature Selector |
|
- | |||||
| 21 | 697375 | Timer Assembly, 60 Hz. |
|
- | |||||
| 30 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 31 | 3391742 | Harness, Wiring |
|
- | |||||
| 39 | 660936 | Switch, Push-to-start 346364 (alt.) 692021 (alt.) |
|
- | |||||
| 48 | 3391823 | Timer Knob & Dial |
|
- | |||||
| 53 | 3390619 | Bracket, Control |
|
- | |||||
| 54 | 3391776 | Panel, Control |
|
- | |||||
| 67 | 689559 | Nut, Push-on (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 75 | 353424 | Plug, 3-way Terminal (use W/94613) |
|
$ 18.95 | |||||
| 75 | 353425 | Receptacle, 3-way Terminal (use W/94614) |
|
- | |||||
| 76 | WP694419 | Buzzer (Replaces: 694419) |
|
$ 127.67 | |||||
| 79 | 696321 | Switch, Temperature Selector |
|
- | |||||
| 81 | 3391829 | Knob, Push-to-start |
|
- | |||||
| 84 | 94613 | Terminal |
|
- | |||||
| LIT3391774 | Instructions, Installation |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 51.44 | ||||||
| 285365 | Toast |
|
- | ||||||
| 261890 | Golden Harvest |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | ||||||
| 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | ||||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | ||||||
| LIT3390374 | List, Service Parts |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 285368 | Platinum (uncut) |
|
- | ||||||
| 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | ||||||
| 261891 | Golden Harvest (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| LIT3391353 | Use & Care Guide |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350941 | Leveler (thinner) |
|
- |
