SELECT A DIAGRAM

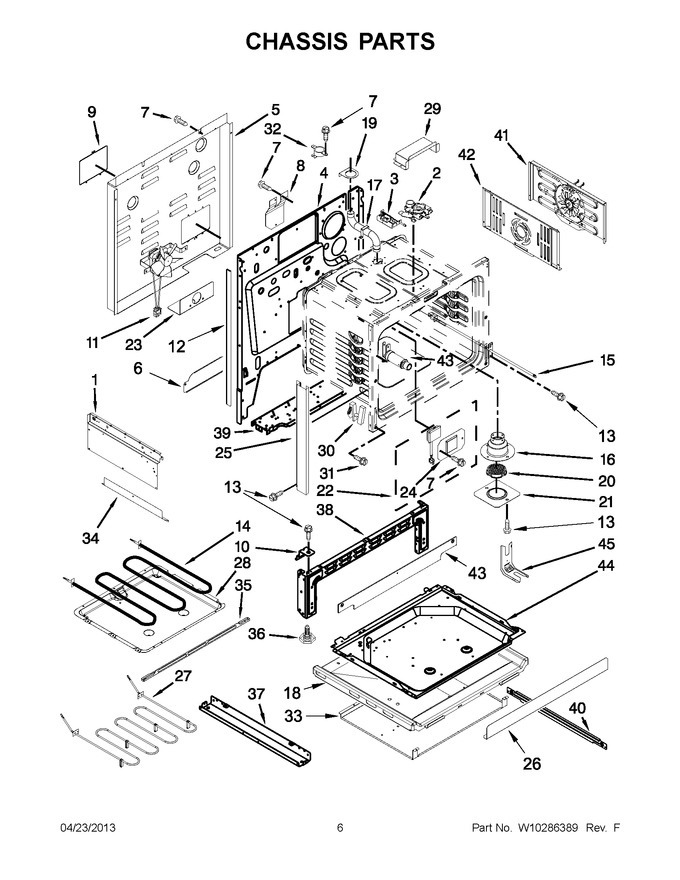

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Rack Parts


05 - Door Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2618F206-51		Panel, Shield (right)				$ 135.68
1	2618F201-51		Panel, Shield (left)				$ 32.51
2	74010819		Assembly, Latch   (Replaces: 8002P089-60)				$ 360.32
3	WP7450P108-60		Assembly, Light Switch   (Replaces: 7450P109-60)			Immediately	$ 153.60
4	3804F313-51		Back, Main		Appelez-nous	-
5	4005F810-51		Cover, Bottom Wire				$ 248.98
6	3826F066-51		Extension, Main Back				$ 7.82
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
8	7003P101-60		Insulator, Cord				$ 15.60
9	4005F612-51		Panel, Access				$ 46.13
10	3807F727-45		Support, Oven (bottom)				$ 18.96
11	WPW10586440		Fan, Cooling   (Replaces: 7427P094-60)				$ 318.60
12	W10183566		Guard, Edge		Appelez-nous	-
13	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.19
14	WP7406P430-60		Element, Broil   (Replaces: 7406P430-60)			Immediately	$ 157.55
15	12001656		Sensor, Oven   (Replaces: 7430P042-60)			Immediately	$ 43.94
16	8026P096-60		Tube, Vent Lower		Appelez-nous	-
17	8026P084-60		Tube, Vent Upper		Appelez-nous	-
18	WP2205F060-19		Bottom, Oven   (Replaces: 2205F060-19)				$ 324.00
19	3605F345-51		Holder, Vent Tube				$ 7.82
20	8034P008-60		Screen, Smoke Eliminator				$ 25.43
21	3605F354-45		Plate, Smoke Eliminator				$ 65.19
22	7407P180-60		Assembly, Light		Appelez-nous	-
23	3801F911-51		Bracket, Power Supply				$ 9.09
24	4005F684-51		Cover, Light				$ 17.53
25	3608F138-71		Trim, Side (white)				$ 34.76
25	3608F138-70		Trim, Side (black)				$ 66.28
26	4005F749-45		Cover, Front				$ 7.43
27	WP7406P411-60		Element, Bake   (Replaces: 7406P411-60)			Immediately	$ 337.68
28	3401F092-45		Pan, Hidden Bake				$ 97.82
29	4005F750-51		Cover, Door Lock		Appelez-nous	-
30	74011475		Hinge, Door   (Replaces: 7106P143-60)			Immediately	$ 130.52
31	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.77
32	7403P647-60		Switch, Hi-limit				$ 36.31
33	3604F326-45		Shield, Warming Drawer		Appelez-nous	-
34	3826F064-51		Extension, Heat Shield		Appelez-nous	-
35	3807F754-45		Support, Element				$ 8.34
36	WP74010805		Leg, Leveling   (Replaces: 7101P660-60)				$ 7.19
37	4020W035-80		Pedestal, Bottom				$ 112.82
38	W10271711		Pedestal, Base				$ 144.40
39	3807F640-51		Support, Regulator Valve				$ 31.03
40	WPW10293200		Glide, Drawer   (Replaces: W10293200)				$ 108.50
41	7427P129-60		Assembly, Convection				$ 234.10
42	WPW10186795		Cover, Convection   (Replaces: 3605F346-19)				$ 81.46
43	7713P054-60		Trim, Frame		Appelez-nous	-
44	3804F231-51		Retainer, Insulation				$ 147.45
45	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.21
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	7002P445-60		Insulation, Back		Appelez-nous	-
NI	7002P443-60		Insulation, Oven Bottom				$ 41.31
NI	WP7430P038-60		Probe, Meat   (Replaces: 7430P038-60)				$ 143.67
NI	W10221108		Cord, Power				$ 29.49
NI	7002P471-60		Insulation, Oven Wrap		Appelez-nous	-
NI	WPW10245259		Block, Terminal   (Replaces: W10245259)			Immediately	$ 35.17

    View Diagram in Separate Window       Print Part List
