Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 7922P057-60 Glass, Drawer (black) Appelez-nous -
1 7922P058-60 Glass, Drawer (white) Special Order $ 86.39

2 WP2416F086-70 Panel, Drawer (black)   (Replaces: 2416F086-70) Special Order $ 228.09

2 2416F086-71 Panel, Drawer (white) Special Order $ 126.90

3 3806F011-80 Hanger, Access Panel Special Order $ 62.29

4 W11347848 Screw   (Replaces: 7101P376-60) Special Order $ 13.55

5 WPW10297248 Overlay W/tape (stainless Only)   (Replaces: W10297248) Special Order $ 256.56


    View Diagram in Separate Window     Print Icon   Print Part List

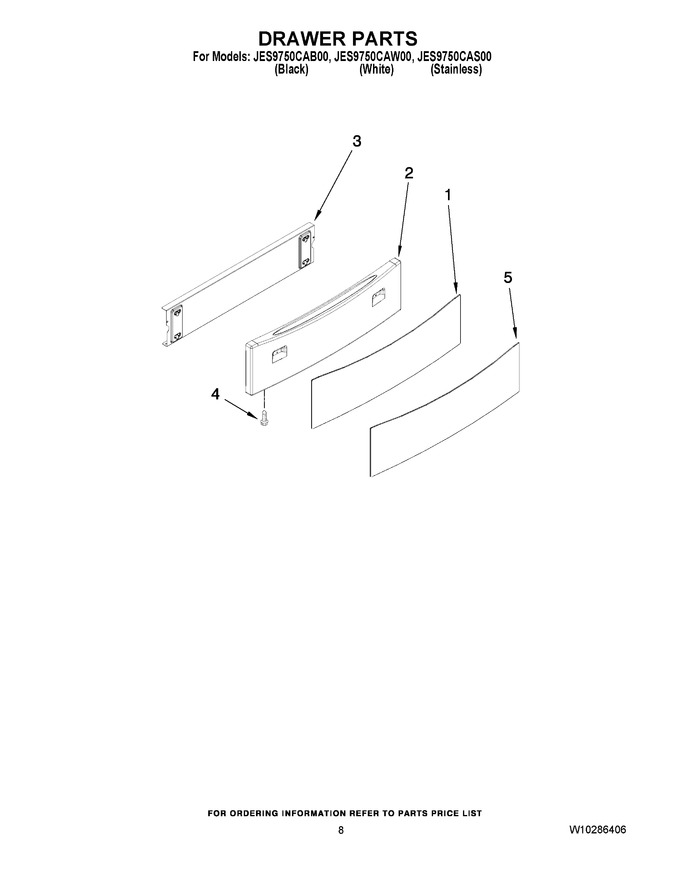

Diagram for JES9750CAW00
