SELECT A DIAGRAM

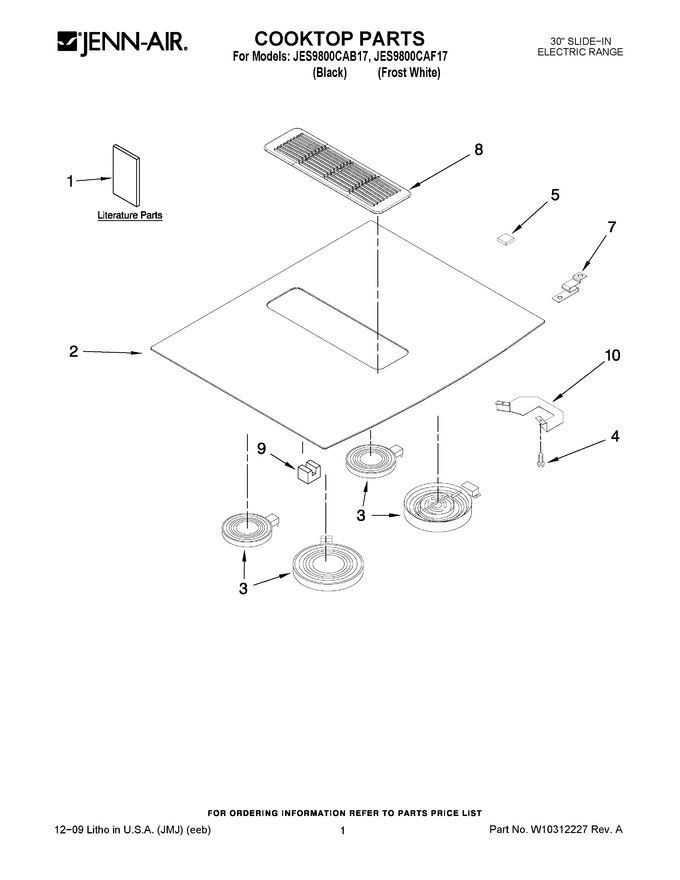

01 - Cooktop Parts


02 - Control Panel Parts


03 - Blower Assembly Parts


04 - Chassis Parts


05 - Internal Oven Parts


06 - Drawer And Rack Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8101P700-60		Instructions, Installation		Appelez-nous	-
1	8113P751-60		Use & Care Guide		Appelez-nous	-
1	8119P168-60		Diagram, Wiring		Appelez-nous	-
1	9762761		Brochure, Tips Safe Cooking		Appelez-nous	-
1	8101P185-60		Dd Venting Instructions		Appelez-nous	-
2	W10199500		Cooktop (white)				$ 814.76
2	W10239357		Cooktop (black)   (Replaces: W10199502)			Immediately	$ 930.91
3	W10823692		Element (rf)   (Replaces: 7406P431-60)			Immediately	$ 227.59
3	W10823711		Element (lf/rr)   (Replaces: 7406P375-60)			Immediately	$ 204.39
3	7406P461-60		Element (lr)		Appelez-nous	-
4	WP7101P498-60		Screw   (Replaces: 7101P498-60)				$ 7.86
5	8010P152-60		Spacer, Rubber		Appelez-nous	-
7	8004P093-60		Support, Element				$ 10.61
8	7772P050-60		Grill, Air (black)		Appelez-nous	-
8	7772P040-60		Grill, Air (white)				$ 258.25
9	8255P412-60		Block, Element Support				$ 31.52
10	7003P150-60		Insulator, Dual Elem Bridge		Appelez-nous	-
