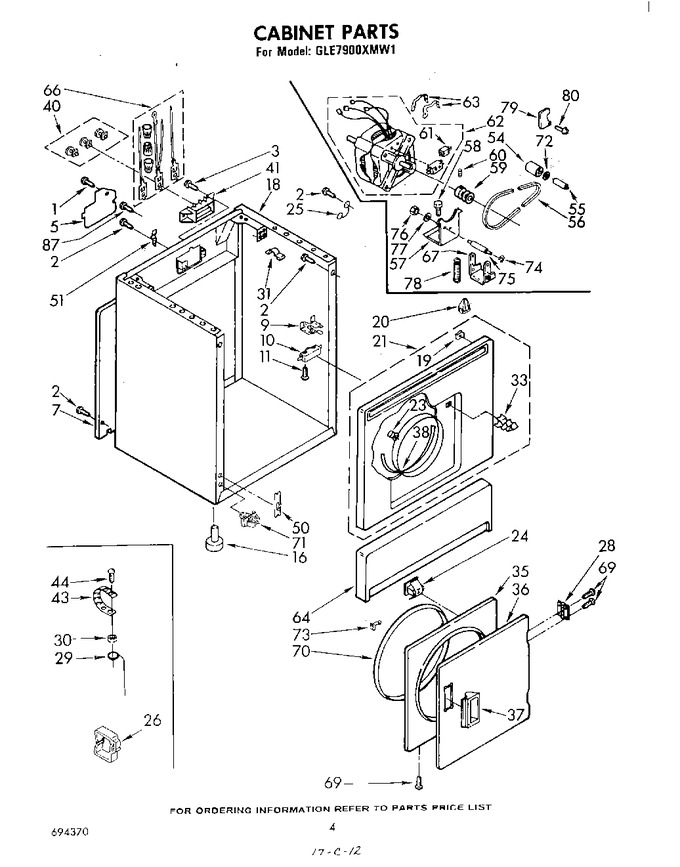

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.85
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
3	WP308685		Screw, Terminal Block To Cabinet (10-16 X 1/2)   (Replaces: 9416643)			Immediately	$ 7.87
5	W11736322		Cover, Terminal Block   (Replaces: 690893)		Appelez-nous	-
7	346368		Panel, Rear (cabinet)		Appelez-nous	-
9	WP691581		Clip, Door Switch   (Replaces: 295998)			Immediately	$ 8.09
10	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
11	WP98129		Screw, 6-20 X 1-3/8   (Replaces: 98129)				$ 7.56
16	49621		Foot, Dryer (4)   (Replaces: 688222)			Immediately	$ 8.55
18	690848		Cabinet Assembly (almond)		Appelez-nous	-
18	690847		Cabinet Assembly (white)		Appelez-nous	-
18	690851		Cabinet Assembly (golden Harvest)		Appelez-nous	-
19	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.39
20	WP18776		Lock, Front Top   (Replaces: 690363)			Immediately	$ 12.68
21	693203		Panel, Upper Front (almond)		Appelez-nous	-
21	693202		Panel, Upper Front (white)		Appelez-nous	-
21	693206		Panel, Upper Front (golden Harvest)		Appelez-nous	-
23	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 20.65
24	279570		Catch, Door Assembly   (Replaces: 690081)			Immediately	$ 8.89
25	690236		Wire, Motor Ground		Appelez-nous	-
26	688412		Clip, Harness Retainer		Appelez-nous	-
28	WP348023		Hinge & Pin Assembly   (Replaces: 348023)				$ 8.42
29	685449		Wire, Ground		Appelez-nous	-
30	W10080180		Nut, 10-24   (Replaces: 120361)				$ 13.48
31	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.09
33	279570		Striker, Door   (Replaces: 693717)			Immediately	$ 8.89
35	280077		Door, Rear (golden Harvest)   (Replaces: 689277)				$ 197.58
35	280077		Door, Rear (almond)   (Replaces: 689274)				$ 197.58
35	280077		Door, Rear (white)   (Replaces: 348201)				$ 197.58
36	689314		Door, Front (almond)		Appelez-nous	-
36	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 147.39
36	689319		Door Front (golden Harvest)		Appelez-nous	-
37	689584		Handle, Door (golden Harvest)		Appelez-nous	-
37	WP686711		Handle, Door (white)   (Replaces: 686715)			Immediately	$ 7.95
37	689306		Handle, Door (almond)		Appelez-nous	-
38	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 74.52
40	279393		Terminal Block Kit (for Terminal Block)			Immediately	$ 47.37
41	279320		Block, Terminal   (Replaces: 690261)			Immediately	$ 68.25
43	22965		Strap, Ground		Appelez-nous	-
44	132848		Screw, 10-24 X 1		Appelez-nous	-
50	WP297092		Clip, Hinge (2)   (Replaces: 297092)			Immediately	$ 8.24
51	WP8066217		Hinge Top   (Replaces: 238088)				$ 7.82
54	WP691366		Pulley, Idler   (Replaces: 347226)			Immediately	$ 22.47
55	687121		Shaft, Idler		Appelez-nous	-
56	341241		Belt, Drive			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 687079)			Immediately	$ 121.57
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 13.37
59	W11233559		Pulley, 50 Hz./60 Hz. (includes Illus. 60)   (Replaces: 687076)				$ 113.89
60	690046		Setscrew, 1/4-28 X 3/8		Appelez-nous	-
61	279827		Switch   (Replaces: 337351)			Immediately	$ 191.95
62	W11618508		Motor Assembly 50 Hz.   (Replaces: 685815)				$ 348.11
63	689537		Almond		Appelez-nous	-
63	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
63	WP660658		Clamp, Motor (alt.)   (Replaces: 343481)				$ 7.83
63	WP660658		Clamp, Motor (alt.)   (Replaces: 685441)				$ 7.83
63	689539		Golden Harvest		Appelez-nous	-
63	237035		White		Appelez-nous	-
66	279318		Terminal, Tinned & Brass (3) (includes Illus. 40)			Immediately	$ 100.99
67	345263		Frame, Shifter		Appelez-nous	-
69	WP694091		Screw   (Replaces: 694091)				$ 7.19
70	W11613302		Seal, Door   (Replaces: 685763)				$ 53.63
71	690625		Clip, Toe Panel (2)		Appelez-nous	-
72	345323		Washer, Thrust		Appelez-nous	-
73	341776		Clip, Toe Panel Lock		Appelez-nous	-
74	WP354987		E-ring   (Replaces: 354987)			Immediately	$ 11.75
75	345234		Shaft, Shifter		Appelez-nous	-
76	124925		Nut, 3/8 X 24		Appelez-nous	-
77	120382		Washer, 3/8``		Appelez-nous	-
78	345254		Spring, Tension		Appelez-nous	-
79	00687077		Shield, Motor Switch   (Replaces: 687077)				$ 459.64
80	WP489128		Screw (2)   (Replaces: 98209)				$ 10.88
87	WP681414		Screw, 10-32 X 1/2 (external Ground)   (Replaces: 690989)			Immediately	$ 7.85
