View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

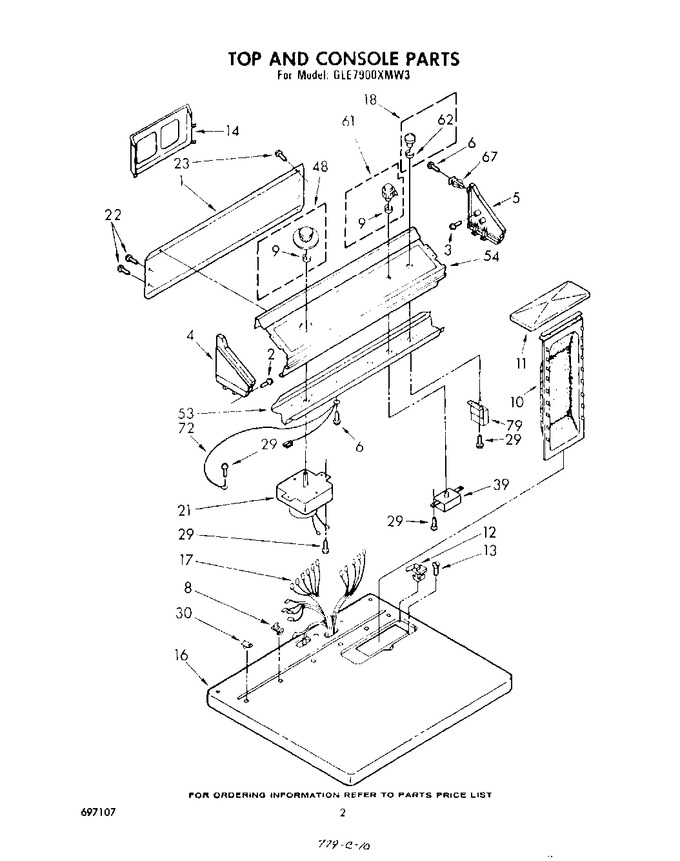

01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 359372 | Panel, Rear |
|
- | |||||
| 2 | 358225 | Screw, 8-18 X 1 |
|
- | |||||
| 3 | 355326 | Screw, 3-16 X 5/8 |
|
- | |||||
| 4 | 375313 | Cap, End (l.h.) (almond) |
|
- | |||||
| 4 | 375318 | Cap, End (l.h.) (golden Harvest) |
|
- | |||||
| 4 | 375305 | Cap, End (l.h.) (white) |
|
- | |||||
| 5 | 375315 | Cap , End (r.h.) (almond) |
|
- | |||||
| 5 | 377283 | Cap , End (r.h.) (golden Harvest) |
|
- | |||||
| 5 | 375309 | Cap , End (r.h.) (white) |
|
- | |||||
| 6 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 8 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 9 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 7.81 | ||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 689313 | Cover, Lint Screen (golden Harvest) |
|
- | |||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 7.72 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | 357645 | Rack, Literature |
|
- | |||||
| 16 | 689452 | Top (golden Harvest) |
|
- | |||||
| 16 | 689449 | Top (almond) |
|
- | |||||
| 16 | 688479 | Top (white) |
|
- | |||||
| 17 | 694758 | Harness, Electric |
|
- | |||||
| 18 | 689857 | Button Assembly |
|
- | |||||
| 21 | 687939 | Timer Assembly, 230 Volt (50 Hz/60 Hz.) |
|
- | |||||
| 22 | WP489069 | Screw, Hex Washer Head (4) (Replaces: 693994) |
|
Immediately | $ 7.86 | ||||
| 23 | WP693995 | Screw, Hex Washer Head (2) (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 29 | WP3390631 | Screw, Tapping (Replaces: 339554) |
|
$ 7.82 | |||||
| 30 | 358472 | Stop, Push-in Top (2) |
|
- | |||||
| 39 | 348686 | Switch, Temperature Selector |
|
- | |||||
| 48 | 690201 | Timer Knob Assembly |
|
- | |||||
| 53 | 359708 | Bracket, Control |
|
- | |||||
| 54 | 690419 | Panel, Control |
|
- | |||||
| 61 | 690292 | Knob & Clip, Temperature |
|
- | |||||
| 62 | 599530307 | Clip (Replaces: 90015) |
|
- | |||||
| 67 | 689559 | Nut, Push-on (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 79 | 660936 | Switch, Push-to-start |
|
- | |||||
| 79 | 692021 | Switch, Push-to-start (alt.) |
|
- | |||||
| 79 | 346364 | Switch, Push-to-start (alt.) |
|
- | |||||
| LIT693991 | Instructions, Installation |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 261890 | Golden Harvest |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | ||||||
| LIT697107 | List, Service Parts |
|
- | ||||||
| LIT696756 | Use & Care Guide |
|
- | ||||||
| LIT693849 | Guide, Dryer |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| LIT677813 | Automatic Washer (belt Drive) |
|
- | ||||||
| LIT677971 | Ice Maker (in Refrigerator) |
|
- | ||||||
| LIT677967 | Dishwasher |
|
- | ||||||
| 677821 | Compactor (Replaces: LIT677821) |
|
$ 35.01 | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 51.44 | ||||||
| LIT677818 | Dryer |
|
- | ||||||
| 261891 | Golden Harvest (uncut) |
|
- |
