01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:

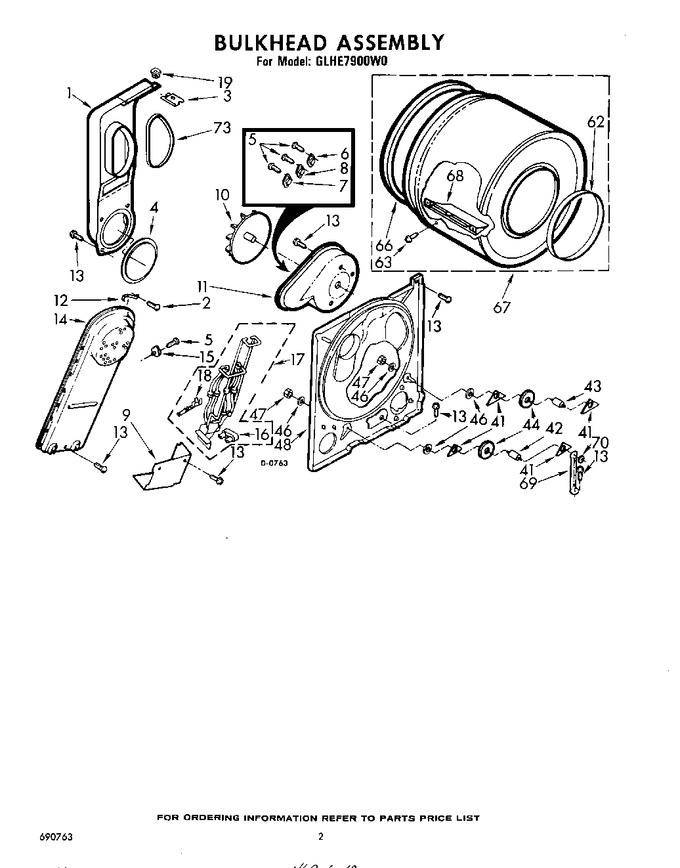

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 279505 | Lint Chute Assembly (Replaces: 299693) |
|
$ 302.61 | |||||
| 2 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.85 | ||||
| 3 | 338177 | Clip, Chute (2) |
|
- | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | LS3-155 | Thermostat, 165~f (74~c) (alternate) (Replaces: 341681) |
|
$ 24.35 | |||||
| 6 | 295429 | Thermostat, 165~f (74~c) (alternate) |
|
- | |||||
| 7 | WG04F01122 | Thermostat, 140~f (60~c) (alternate) (Replaces: 342813) |
|
$ 14.49 | |||||
| 7 | WG04F01122 | Thermostat, 140~f (60~c) (alternate) (Replaces: 342812) |
|
$ 14.49 | |||||
| 8 | WP694674 | Thermostat, Operating 150~f (66~c) (alt.) (Replaces: 341146) |
|
Immediately | $ 50.51 | ||||
| 8 | WP694674 | Thermostat, Operating 150~f (66~c) (alt.) (Replaces: 341147) |
|
Immediately | $ 50.51 | ||||
| 9 | 348618 | Reflector, Heat |
|
- | |||||
| 10 | WP694089 | Wheel, Blower (Replaces: 343939) |
|
Immediately | $ 37.66 | ||||
| 11 | 348494 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 337272) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | 685457 | Box, Heater |
|
- | |||||
| 15 | 279054 | Thermostat, 305~f (152~c) (Replaces: 685828) |
|
$ 145.55 | |||||
| 16 | 348640 | Receptacle |
|
- | |||||
| 17 | 685943 | Element, Heater (use 279139 Jumper Wire For Heater Element Harness Terminal Replacement) |
|
- | |||||
| 18 | 343035 | Terminal, Male (2) |
|
- | |||||
| 19 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 339491) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 347364) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 339489) |
|
Immediately | $ 47.30 | ||||
| 44 | 349241T | Roller, Support (Replaces: 349241) |
|
Immediately | $ 29.53 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.19 | |||||
| 47 | 120377 | Nut, 3/8-16 |
|
- | |||||
| 48 | 685769 | Bulkhead |
|
- | |||||
| 62 | WP3394508 | Bearing, Ring (Replaces: 297936) |
|
$ 125.58 | |||||
| 63 | 690372 | Screw, 11-16 X 7/8 |
|
- | |||||
| 66 | 239087 | Seal, Rear (Replaces: 337449) |
|
Immediately | $ 62.78 | ||||
| 67 | 3396775 | Drum Assembly (Replaces: 337928) |
|
$ 336.22 | |||||
| 68 | WP342847 | Baffle (Replaces: 342847) |
|
$ 146.98 | |||||
| 69 | 348945 | Bracket, Support |
|
- | |||||
| 70 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 |
