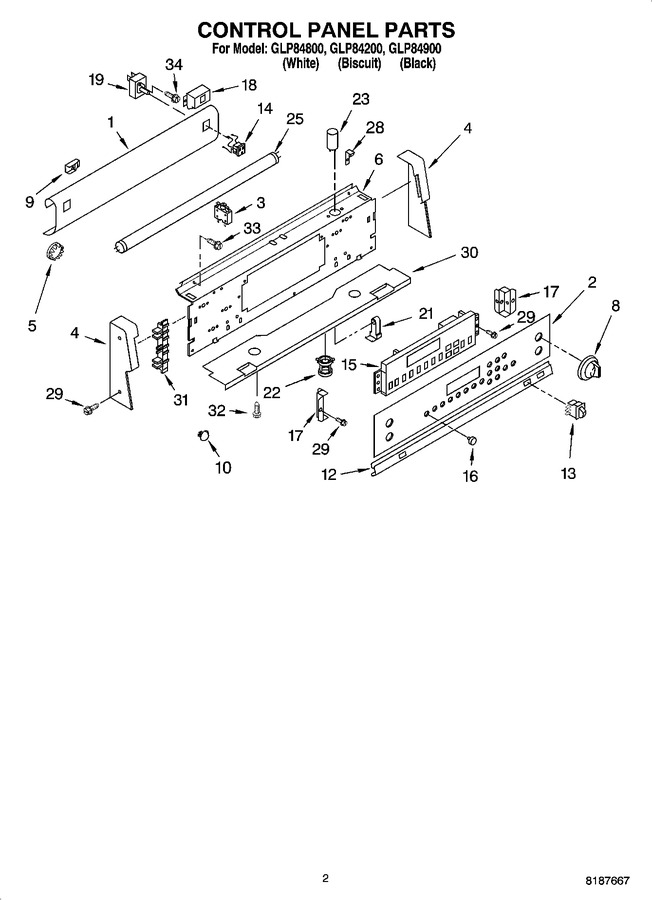

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9755481PW | Lamp Cover (white) |
|
- | |||||
| 1 | 9755481PC | Lamp Cover (biscuit) |
|
- | |||||
| 1 | 9755481PB | Lamp Cover (black) |
|
- | |||||
| 2 | 9754226 | Console-glass (black (control Panel)) |
|
- | |||||
| 2 | 9754222 | Console-glass (white) |
|
- | |||||
| 2 | 9754224 | Console-glass (biscuit) |
|
- | |||||
| 3 | 3191072 | Breaker, 15amp. (2) |
|
- | |||||
| 4 | 9752422FC | End Cap (biscuit Left) |
|
- | |||||
| 4 | 9752423FB | End Cap (black, Right) |
|
- | |||||
| 4 | 9752422FB | End Cap (black, Left) |
|
- | |||||
| 4 | 9752423FC | End Cap (biscuit Right) |
|
- | |||||
| 4 | 9752423FW | End Cap (white (right)) |
|
- | |||||
| 4 | 9752422FW | End Cap (white (left) |
|
- | |||||
| 5 | 9780577 | Button Plug (8 Mm (2)) |
|
- | |||||
| 6 | 9755511 | Panel, Support |
|
- | |||||
| 8 | WP9752405FW | Knobs, Control (4) (white) (Replaces: 9752405FW) |
|
$ 22.20 | |||||
| 8 | 9752405FC | Knobs, Control (4) (biscuit) |
|
- | |||||
| 8 | 9752405FB | Knobs, Control (4) (black) |
|
$ 17.20 | |||||
| 9 | WP9750343 | Lens, Indicator (Replaces: 9752589) |
|
Immediately | $ 6.00 | ||||
| 9 | 313102 | Light, Indicator (2) (burners) |
|
$ 66.48 | |||||
| 10 | 9752854 | Spacer |
|
- | |||||
| 12 | 9752441PW | Trim Strip (white) |
|
- | |||||
| 12 | 9752441PB | Trim Strip (black) |
|
- | |||||
| 12 | 9752441PC | Trim Strip (biscuit) |
|
- | |||||
| 13 | 9754017FW | Switch, Oven Light (white) |
|
- | |||||
| 13 | 9754017FB | Switch, Oven Light (black) |
|
- | |||||
| 13 | 9754017FC | Switch, Oven Light (biscuit) |
|
- | |||||
| 14 | 9755406FW | Outlet, Untimed (2) (white) |
|
- | |||||
| 14 | 9755406FB | Outlet, Untimed (2) (black) |
|
- | |||||
| 14 | 9755406FC | Outlet, Untimed (2) (biscuit) |
|
- | |||||
| 15 | 9754261 | Timer |
|
$ 535.79 | |||||
| 16 | 9781954FB | Knob, Timer (17) (black) |
|
$ 14.66 | |||||
| 16 | 9781954FW | Knob, Timer (17) (white) |
|
$ 16.39 | |||||
| 16 | 9781954FC | Knob, Timer (17) (biscuit) |
|
$ 14.55 | |||||
| 17 | 9753304 | Bracket (2) |
|
- | |||||
| 18 | 9755353PC | Box, Outlet (biscuit) |
|
- | |||||
| 18 | 9755353PB | Box, Outlet (black) |
|
- | |||||
| 18 | 9755353PW | Box, Outlet (white) |
|
- | |||||
| 19 | WP9750643 | Infinite Switch (1400w) (Replaces: 9750643) |
|
Immediately | $ 145.12 | ||||
| 19 | WP9755174 | Infinite Switch (dual, (2)) (Replaces: 9755174) |
|
Immediately | $ 66.11 | ||||
| 19 | 9750644 | Infinite Switch (1700w) |
|
$ 53.99 | |||||
| 21 | 9755492 | Receptacle, Light |
|
- | |||||
| 22 | 9750866 | Starter, Holder |
|
- | |||||
| 23 | 9755493 | Starter, Light |
|
- | |||||
| 25 | 9755491 | Light, Fluorescent |
|
- | |||||
| 28 | 9753017 | Clip, Spring (2) |
|
- | |||||
| 29 | 9780265 | Screw, 8-16 X 3/8 |
|
- | |||||
| 30 | 9752439 | Base, Console |
|
- | |||||
| 31 | 9753076FB | Spacer, Timer (2) (black) |
|
- | |||||
| 31 | 9753076FW | Spacer, Timer (2) (white) |
|
- | |||||
| 31 | 9753076FC | Spacer, Timer (2) (biscuit) |
|
- | |||||
| 32 | WP3400832 | Screw, 8-18 X 1/2 (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 33 | 9780852 | Screw, 8-18 X 3/8 |
|
- | |||||
| 34 | 9750995 | Insulation, Control Panel |
|
- | |||||
| 34 | WP3400882 | Screw, 8-32 X 7/32 (Replaces: 3400816) |
|
Immediately | $ 7.55 |
