View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

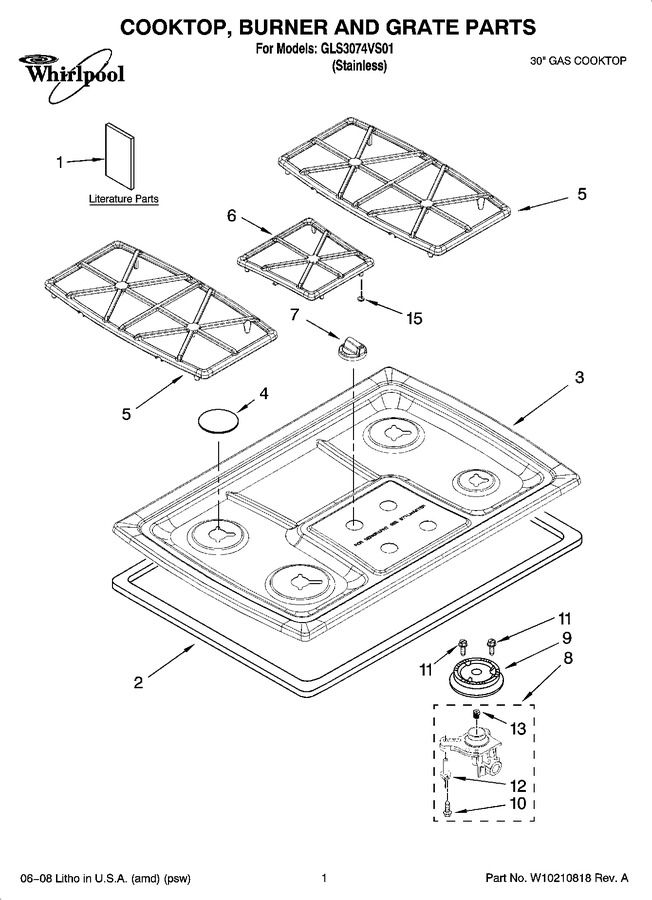

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10131955 | Installation Instructions |
|
- | |||||
| 1 | 8304571 | Undercounter Installation |
|
- | |||||
| 1 | W10169218 | Converstion Instructions |
|
- | |||||
| 1 | W10203459 | Use & Care Guide |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | 9759133 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | 9760045 | Seal, Foam |
|
$ 275.82 | |||||
| 3 | W10140183 | Cooktop |
|
$ 107.93 | |||||
| 4 | WP8286156CB | Burner Caps (lf) (Replaces: 8286156CB) |
|
$ 124.77 | |||||
| 4 | WP8286153CB | Burner Caps (rf) (Replaces: 8286153CB) |
|
$ 72.29 | |||||
| 4 | WP8286154CB | Burner Caps (lr) (Replaces: 8286154CB) |
|
$ 90.93 | |||||
| 4 | WP8286155CB | Burner Caps (rr) (Replaces: 8286155CB) |
|
$ 122.15 | |||||
| 5 | WP9759505 | Grate, Burner (Replaces: 9759505) |
|
$ 221.48 | |||||
| 6 | 9759509 | Grate, Center |
|
$ 76.71 | |||||
| 7 | WPW10180180 | Knob, Control (Replaces: W10180180) |
|
Immediately | $ 26.50 | ||||
| 8 | WPW10128448 | Holder, Orifice (rf) (Replaces: W10128448) |
|
Immediately | $ 117.30 | ||||
| 8 | 8287043 | Holder, Orifice (lf) |
|
$ 79.00 | |||||
| 8 | WPW10128451 | Holder, Orifice (rr) (Replaces: W10128451) |
|
$ 116.43 | |||||
| 8 | WPW10128450 | Holder, Orifice (lr) (Replaces: W10128450) |
|
$ 124.35 | |||||
| 9 | WPW10406878 | Head, Burner (lf) (Replaces: 8286183) |
|
$ 107.48 | |||||
| 9 | WPW10406797 | Head, Burner (rr) (Replaces: 8286182) |
|
$ 92.91 | |||||
| 9 | WPW10406283 | Head, Burner (lr) (Replaces: 8286184) |
|
$ 78.02 | |||||
| 9 | WPW10406243 | Head, Burner (rf) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 10 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 11 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 8.56 | ||||
| 12 | WP9782116 | Electrode (Replaces: 9782116) |
|
Immediately | $ 54.94 | ||||
| 13 | 8287044 | Orifice (lf) |
|
$ 86.26 | |||||
| 13 | 8286551 | Orifice (rr) |
|
$ 104.95 | |||||
| 13 | WP3192523 | Orifice (lr) (Replaces: 3192523) |
|
$ 93.56 | |||||
| 13 | WP3192529 | Orifice (rf) (Replaces: 3192529) |
|
$ 100.74 | |||||
| 14 | 814323 | Grommet, Grate (Replaces: 3186678) |
|
Immediately | $ 11.42 |
