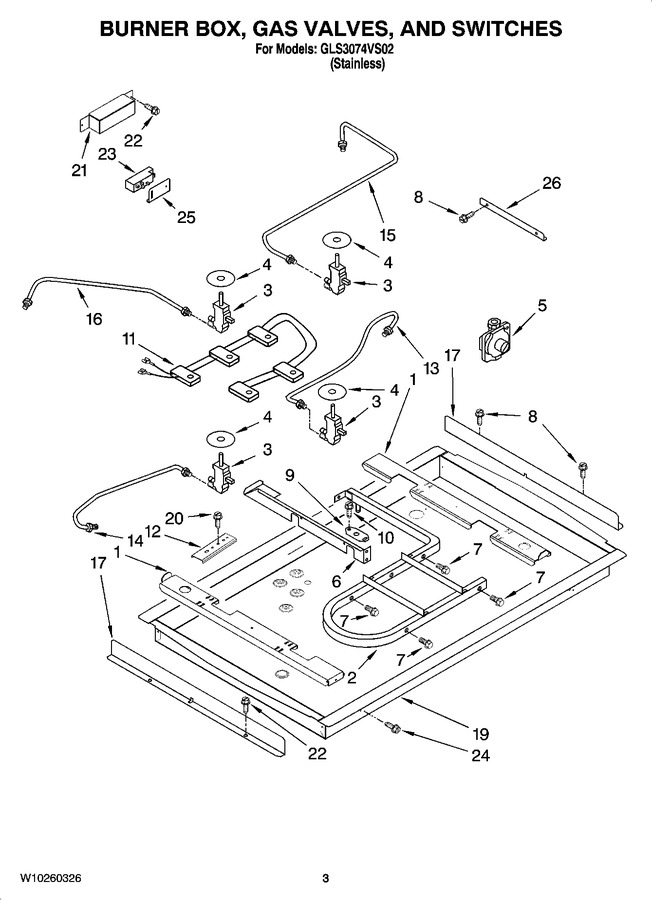

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8285796		Rail, Burner		Appelez-nous	-
2	8286069		Pipe, Manifold				$ 295.39
3	8286561		Valve, Gas Burner (orange)				$ 323.75
3	8286559		Valve, Gas Burner (white)				$ 123.31
3	WP4456817		Valve, Gas Burner (black)   (Replaces: 4456817)				$ 334.11
3	8286560		Valve, Gas Burner (yellow)				$ 123.39
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 96.38
5	W11170853		Regulator, Pressure   (Replaces: W10131956)				$ 330.26
6	W10203755		Rail, Center		Appelez-nous	-
7	487559		Bolt, Gas Valve		Appelez-nous	-
8	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 8.76
9	3192491		Bracket, Mainfold		Appelez-nous	-
10	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
11	WP4456905		Harness & Switches   (Replaces: 4456905)			Immediately	$ 196.48
12	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 92.86
13	8285793		Tubing, Gas Burner (rf)				$ 189.34
14	8285794		Tubing, Gas Burner (lf)				$ 209.71
15	8285792		Tubing, Gas Burner (rr)				$ 187.43
16	8285795		Tubing, Gas Burner (lr)				$ 184.36
17	3191462		Shield, Heat (2)		Appelez-nous	-
19	9760837		Burner Box		Appelez-nous	-
20	WP3400093		Screw   (Replaces: 3400093)				$ 7.55
21	W10203755		Shield, Heat		Appelez-nous	-
22	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
23	WPW10110491		Spark Module   (Replaces: W10110488)			Immediately	$ 322.41
24	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	4455837		Bracket, Spark Module				$ 81.78
26	9759145		Bracket, Main Support				$ 30.51
