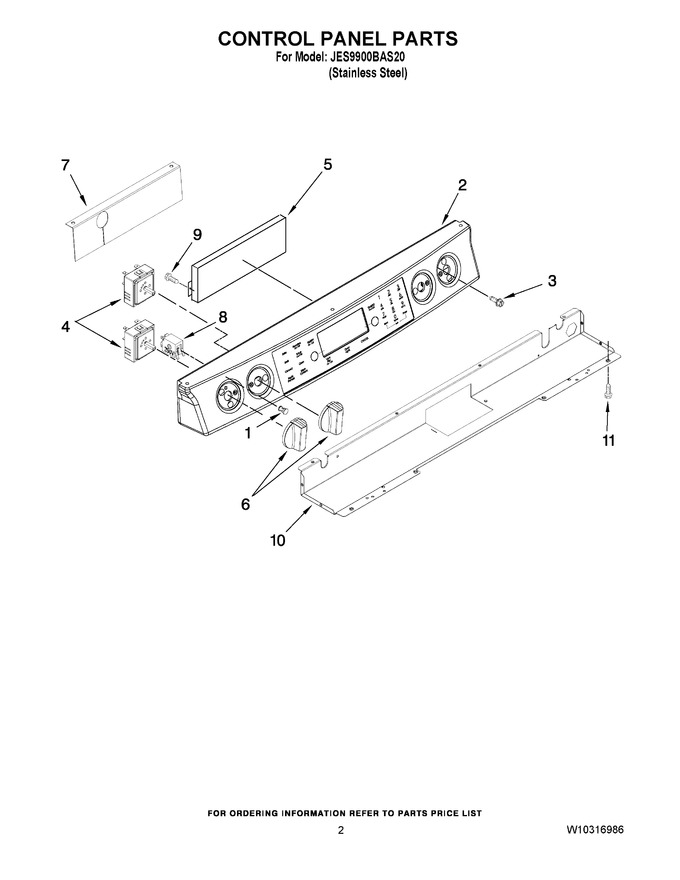

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001948 | Lens (Replaces: 7730P031-60) |
|
$ 13.32 | |||||
| 2 | W10206064 | Panel, Control |
|
$ 349.79 | |||||
| 3 | W11846982 | Screw, Switch (Replaces: 7101P676-60) |
|
$ 11.75 | |||||
| 4 | WP74008940 | Switch, Infinite (lf/rr) (Replaces: 7403P877-60) |
|
Immediately | $ 139.49 | ||||
| 4 | WP74010824 | Switch, Infinite (lr) (Replaces: 7450P011-60) |
|
Immediately | $ 112.13 | ||||
| 4 | WPW10185286 | Switch, Infinite (rf) (Replaces: W10185286) |
|
Immediately | $ 214.36 | ||||
| 5 | WP8507P234-60 | Control (Replaces: 8507P234-60) |
|
Immediately | $ 427.97 | ||||
| 6 | WP74011580 | Knob (lf/rr) (Replaces: 7737P393-60) |
|
Immediately | $ 34.00 | ||||
| 6 | WP74011579 | Knob (lr) (Replaces: 7737P392-60) |
|
Immediately | $ 35.62 | ||||
| 6 | WP74011550 | Knob (rf) (Replaces: 7737P394-60) |
|
Immediately | $ 45.65 | ||||
| 7 | 7003P150-60 | Shield, Insulator |
|
- | |||||
| 8 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.91 | ||||
| 9 | WP59002061 | Screw, Control (Replaces: 7101P077-60) |
|
$ 8.18 | |||||
| 10 | 3807F731-51 | Support, Control Panel |
|
$ 16.33 | |||||
| 11 | WP90767 | Screw, Support (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 |
