01 - Cooktop Parts

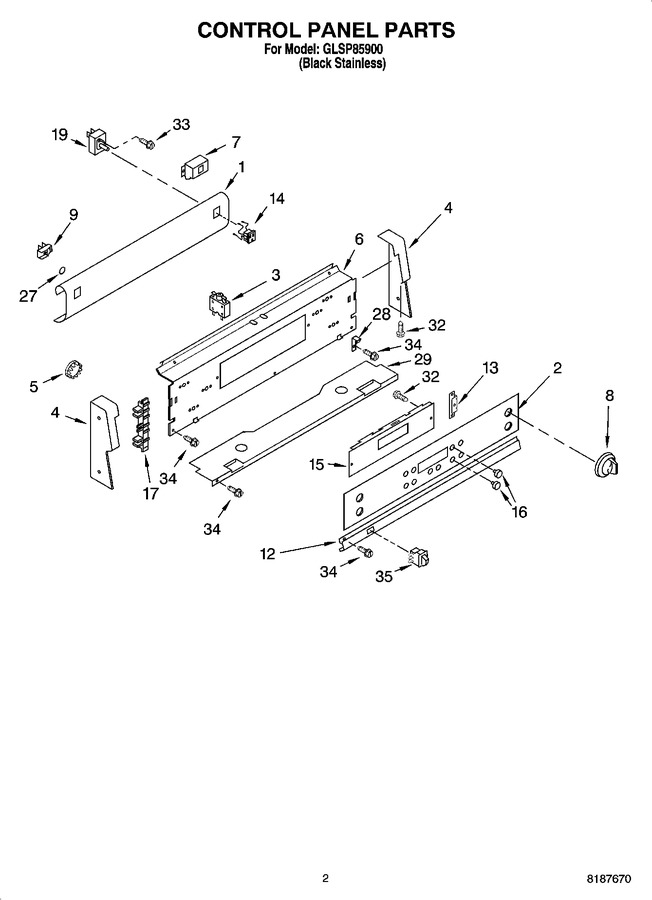

02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts
06 - Hidden Bake Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9755481PB | Lamp Cover |
|
- | |||||
| 2 | 9754239PS | Console-glass (control Panel) |
|
$ 554.76 | |||||
| 3 | 3191072 | Breaker, 15amp. (2) |
|
- | |||||
| 4 | 9752423FB | End Cap (right) |
|
- | |||||
| 4 | 9752422FB | End Cap (left) |
|
- | |||||
| 5 | 9780577 | Button Plug (8 Mm (2)) |
|
- | |||||
| 6 | 9752854 | Spacer |
|
- | |||||
| 6 | 9755511 | Panel, Support |
|
- | |||||
| 7 | 9755353PB | Box, Outlet |
|
- | |||||
| 8 | 9752405FB | Knobs, Control (4) |
|
$ 17.20 | |||||
| 9 | 313102 | Light, Indicator (2) (burners) |
|
$ 66.48 | |||||
| 12 | 9752441PB | Trim Strip |
|
- | |||||
| 13 | 9753304 | Bracket, Timer |
|
- | |||||
| 14 | 9755406FB | Outlet, Untimed (2) |
|
- | |||||
| 15 | 9754114 | Timer |
|
$ 583.20 | |||||
| 16 | 9781954FB | Knob, Timer (23) |
|
$ 14.66 | |||||
| 17 | 9753076FB | Insert, Plastic |
|
- | |||||
| 19 | 9750644 | Infinite Switch (1700w) |
|
$ 53.99 | |||||
| 19 | WP9755174 | Infinite Switch (dual, (2)) (Replaces: 9755174) |
|
Immediately | $ 66.11 | ||||
| 19 | WP9750643 | Infinite Switch (1400w) (Replaces: 9750643) |
|
Immediately | $ 145.12 | ||||
| 27 | WP9750343 | Lens, Indicator (Replaces: 9752589) |
|
Immediately | $ 6.00 | ||||
| 28 | 9753017 | Clip, Spring (2) |
|
- | |||||
| 29 | 9752439 | Base, Console |
|
- | |||||
| 32 | 9780265 | Screw |
|
- | |||||
| 33 | WP3400882 | Screw (Replaces: 3400816) |
|
Immediately | $ 7.55 | ||||
| 34 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 35 | 9750995 | Insulation, Control Panel |
|
- | |||||
| 35 | 9754017FB | Switch, Rocker (illuminated) |
|
- |
