Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10253462 Instructions, Installation Appelez-nous -
1 W10235525 Use & Care Guide Appelez-nous -
1 W10394690 Diagram, Wiring (english) Appelez-nous -
1 W10394698 Diagram, Wiring (french) Appelez-nous -
1 9762761 Brochure, Tips Safe Cooking (english) Appelez-nous -
1 W10065852 Brochure, Tips Safe Cooking (french) Appelez-nous -
2 W10235919 Cooktop (black) Special Order $ 509.62

3 W11171119 Element (lf & Rr) (1200w)   (Replaces: 8273994) In-Stock Immediately $ 182.23

4 WP7101P498-60 Screw   (Replaces: 7101P498-60) Special Order $ 7.86

5 8010P152-60 Spacer, Rubber Appelez-nous -
6 WPW10275049 Element (lr) (2500/1200w)   (Replaces: W10275049) In-Stock Immediately $ 314.23

7 8004P093-60 Support,element Special Order $ 10.61

8 7772P040-60 Grill, Air Special Order $ 258.25

9 8255P412-60 Block, Element Support Special Order $ 31.52

10 WPW10423408 Element (rf) (3000/1400w)   (Replaces: W10423408) In-Stock Immediately $ 338.16


    View Diagram in Separate Window     Print Icon   Print Part List

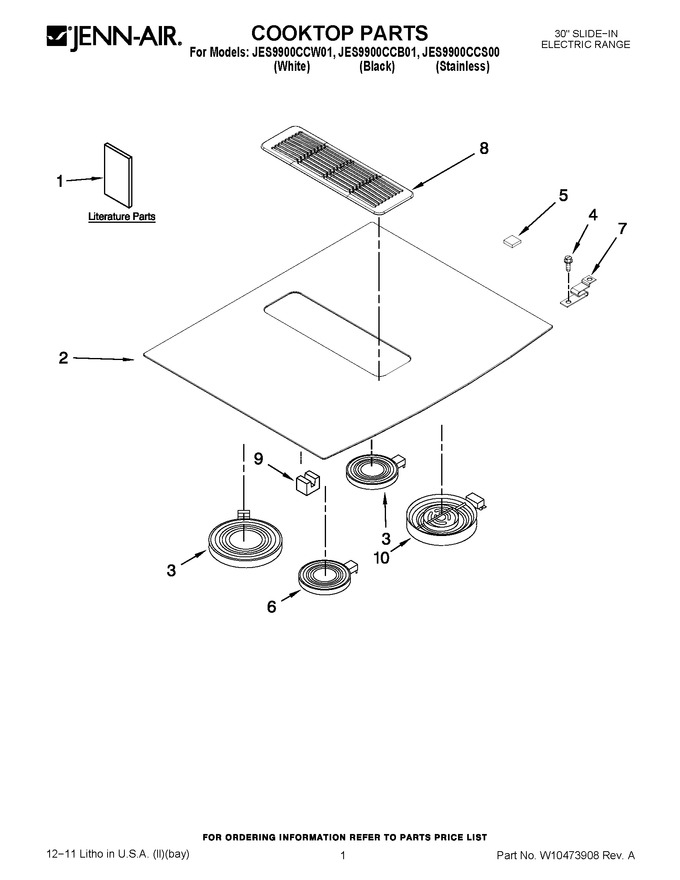

Diagram for JES9900CCS00
