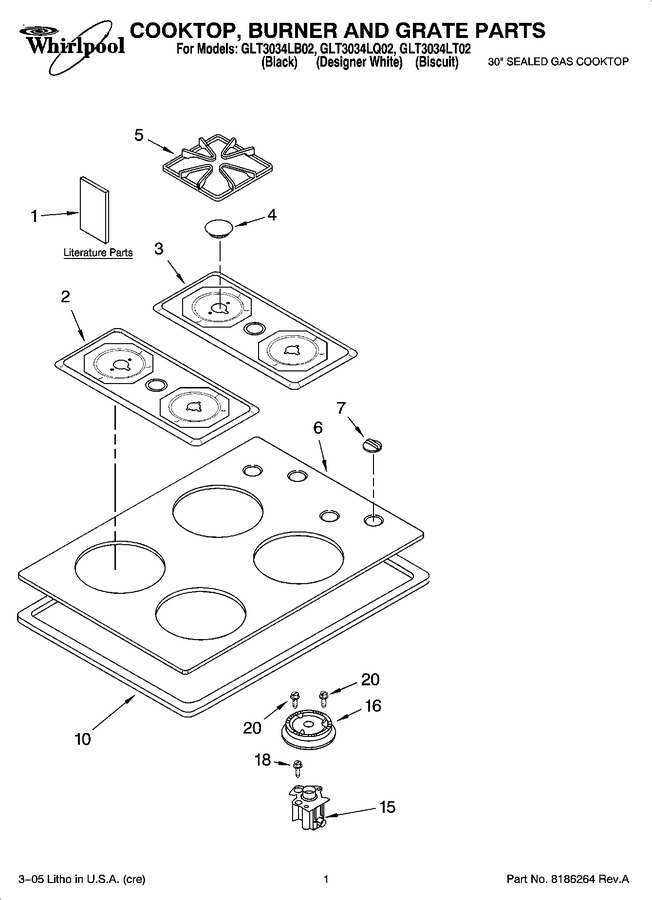

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9759440 | L.p. Conversion Instructions |
|
- | |||||
| 1 | 4455834 | Installation Instructions |
|
- | |||||
| 1 | 3192098 | Wiring Diagram |
|
- | |||||
| 1 | 8285326 | Use & Care Guide |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 2 | 3191250 | Bowl, Left (white) |
|
- | |||||
| 2 | 3191249 | Bowl, Left (black) |
|
- | |||||
| 2 | 3192734 | Bowl, Left (biscuit) |
|
- | |||||
| 3 | 3191306 | Bowl, Right (white) |
|
- | |||||
| 3 | 3191305 | Bowl, Right (black) |
|
- | |||||
| 3 | N/A | 12.5k (2) |
|
- | |||||
| 3 | 3192733 | Bowl, Right (biscuit) |
|
- | |||||
| 3 | WP3191898 | Cap, Burner 6k (rf, Lr) (black) (Replaces: 3191898) |
|
$ 71.00 | |||||
| 3 | 3191899 | Gray |
|
$ 31.21 | |||||
| 3 | WP8273343 | Cap, Burner 6k (rf, Lr) Espresso (Replaces: 8273343) |
|
$ 90.90 | |||||
| 3 | WP3191901 | Cap, Burner (black) (Replaces: 3191901) |
|
$ 128.91 | |||||
| 3 | WP3191903 | Gray (Replaces: 3191903) |
|
$ 191.50 | |||||
| 3 | WP8273344 | Espresso (Replaces: 8273344) |
|
$ 102.05 | |||||
| 3 | WP3191904 | Cap, Burner 12.5k (rr) Black (Replaces: 3191904) |
|
$ 184.16 | |||||
| 3 | WP3191905 | Gray (Replaces: 3191905) |
|
$ 90.98 | |||||
| 3 | WP8273345 | Cap, Burner 12.5k (rr) (espresso) (Replaces: 8273345) |
|
$ 168.46 | |||||
| 5 | WPW10447925 | Grate (4) (black) (Replaces: 8522851) |
|
Immediately | $ 299.55 | ||||
| 5 | 8522853 | Grate (4) (espresso) |
|
$ 0.01 | |||||
| 5 | WPW10447925 | Grate (4) (gray) (Replaces: 8522850) |
|
Immediately | $ 299.55 | ||||
| 6 | 8285075 | Cooktop, Glass (white) |
|
- | |||||
| 6 | 8285076 | Cooktop, Glass (biscuit) |
|
- | |||||
| 6 | 8285074 | Cooktop, Glass (black) |
|
- | |||||
| 7 | 8285073 | Knob, Control (4) (biscuit) |
|
- | |||||
| 7 | 8285068 | Knob, Control (4) (black) |
|
$ 39.24 | |||||
| 7 | 8285072 | Knob, Control (4) (white) |
|
- | |||||
| 10 | 3191932 | Seal, Foam |
|
- | |||||
| 15 | WPW10155785 | Holder, Orifice (includes 13 & 14) (lf 12k) (Replaces: 4456619) |
|
$ 119.50 | |||||
| 15 | WPW10155784 | Holder, Orifice (includes 13 & 14) (lr, Rr 9k) (Replaces: 4456620) |
|
Immediately | $ 114.74 | ||||
| 15 | WPW10128448 | Holder, Orifice (includes 13 & 14) (rf 6k) (Replaces: 4456621) |
|
Immediately | $ 117.30 | ||||
| 16 | 4455979 | Head, Burner (rf) |
|
$ 28.52 | |||||
| 16 | WP4455981 | Head, Burner (lf) (Replaces: 4455981) |
|
Immediately | $ 91.90 | ||||
| 16 | WP4455980 | Head, Burner (lr, Rr) (Replaces: 4455980) |
|
$ 65.21 | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 20 | WP3400806 | Screw (2) (Replaces: 3400806) |
|
$ 8.10 | |||||
| 20 | 4456627 | Harness, Wire (ignitor 28``) |
|
$ 220.65 | |||||
| 20 | 4456626 | Harness, Wire Ignitor 15`` |
|
$ 77.40 | |||||
| 20 | N/A | Harness, Wire |
|
- | |||||
| 20 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 8.56 | ||||
| 20 | WP4449809 | Screw (4) (Replaces: 4449809) |
|
Immediately | $ 7.55 |
