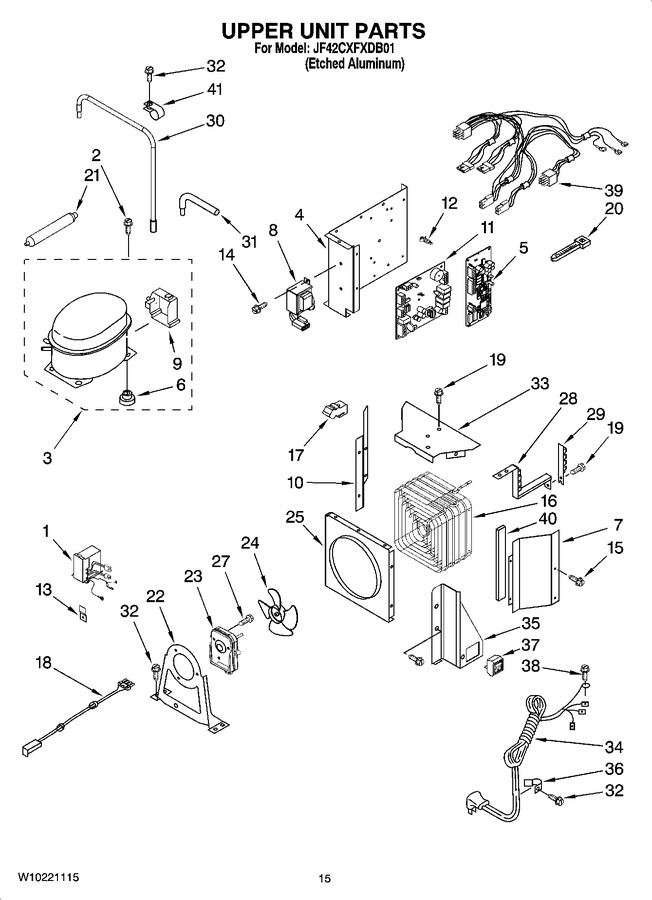

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10629033 | Inverter Box (Replaces: W10133449) |
|
Immediately | $ 443.45 | ||||
| 2 | 876811 | Screw, Compressor Mounting (4) (Replaces: 489373) |
|
$ 7.79 | |||||
| 3 | W10841139 | Compressor (includes Items 6, 9 & 21) (also Order 876765 Tube Kit) (Replaces: 2302967) |
|
Immediately | $ 505.51 | ||||
| 4 | 2307683 | Housing, Control Board |
|
- | |||||
| 5 | WP2303091 | Control Board (Replaces: 2303091) |
|
$ 365.26 | |||||
| 6 | 876811 | Grommet, Mounting (Replaces: 1100826) |
|
$ 7.79 | |||||
| 7 | 2309002 | Support, Condenser (right) |
|
- | |||||
| 8 | 2303033 | Transformer |
|
$ 168.74 | |||||
| 9 | 2215676 | Terminal Cover |
|
$ 94.36 | |||||
| 10 | 2309001 | Support, Condenser (left) |
|
- | |||||
| 11 | W10219462 | Control Board (Replaces: W10121049) |
|
$ 342.77 | |||||
| 12 | WP2203075 | Spacer (9) (Replaces: 2203075) |
|
Immediately | $ 18.81 | ||||
| 13 | 2256328 | Bracket, Inverter Box |
|
- | |||||
| 14 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 15 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 16 | 2307998 | Condenser |
|
$ 510.05 | |||||
| 17 | 2309431 | Grommet (2) |
|
$ 14.23 | |||||
| 18 | 2310207 | Wire, Jumper |
|
- | |||||
| 19 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 20 | WPW10339879 | Wire Tie (Replaces: 2155774) |
|
$ 8.30 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10175593) |
|
Immediately | $ 30.78 | ||||
| 22 | WPW10136614 | Bracket, Fan Motor (Replaces: W10136614) |
|
$ 83.07 | |||||
| 23 | W11578915 | Motor, Fan (Replaces: 2188875) |
|
Immediately | $ 71.42 | ||||
| 24 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 99.82 | |||||
| 25 | 2003169 | Orifice, Fan |
|
- | |||||
| 27 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 28 | 2317031 | Bracket, Vibration Condenser |
|
- | |||||
| 29 | 2317030 | Arm, Vibration Condenser |
|
- | |||||
| 30 | 2307566 | Tube, Transition (condenser/drier) |
|
$ 17.84 | |||||
| 31 | W10528578 | Tube, Process (Replaces: 2194319) |
|
$ 39.82 | |||||
| 32 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 33 | 2309000 | Cover, Condenser |
|
- | |||||
| 34 | WP2310251 | Service Cord (Replaces: 2310251) |
|
$ 88.94 | |||||
| 35 | 2307684 | Bracket, Mounting (power Switch) |
|
- | |||||
| 36 | 549193 | Clamp,cord |
|
$ 14.06 | |||||
| 37 | WP2266802 | Switch, Power Disconnect (Replaces: 2266802) |
|
$ 109.08 | |||||
| 38 | 00487294 | Screw, Ground (Replaces: 487294) |
|
$ 175.09 | |||||
| 39 | W10123227 | Wiring Harness, Unit Compartment |
|
- | |||||
| 40 | 2309432 | Gasket, Condenser |
|
- | |||||
| 41 | 488937 | Clamp, Tube |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access(3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 |
