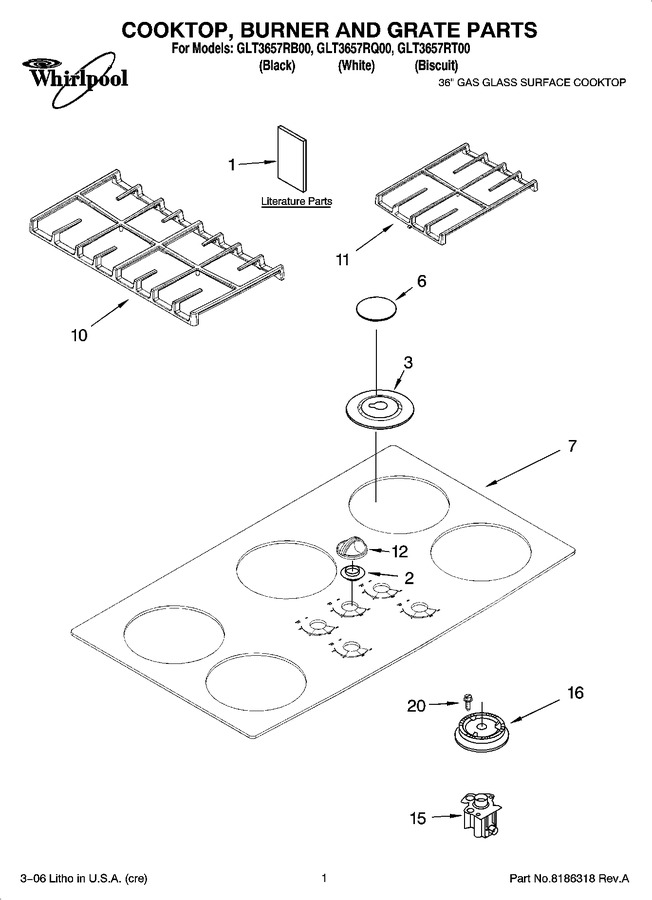

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286304 | Installation Instructions |
|
- | |||||
| 1 | 8286313 | Use & Care Guide |
|
- | |||||
| 1 | 3192099 | Wiring Diagram |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 1 | 8286314 | Lp Conversion Instructions |
|
- | |||||
| 2 | WP3180081 | Grommet, Glass (white) (Replaces: 3180081) |
|
$ 8.63 | |||||
| 2 | W10854242 | Grommet, Glass (black) (Replaces: 3180079) |
|
Immediately | $ 8.84 | ||||
| 2 | 3191817 | Grommet, Glass (biscuit) |
|
- | |||||
| 3 | 3191303 | Bowl, Burner (lf) (rf) (center) (white) |
|
- | |||||
| 3 | 3191302 | Bowl, Burner (lf) (rf) (center) (black) |
|
- | |||||
| 3 | 3191308 | Bowl, Burner (rr) (lr) (white) |
|
- | |||||
| 3 | 3191307 | Bowl, Burner (rr) (lr) (black) |
|
- | |||||
| 3 | 3191818 | Bowl, Burner (lf) (rf) (center) (biscuit) |
|
- | |||||
| 3 | 3191819 | Bowl, Burner (rr) (lr) (biscuit) |
|
- | |||||
| 6 | WP8286153CG | Cap, Burner (rr) (lr) (cumberland Gray) (Replaces: 8286153CG) |
|
$ 87.56 | |||||
| 6 | WP8286153CB | Cap, Burner (rr) (lr) (black) (Replaces: 8286153BL) |
|
$ 72.29 | |||||
| 6 | 8286153EP | Cap, Burner (rr) (lr) (espresso) |
|
- | |||||
| 6 | 8286155EP | Cap, Burner (rf) (lf) (espresso) |
|
- | |||||
| 6 | WP8286155CG | Cap, Burner (rf) (lf) (cumberland Gray) (Replaces: 8286155CG) |
|
$ 106.63 | |||||
| 6 | WP8286155CB | Cap, Burner (rf) (lf) (black) (Replaces: 8286155BL) |
|
$ 122.15 | |||||
| 6 | 8286154EP | Cap, Burner (center) (espresso) |
|
- | |||||
| 6 | WP8286154CG | Cap, Burner (center) (cumberland Gray) (Replaces: 8286154CG) |
|
$ 101.47 | |||||
| 6 | WP8286154CB | Cap, Burner (center) (black) (Replaces: 8286154BL) |
|
$ 90.93 | |||||
| 7 | 8286267 | Cooktop, Glass (biscuit) |
|
- | |||||
| 7 | 8286264 | Cooktop, Glass (white) |
|
- | |||||
| 7 | 8286249 | Cooktop, Glass (black) |
|
- | |||||
| 10 | 8285892EP | Grate, Burner L.hand (espresso) |
|
- | |||||
| 10 | 8285894BL | Grate, Burner R.hand (black) |
|
- | |||||
| 10 | 8285892CG | Grate, Burner L.hand (cumberland Gray) |
|
- | |||||
| 10 | 8285892BL | Grate, Burner L.hand (black) |
|
- | |||||
| 10 | 8285894EP | Grate, Burner R.hand (espresso) |
|
- | |||||
| 10 | 8285894CG | Grate, Burner R.hand (cumberland Gray) |
|
- | |||||
| 11 | 8285891EP | Grate, Center (espresso) |
|
- | |||||
| 11 | 8285891CG | Grate, Center (cumberland Gray) |
|
- | |||||
| 11 | 8285891BL | Grate, Center (black) |
|
- | |||||
| 12 | 8286058BT | Knob, Control (5) (biscuit) |
|
- | |||||
| 12 | WP8286058BL | Knob, Control (5) (black) (Replaces: 8286058BL) |
|
Immediately | $ 25.71 | ||||
| 12 | 8286058WH | Knob, Control (5) (white) |
|
$ 24.61 | |||||
| 15 | WPW10128448 | Holder, Orifice (auxi) (Replaces: 8286179) |
|
Immediately | $ 117.30 | ||||
| 15 | WPW10128450 | Holder, Orifice (semi Rapid) (Replaces: 8286178) |
|
$ 124.35 | |||||
| 15 | WPW10128451 | Holder, Orifice (rapide) (Replaces: 8286180) |
|
$ 116.43 | |||||
| 16 | WPW10406797 | Head, Burner (lf) (rf) (Replaces: 8286182) |
|
$ 92.91 | |||||
| 16 | WPW10406283 | Head, Burner (center) (Replaces: 8286184) |
|
$ 78.02 | |||||
| 16 | WPW10406243 | Head, Burner (rr) (lr) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 20 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 8.56 |
