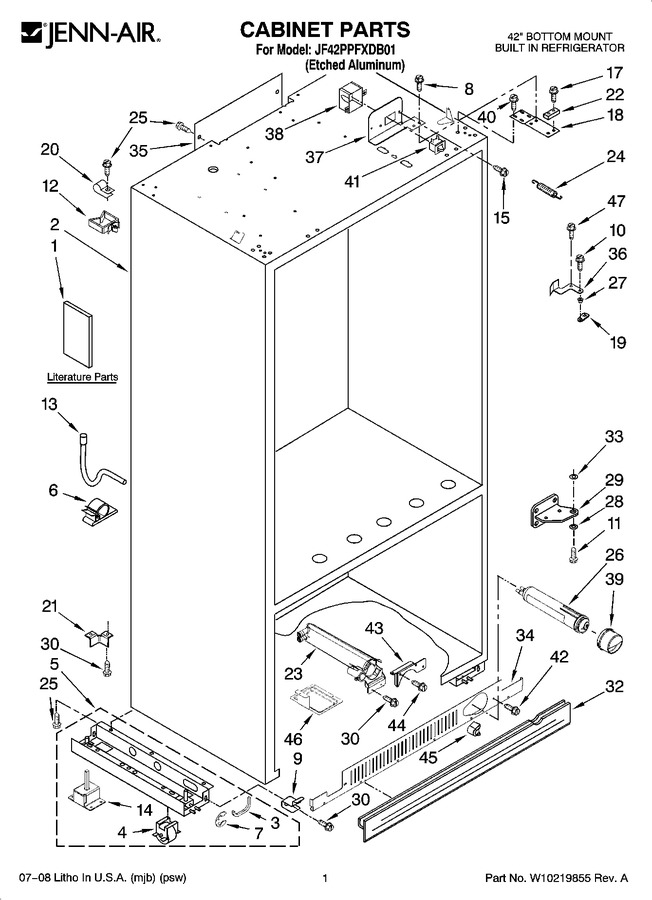

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10183787		Use & Care Guide		Appelez-nous	-
1	W10205646		Energy Guide		Appelez-nous	-
1	W10197559		Service & Wiring Sheet		Appelez-nous	-
1	2317849		Main Control Service Sheet		Appelez-nous	-
1	2317840		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10183782		Installation Instructions		Appelez-nous	-
3	2307584		Grommet, Crossover Tube				$ 23.40
4	WPW10138054		Roller, Front & Rear (4)   (Replaces: W10138054)				$ 45.34
5	W10860448		Support, Leveler Assembly (right Side)   (Replaces: W10163493)			Immediately	$ 383.00
5	W10860229		Support, Leveler Assembly (left Side)   (Replaces: W10163491)				$ 381.83
6	2004514		Clip, Conduit		Appelez-nous	-
7	2006841		Ring, Retainer				$ 92.66
8	WP8281164		Screw   (Replaces: 8281164)				$ 11.33
9	W10839844		Mounting Bracket, Grille   (Replaces: 2307640)				$ 43.26
10	W11177574		Screw   (Replaces: W10004850)				$ 14.84
11	WP488234		Screw 8-32 X 1/4   (Replaces: 488234)				$ 7.08
12	W10129069		Clip (6)		Appelez-nous	-
13	2314064		Tube, Drain				$ 93.88
14	2005032		Leveler Assy.			Immediately	$ 200.07
15	WP965173		Screw, 8-18 X 3/8   (Replaces: 487415)			Immediately	$ 11.87
17	W11227370		Screw, Door Stop   (Replaces: W10005070)			Immediately	$ 14.91
18	W11218690		Hinge, Door Refrigerator Top   (Replaces: 2316759)			Immediately	$ 78.29
19	WP2320509		Cam-closer, Door   (Replaces: 2320509)				$ 29.95
20	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 11.54
21	2006617		Bracket, Support Door		Appelez-nous	-
22	W11403572		Stop, Door   (Replaces: 2316758)			Immediately	$ 70.48
23	WPW10121140		Housing, Water Filter   (Replaces: 2260526)			Immediately	$ 171.96
24	WP2004517		Spring, Door Closure   (Replaces: 2004517)			Immediately	$ 95.43
25	W11624204		Screw   (Replaces: 486194)				$ 14.72
26	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
27	WP2316859		Bushing-arm, Extension   (Replaces: 2316859)			Immediately	$ 54.20
28	WP2004994		Bushing, Hinge (2) (lock-adjustable)   (Replaces: 2004994)			Immediately	$ 8.39
29	W10337505		Hinge, Bottom Refrigerator Door   (Replaces: 2302889)			Immediately	$ 141.32
30	WP489464		Screw, 8-18 X 1/2   (Replaces: 489464)			Immediately	$ 8.38
32	2209025B		Skirt, Grille (bottom)				$ 48.90
33	2314023		Bushing, Hinge (2)				$ 48.67
34	2325188B		Grille Base, Front				$ 70.00
35	2215612		Cover, Air Duct		Appelez-nous	-
36	W10847927		Arm, Extension (right)   (Replaces: 2266882)				$ 99.91
36	W11298172		Arm, Extension (left)   (Replaces: 2266881)			Immediately	$ 87.43
37	W10741111		Bracket, Switch (right)   (Replaces: 2221097)				$ 67.37
37	2221096		Bracket, Switch (left)				$ 97.86
38	2215938		Cover, Switch				$ 94.78
39	WP2260518B		Cap, Water Filter   (Replaces: 2260518B)			Immediately	$ 28.26
40	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 14.78
41	W11384469		Switch, Rocker Arm (2)   (Replaces: 1118894)			Immediately	$ 39.09
42	WP489464		Screw, 8-18 X 1/2   (Replaces: W10005050)			Immediately	$ 8.38
43	W11755873		Bracket, Mounting (filter)   (Replaces: 2318190)				$ 80.33
44	WP8281163		Screw, 8-16 X 1/2   (Replaces: 8281163)			Immediately	$ 10.70
45	WP2260503B		Button, Filter   (Replaces: 2260503B)				$ 76.42
46	2318189		Tray, Drip Filter				$ 148.73
47	WP8533980		Screw   (Replaces: 8533980)			Immediately	$ 86.64

    View Diagram in Separate Window       Print Part List
