Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10162618 Top Grille Assembly Appelez-nous -
2 W10161693 Cover, Unit Appelez-nous -
3 2256466 Back Panel Special Order $ 311.64

4 2307682 Front, Unit Cover Appelez-nous -
5 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 10.72

6 2187946 Wire Assembly, Light Switch Special Order $ 93.06

7 W10159580 Nameplate Appelez-nous -
8 489348 Clamp Appelez-nous -
9 WP489399 Screw (5)   (Replaces: 489399) Special Order $ 6.95

10 2215910 Grommet Special Order $ 89.83


    View Diagram in Separate Window     Print Icon   Print Part List

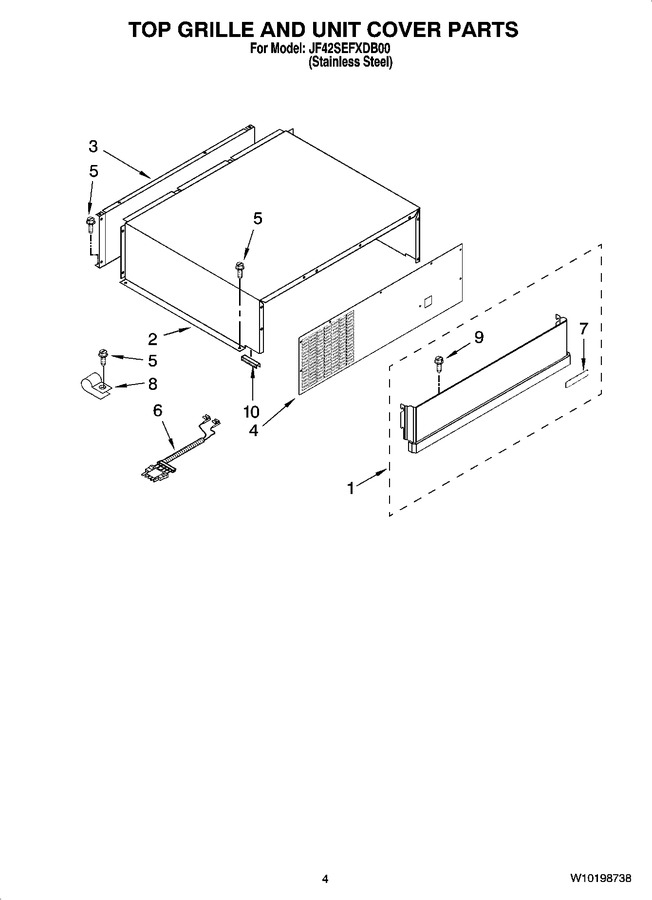

Diagram for JF42SEFXDB00
