SELECT A DIAGRAM

01 - Cooktop, Burner And Grate Parts

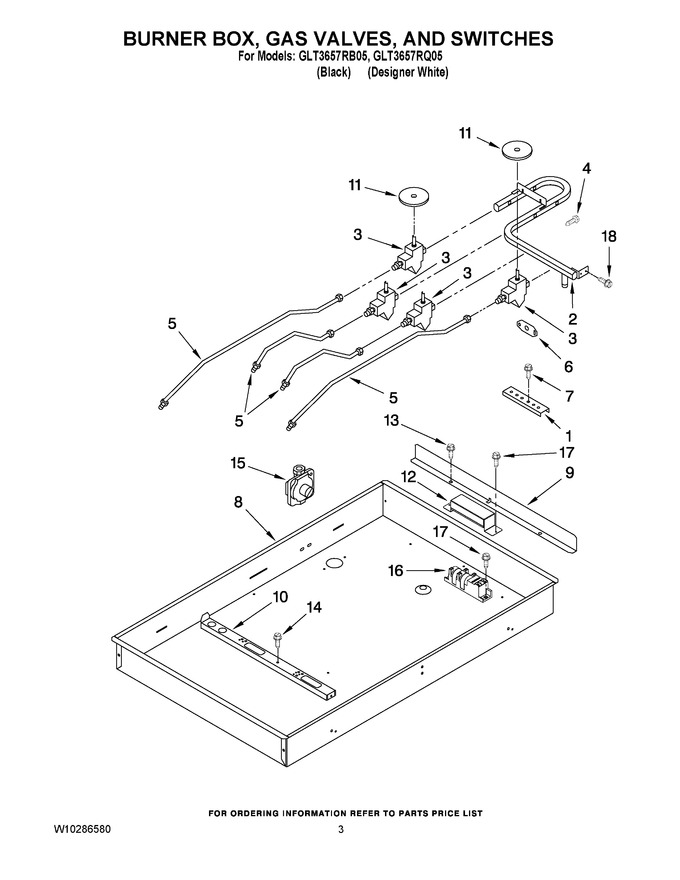

02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8186533		Bracket, (2) Cooktop Mounting   (Replaces: 4455917)				$ 92.86
2	8285751		Pipe, Manifold				$ 357.06
3	WP4456817		Valve, Burner (large (2))   (Replaces: 4456817)				$ 334.11
3	8286559		Valve, Burner (auxi (white))				$ 123.31
3	8286560		Valve, Burner (rapid (purple))				$ 123.39
4	12002277		Bolt, Gas Valve   (Replaces: 7101P640-60)				$ 318.24
5	8286405		Tubing, Burner (rr)		Appelez-nous	-
5	8286253		Tubing, Burner (lr)		Appelez-nous	-
5	8286404		Tubing, Burner (ctr)		Appelez-nous	-
5	8286406		Tubing, Burner (rf)		Appelez-nous	-
5	8286403		Tubing, Burner (lf)		Appelez-nous	-
6	3192491		Bracket, Manifold		Appelez-nous	-
7	WP3400093		Screw   (Replaces: 3400093)				$ 7.55
8	8286248		Box, Burner		Appelez-nous	-
9	3191462		Shield, Heat		Appelez-nous	-
10	W10203756		Rail (burner)		Appelez-nous	-
10	W10203755		Rail, Center		Appelez-nous	-
11	WP3188425		Seal, (4) Switch Cover   (Replaces: 3191387)				$ 96.38
12	8285789		Shield, Heat   (Replaces: W10203754)				$ 179.71
13	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
14	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
15	W11170853		Regulator, Pressure   (Replaces: W10131956)				$ 330.26
16	WPW10110486		Spark Module   (Replaces: W10110489)				$ 332.88
17	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 8.76
18	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
NI	WP8286320		Spud Kit   (Replaces: 8286320)				$ 135.07
NI	W10392007		Power Cord   (Replaces: 9763116)				$ 112.29
NI	8285402		Harness, Ground Jumper		Appelez-nous	-
NI	WP4456901		Harness, Switch   (Replaces: 4456901)				$ 253.19

    View Diagram in Separate Window       Print Part List
