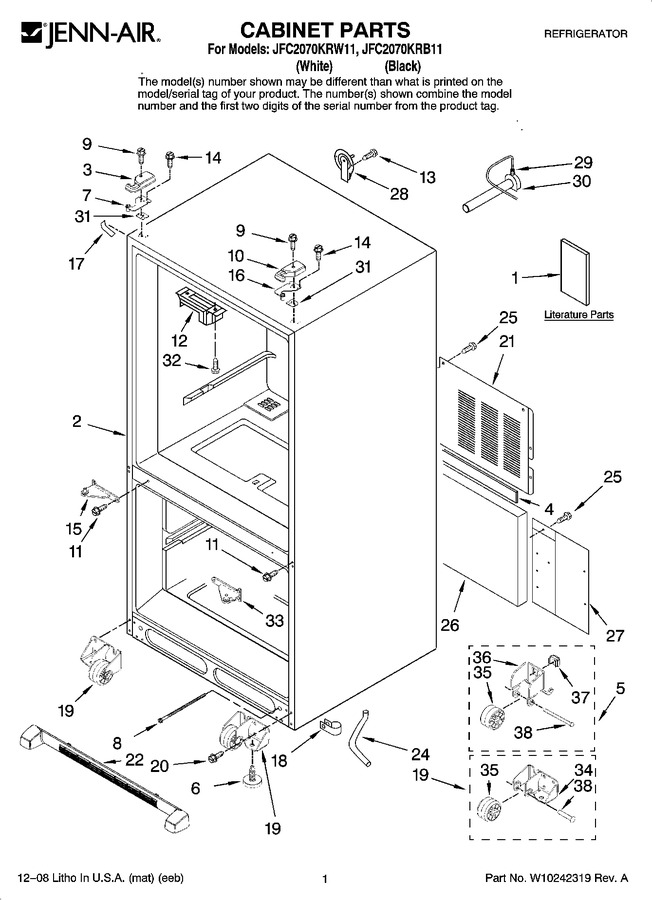

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67007082		Energy Guide		Appelez-nous	-
1	12827952		Tech Sheet		Appelez-nous	-
1	W10137647		Use & Care Guide		Appelez-nous	-
3	12684201W		Cover, Left Hinge (white)		Appelez-nous	-
3	12684201B		Cover, Left Hinge (black)		Appelez-nous	-
4	B5759649		Gasket		Appelez-nous	-
5	67006118		Roller Assy. (2)		Appelez-nous	-
6	WPW10141622		Foot Brake   (Replaces: W10141622)			Immediately	$ 7.85
7	WP12566607ED		Hinge, Left Top   (Replaces: 12566605ED)				$ 86.75
8	67006697		Bolt, Adjusting (rear)				$ 12.88
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	12684202B		Cover, Right Hinge (black)		Appelez-nous	-
10	8208261		Cover, Right Hinge (white)		Appelez-nous	-
11	WP489349		Screw   (Replaces: 67005822)			Immediately	$ 7.88
12	WP67003405		Block, Pivot   (Replaces: 67003405)			Immediately	$ 7.82
13	12992301		Screw   (Replaces: 67006433)				$ 7.32
14	WP489349		Screw (3)   (Replaces: 67006303)			Immediately	$ 7.88
15	W10918113		Hinge, Center (lt) (white)   (Replaces: 67006277)				$ 93.26
15	67006442		Hinge, Center (lt) (black)				$ 115.02
16	WP12566606ED		Hinge, Right Top   (Replaces: 12566604ED)			Immediately	$ 44.89
17	67003484		Cover, Corner (white)				$ 20.40
17	67003485		Cover, Corner (black)			Immediately	$ 21.09
18	67001067		Clip, Drain				$ 9.20
19	W11820445		Roller Assembly (front) (left)   (Replaces: W10130459)			Immediately	$ 35.57
19	W11820444		Roller Assembly (front) (right)   (Replaces: W10130460)			Immediately	$ 35.57
20	67006564		Screw (4)			Immediately	$ 7.69
21	67006101		Cover, Unit				$ 76.68
22	W10131134		Grille, Toe (black)				$ 53.25
22	W10131133		Grille, Toe (white)		Appelez-nous	-
24	67001066		Tube, Drain				$ 55.82
25	67006425		Screw			Immediately	$ 6.95
26	67003796		Fiber, Acoustic				$ 19.27
27	67004098		Cover, Water Valve		Appelez-nous	-
28	12726003		Cover, Water Line   (Replaces: 67003331)				$ 18.28
29	WPM0114003		Clip   (Replaces: M0114003)				$ 11.05
30	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 114.15
31	12579702		Shim, Top Hinge		Appelez-nous	-
32	WP7101P126-60		Screw, Block   (Replaces: 67006669)			Immediately	$ 7.61
33	67006379		Hinge, Center (rt) (white)		Appelez-nous	-
33	W10918164		Hinge, Center (rt) (black)   (Replaces: 67006443)				$ 86.64
34	W10137533		Bracket, Roller (front) (right)		Appelez-nous	-
34	W10137532		Bracket, Roller (front) (left)		Appelez-nous	-
35	WP10450603		Roller   (Replaces: 67005127)				$ 7.88
36	12456801V		Bracket, Roller (rear)   (Replaces: 12456801)				$ 50.57
37	M0286708		Nut, Speed				$ 45.57
38	M1205302		Pin				$ 5.85
