Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10185588 Door, Freezer (stainless) Appelez-nous -
2 WP12850909 Handle, Door (jfc2089hes13)   (Replaces: 12850909) Special Order $ 278.06

2 WP12859110 Handle, Door (jfc2089hep13)   (Replaces: 12859110) Special Order $ 311.98

3 W10436252 Gasket, Door (black)   (Replaces: W10131754) In-Stock Immediately $ 345.03

4 67006109 Mount, Handle Appelez-nous -
5 WPW10133608 Screw, Mount   (Replaces: W10133608) Special Order $ 8.30

6 67004838 Plug, Button (2) (black) Special Order $ 10.68


    View Diagram in Separate Window     Print Icon   Print Part List

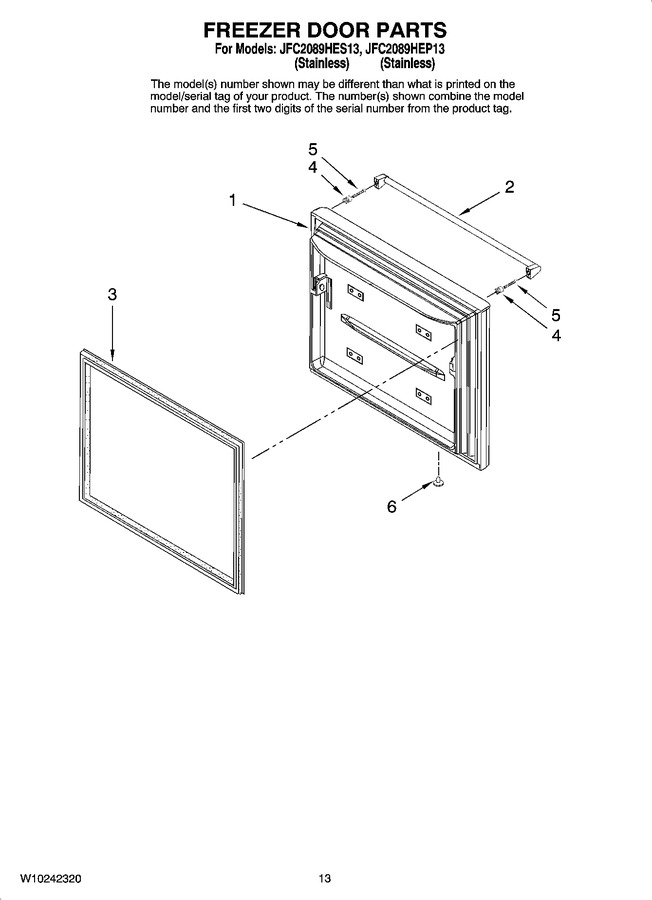

Diagram for JFC2089HES13
