Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

1 4450377 Cover, Top Appelez-nous -
1 WP4450118 Nut   (Replaces: 4450118) Special Order $ 7.95

2 4448935 Baffle, Blower Appelez-nous -
3 4450920 Blower Appelez-nous -
3 489392 Screw   (Replaces: 1180485) Special Order $ 13.35

4 4450027 Bracket, Duct Appelez-nous -
5 WP9760588 Transformer, (lights)   (Replaces: 6610122) Special Order $ 263.41

5 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

6 4450366 Exhaust Duct Appelez-nous -
7 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

7 4451789 Plate, Mounting Appelez-nous -
8 WP112432 Nut   (Replaces: 112432) Special Order $ 7.96

8 4449964 Grommet Appelez-nous -
8 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

9 WP4449154 Screw   (Replaces: 4449154) Special Order $ 7.56

9 4454949 Holder, Fuse Special Order $ 90.70

10 WPW10017410 Fuse   (Replaces: 4454976) In-Stock Immediately $ 21.17

11 WP8203546 Block, Terminal   (Replaces: 4449868) In-Stock Immediately $ 30.13

11 W11684512 Screw   (Replaces: 3400080) Special Order $ 14.10

12 4452559 Side, Combo Appelez-nous -
12 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

12 WP4450038 Screw   (Replaces: 4450038) Special Order $ 7.60

14 W10755214 Side, Control Top (right)   (Replaces: 4451597) Appelez-nous -
14 W10790240 Side, Control Top (left)   (Replaces: 4451598) Special Order $ 74.68

14 WP4449809 Side, Control Top (screw)   (Replaces: 4449809) In-Stock Immediately $ 7.19

15 4452244 Back, Control Appelez-nous -
15 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

16 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

16 4450550 Cover, Top Rear Special Order $ 32.95

17 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

17 4448664 Clamp Special Order $ 20.39

18 4452366 Cover, Top Front Appelez-nous -
18 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

19 8300642 Transformer, Control Appelez-nous -
20 WP8302143 Suppressor   (Replaces: 8302143) Special Order $ 120.94

21 4452247 Plate, Cover Appelez-nous -
285006 Spray Paint (black) 13 Oz.   (Replaces: 830864) Special Order $ 57.04

WP482338 Sealer, Silastic (3 Oz.)   (Replaces: 482338) In-Stock Immediately $ 63.51

261900 Paint, Spray (citrine White) Special Order $ 57.04

591014 Adhesive Loctite (1/3 Oz.) Appelez-nous -
N/A Wiring Harness Parts Appelez-nous -
WPW10339879 Tie, Cable   (Replaces: 4454835) Special Order $ 7.90

4452222 Spacer, Harness Appelez-nous -
16515 Clip, Harness   (Replaces: 313438) Special Order $ 19.55

4450950 Conduit, Combo Appelez-nous -
WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

4450800 Screw Special Order $ 12.83

242828 Wire (12 Ga. 150 C Black) Appelez-nous -
4450831 Ground (m/w) Special Order $ 7.43

8301900 Harness, Main Appelez-nous -
8301909 Harness, Latch Special Order $ 135.35

WP4448950 Screw, Installation   (Replaces: 4448950) Special Order $ 7.56

814381 Kit, Hinge Pin Special Order $ 8.59

4378951 Filler Kit (wh) Appelez-nous -
4378950 Filler Kit (bl) Appelez-nous -
242820 Wire (14 Ga. 150 C Black) Appelez-nous -
72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
242832 Wire (14 Ga. 200 C Yellow) Appelez-nous -
242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
242826 Wire (14 Ga. 150 C White) Appelez-nous -
242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

242825 Wire (14 Ga. 150 C Red) Appelez-nous -
242829 Wire (12 Ga. 150 C Red) Appelez-nous -
242823 Wire (14 Ga. 150 C Green) Appelez-nous -
242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
WP261869 Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869) Special Order $ 26.50

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 38.21


    View Diagram in Separate Window     Print Icon   Print Part List

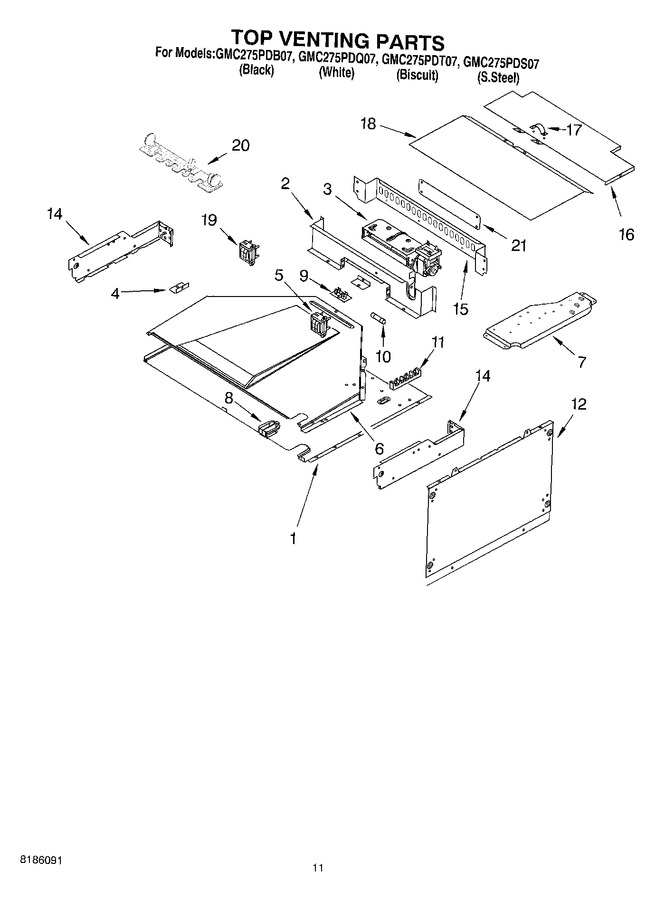

Diagram for GMC275PDQ07
