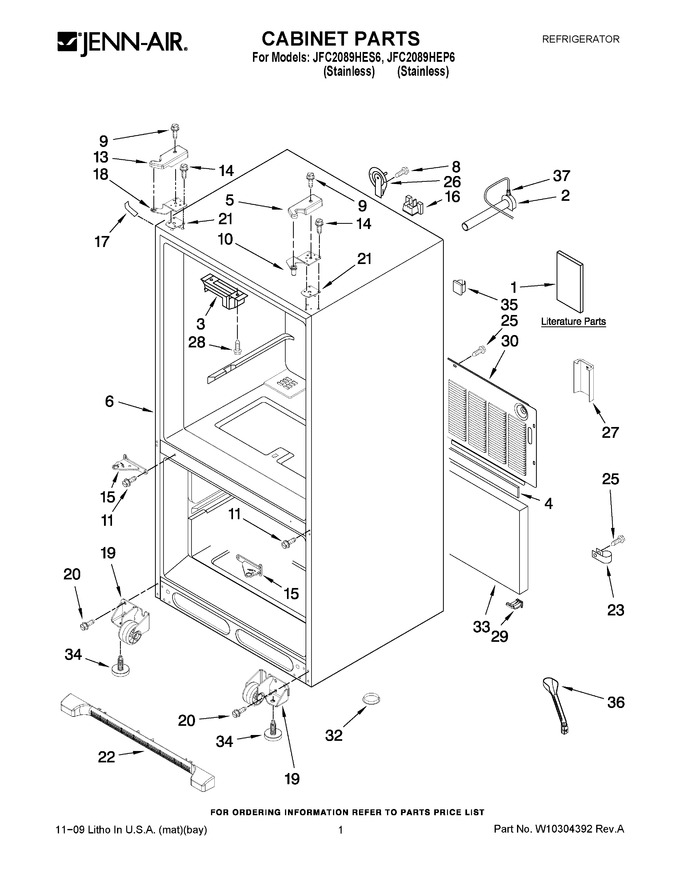

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10279335 | Tech Sheet |
|
- | |||||
| 1 | W10215641 | Energy Guide |
|
- | |||||
| 1 | W10137647 | Owners Manual |
|
- | |||||
| 2 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 119.86 | ||||
| 3 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | 12684202B | Cover, Right Hinge (black) |
|
- | |||||
| 6 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | WP12566606ED | Hinge, Top Right (Replaces: 12566604ED) |
|
Immediately | $ 47.13 | ||||
| 11 | W11573362 | Screw (6) (Replaces: 12992201) |
|
$ 14.72 | |||||
| 13 | 12684201B | Cover, Left Hinge (black) |
|
- | |||||
| 14 | WP489349 | Screw (6) (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W10918164 | Hinge, Center (black, Right ) (Replaces: 13000008ED) |
|
$ 91.53 | |||||
| 15 | W10918164 | Hinge, Center (black, Left) (Replaces: 13000007ED) |
|
$ 91.53 | |||||
| 16 | 12777701 | Block, Fill Tube |
|
$ 7.17 | |||||
| 17 | 67003485 | Cover, Corner (2) (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | WP12566607ED | Hinge, Top Left (Replaces: 12566605ED) |
|
$ 91.09 | |||||
| 19 | W11820444 | Roller Assy.(front) (left) (Replaces: W10275850) |
|
Immediately | $ 37.35 | ||||
| 19 | W11820445 | Roller Assy.(front) (right) (Replaces: W10275849) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | 12579702 | Shim, Hinge |
|
- | |||||
| 22 | WPW10534153 | Grille, Toe (black) (Replaces: W10244561) |
|
$ 154.57 | |||||
| 23 | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 11.54 | |||||
| 25 | 67006425 | Screw (10) (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 27 | W10208593 | Guard, Water Valve |
|
$ 15.71 | |||||
| 28 | WP7101P126-60 | Screw (2) (Replaces: 12990303) |
|
Immediately | $ 8.36 | ||||
| 29 | 12831101 | Sweep, Dual Tube |
|
$ 13.03 | |||||
| 30 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 207.99 | |||||
| 32 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 33 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 34 | WPW10141622 | Brake, Foot (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 35 | WPM0104106 | Clip (2) (Replaces: M0104106) |
|
$ 8.17 | |||||
| 36 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 37 | WPM0114003 | Clip (Replaces: M0114003SP) |
|
$ 11.60 |
