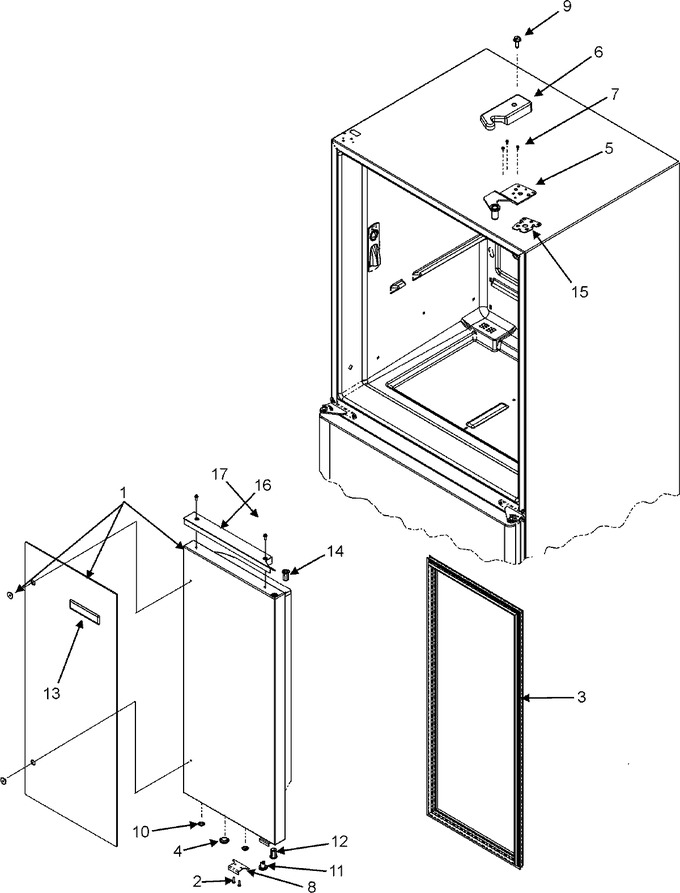

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10133894 |
|
Door Assy., Rh Glass (wht) |
11 |
Appelez-nous
|
- |
|
|
|
| 1 |
67005080 |
|
Door Assy., Rh Glass (wht) |
10 |
Appelez-nous
|
- |
|
|
|
| 2 |
WP98165 |
 |
Screw, Sm (Replaces: 67004822) |
10 |
|
|
$ 8.57 |
|
|
| 3 |
W10830189 |
 |
Gasket, French Door (wht) (Replaces: 67003546) |
10 |
|
Immediately |
$ 228.91 |
|
|
| 4 |
A3080002 |
|
Plug, Button (wht) |
10 |
Appelez-nous
|
- |
|
|
|
| 5 |
12626910ED |
 |
Hinge, Top (rt-blk) (Replaces: 12626901ED) |
10 |
|
|
$ 124.87 |
|
|
| 6 |
12629801W |
|
Cover, Top Hinge (rt-wht) |
10 |
|
|
$ 24.68 |
|
|
| 7 |
R9800670 |
|
Screw, Tf (Replaces: M0238731) |
10 |
|
|
$ 10.58 |
|
|
| 8 |
12968202W |
 |
Stop, Door (wht) (Replaces: 67003779) |
10 |
|
|
$ 69.29 |
|
|
| 8 |
67006278 |
|
Stop, Door (wht) |
11 |
Appelez-nous
|
- |
|
|
|
| 9 |
WP8281196 |
 |
Screw-mach (Replaces: M0202327) |
10 |
|
Immediately |
$ 7.55 |
|
|
| 10 |
10712401 |
 |
Plug, Vent (wht) |
10 |
|
|
$ 7.79 |
|
|
| 11 |
WP67003638 |
 |
Closure, Door (wht) (Replaces: 67003638) |
10 |
|
Immediately |
$ 8.15 |
|
|
| 12 |
12028601W |
 |
Bushing, Door (wht) (Replaces: 67002732) |
10 |
|
|
$ 24.03 |
|
|
| 13 |
67004548 |
|
Nameplate |
10 |
Appelez-nous
|
- |
|
|
|
| 14 |
WP67004977 |
 |
Bushing, Door (wht) (Replaces: 67004977) |
10 |
|
|
$ 8.20 |
|
|
| 15 |
12579702 |
|
Shim, Top Hinge |
10 |
Appelez-nous
|
- |
|
|
|
| 16 |
67005570 |
|
Extension, Rh Glass Door (wht) |
10 |
Appelez-nous
|
- |
|
|
|
| 17 |
340184 |
 |
Screw (Replaces: 67003115) |
10 |
|
|
$ 14.11 |
|
|
