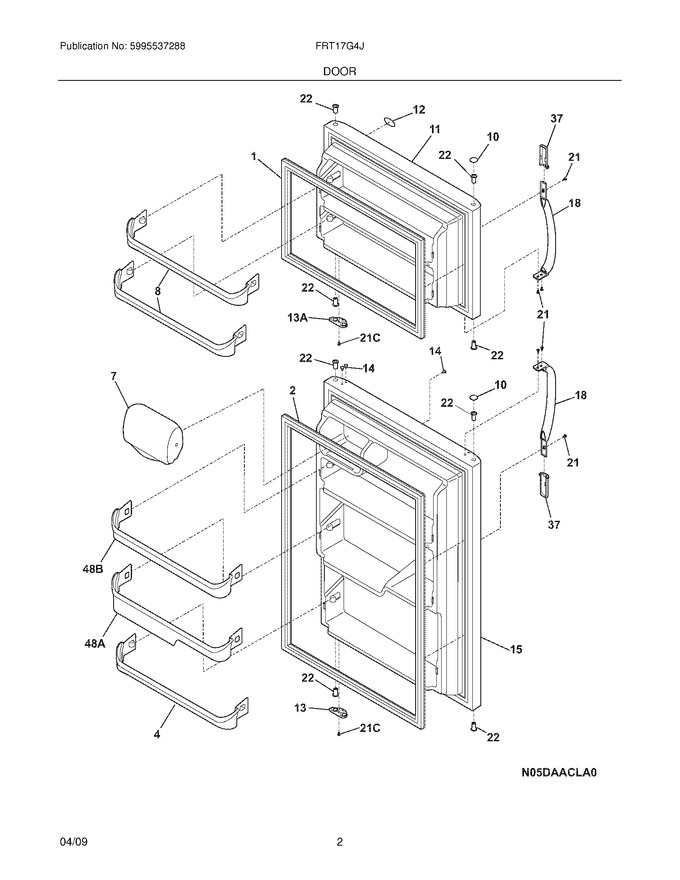

03 - Door
05 - Cabinet
07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240535101 | Rack-door |
|
Immediately | $ 31.74 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 40.45 | ||||
| 8 | 240535001 | Rack-door |
|
Immediately | $ 53.55 | ||||
| 10 | 240381302 | Plug-button,bisque ,hinge Brg Hole ,(2) |
|
$ 19.06 | |||||
| 11 | 240420102 | Door,frzr ,bisque |
|
- | |||||
| 12 | 241808601 | Label-nameplate |
|
$ 14.10 | |||||
| 13 | 240312423 | Door Stop,bisque ,ref (Replaces: 240312407) |
|
$ 13.48 | |||||
| 14 | 240494002 | Plug-button,bisque |
|
$ 41.12 | |||||
| 15 | 240420202 | Door,refr ,bisque |
|
$ 359.84 | |||||
| 18 | 218668004 | Handle-door,bisque |
|
$ 83.79 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 21.37 | ||||
| 22 | 5304507146 | Bearing-hinge,natural Color (Replaces: 240527101) |
|
Immediately | $ 8.43 | ||||
| 37 | 215870633 | Trim-handle,2.47`` ,bisque ,w/satin Al Band |
|
$ 56.81 | |||||
| 13A | 240312408 | Door Stop,bisque ,frzr |
|
- | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 48A | 240383901 | Bin-door,2-liter |
|
Immediately | $ 63.19 | ||||
| 48B | 240383801 | Bin-door,gallon |
|
Immediately | $ 62.11 | ||||
| F1 | 241872501 | Gasket-frzr Door,white ,magnetic |
|
Immediately | $ 149.10 | ||||
| F2 | 241872504 | Gasket-refr Door,white ,magnetic |
|
Immediately | $ 203.77 | ||||
| NI | 218676004 | Band-decorative,satin Aluminum ,handle Trim |
|
$ 57.60 |
