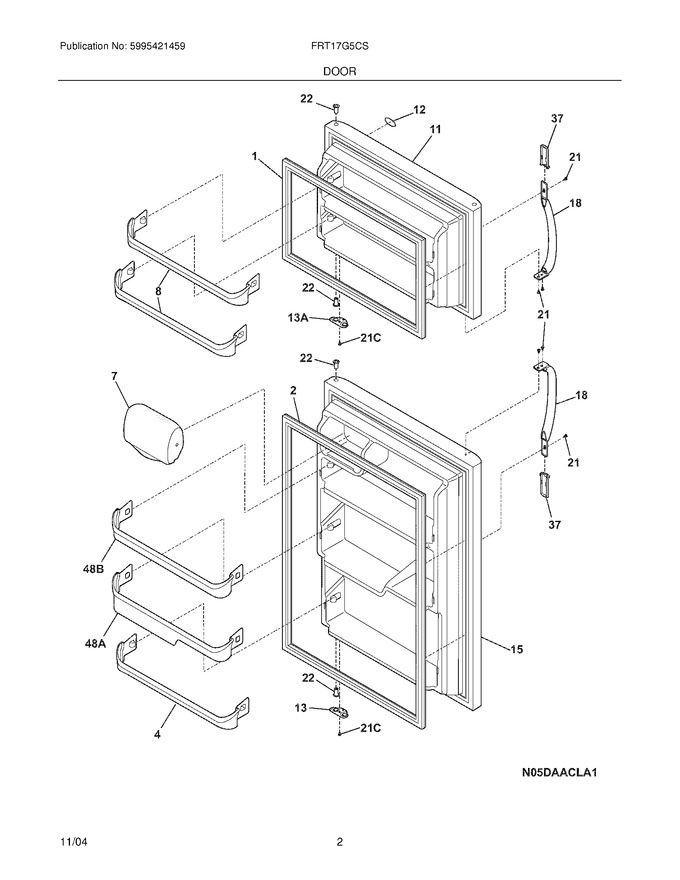

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240535101 | Rack-door |
|
Immediately | $ 31.74 | ||||
| 7 | 240337712 | Door-dairy,w/o Graphics ,clear (Replaces: 240337703) |
|
Immediately | $ 40.45 | ||||
| 8 | 240535001 | Rack-door |
|
Immediately | $ 53.55 | ||||
| 11 | 240573501 | Door,frzr ,stainless ,rh ,complete Assy |
|
- | |||||
| 12 | 241808601 | Label-nameplate,black (Replaces: 240415204) |
|
$ 14.10 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 16.85 | |||||
| 15 | 240573601 | Door,refr ,stainless ,rh ,complete Assy |
|
- | |||||
| 18 | 218668003 | Handle-door, Black |
|
$ 77.18 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 (Replaces: 240383401) |
|
Immediately | $ 21.37 | ||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 8.43 | ||||
| 37 | 215870636 | Trim-handle,2.47`` ,black ,w/satin Al Band |
|
$ 76.91 | |||||
| 13A | 240312415 | Door Stop,black ,frzr (Replaces: 240312406) |
|
$ 23.63 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 15.75 | ||||
| 48A | 240383901 | Bin-door,2-liter |
|
Immediately | $ 63.19 | ||||
| 48B | 240383801 | Bin-door,gallon |
|
Immediately | $ 62.11 | ||||
| F1 | 241872507 | Gasket,frzr Door Seal ,black ,magnetic (Replaces: 240542107) |
|
$ 184.28 | |||||
| F2 | 240542110 | Gasket,refr Door Seal ,black ,magnetic |
|
- | |||||
| NI | 218490901 | Cleaner,stainless Steel |
|
$ 5.58 |
