SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel


03 - Oven Door


04 - Latch


05 - Internal Oven


06 - Cabinet And Stirrer


07 - Microwave Door


08 - Microwave Compartment


09 - Top Venting, Optional

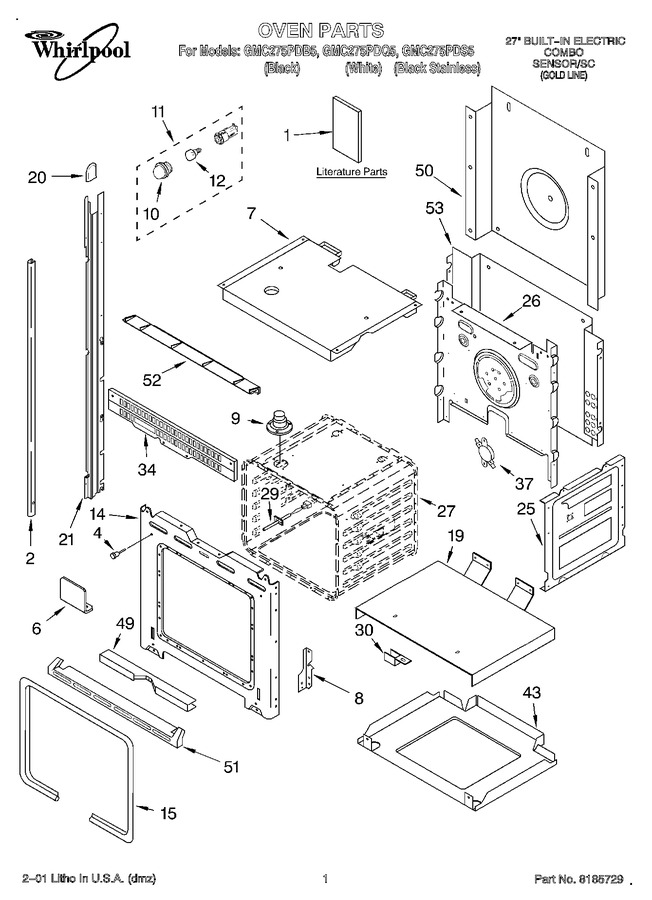

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4450412		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4452006		Literature Parts (use & Care Guide (oven))		Appelez-nous	-
1	LIT4450785		Literature Parts (cooking Guide (label))		Appelez-nous	-
1	LIT4452005		Literature Parts (use & Care Guide (microwave))		Appelez-nous	-
1	LIT4455474		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	4450856		Trim, Side (rh Black)		Appelez-nous	-
2	4450860		Trim, Side (lh White)		Appelez-nous	-
2	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 8.16
2	4449041		Trim, Side (screw White)				$ 5.27
2	4450857		Trim, Side (rh White)		Appelez-nous	-
2	4450859		Trim, Side (lh Black)		Appelez-nous	-
4	4448520		Bumper, Door				$ 22.25
6	4455510		Bracket, Support		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4455285		Top, Chassis		Appelez-nous	-
8	4455521		Reciever, Hinge (right Hand)		Appelez-nous	-
8	4455520		Reciever, Hinge (left Hand)		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4455611		Frame, Front		Appelez-nous	-
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451477		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	4450584		Rail, Side (left Side)		Appelez-nous	-
21	4450583		Rail, Side (right Side)		Appelez-nous	-
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452233		Back, Chassis		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
30	4449845		Bracket-support		Appelez-nous	-
34	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
34	4451666		Vent, Center		Appelez-nous	-
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 55.44
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4455529		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	4448476		Trim, Bottom (white Model)		Appelez-nous	-
51	4448475		Trim, Bottom (black Model)		Appelez-nous	-
51	WP3400832		Trim, Bottom (screw)   (Replaces: 3400832)			Immediately	$ 8.18
52	4450787		Vent, Control		Appelez-nous	-
53	4451755		Chassis, Back		Appelez-nous	-
53	4449315		Insulation, Wrap				$ 64.81
53	4452260		Spacer, Foam		Appelez-nous	-
53	4450364		Insulation, Back		Appelez-nous	-
