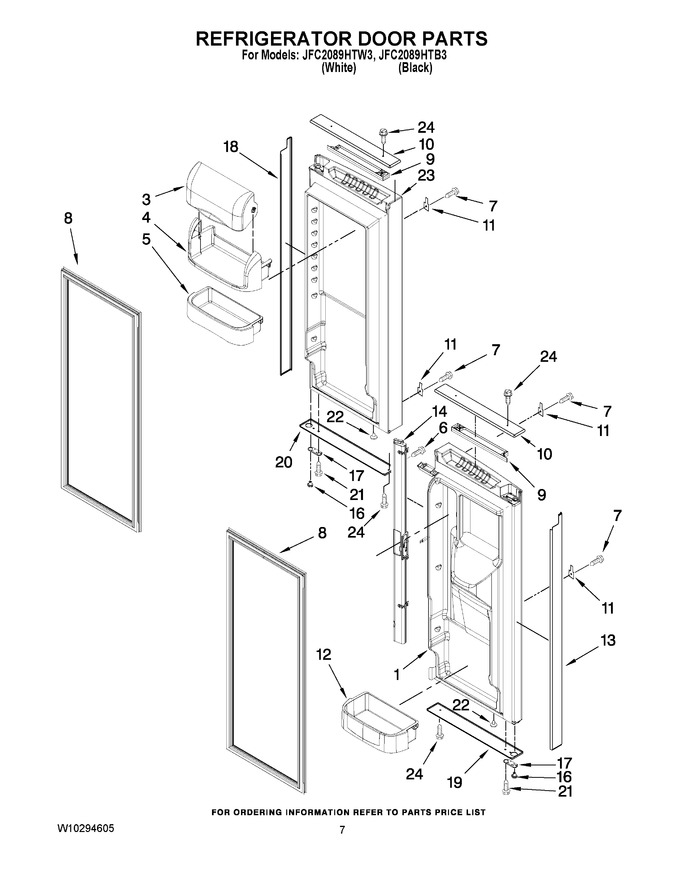

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13024012WQ | Door, Left (white) |
|
$ 421.73 | |||||
| 1 | 13024012B | Door, Left (black) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 78.73 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | 67004748 | Bin, Shelf (3) (medium) (Replaces: 12801904) |
|
$ 83.16 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.02 | |||||
| 7 | WP489128 | Screw (Replaces: 12992701) |
|
$ 10.88 | |||||
| 8 | W10830189 | Gasket, Door (2) (white) (Replaces: W10163894) |
|
Immediately | $ 228.91 | ||||
| 8 | W11368721 | Gasket, Door (2) (black) (Replaces: W10163895) |
|
Immediately | $ 169.21 | ||||
| 9 | 12752801B | Extension, French Door (black) |
|
$ 25.07 | |||||
| 9 | 12752801W | Extension, French Door (white) |
|
- | |||||
| 10 | 12752908S1 | Trim, Top (rh) |
|
$ 41.46 | |||||
| 10 | 12752907S1 | Trim, Top (lh) |
|
$ 41.04 | |||||
| 11 | 67002451 | Clip, Handle (Replaces: 12315104) |
|
$ 8.44 | |||||
| 12 | 67004749 | Bin, Shelf (2) (gallon) (Replaces: 12840002) |
|
$ 85.77 | |||||
| 13 | 12694502S1 | Trim, Vertical Rh |
|
- | |||||
| 14 | WP12722803W | Mullion, Door (white) (Replaces: 12722803W) |
|
Immediately | $ 261.21 | ||||
| 14 | WP12722803B | Mullion, Door (black) (Replaces: 12722803B) |
|
Immediately | $ 206.80 | ||||
| 16 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.76 | ||||
| 17 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 65.99 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.05 | ||||
| 18 | 12694501S1 | Trim, Vertical (lh) |
|
- | |||||
| 19 | 12752909S1 | Trim, Bottom (rh) |
|
$ 41.46 | |||||
| 20 | 12752910S1 | Trim, Bottom (lh) |
|
- | |||||
| 21 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 22 | WP67002721 | Bushing, Door (black) (Replaces: 12699301B) |
|
Immediately | $ 7.86 | ||||
| 22 | 67002722 | Bushing, Door (white) (Replaces: 12699301W) |
|
$ 21.11 | |||||
| 23 | 13024011B | Door, Right (black) |
|
- | |||||
| 23 | 13024011W | Door, Right (white) |
|
- | |||||
| 24 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 |
