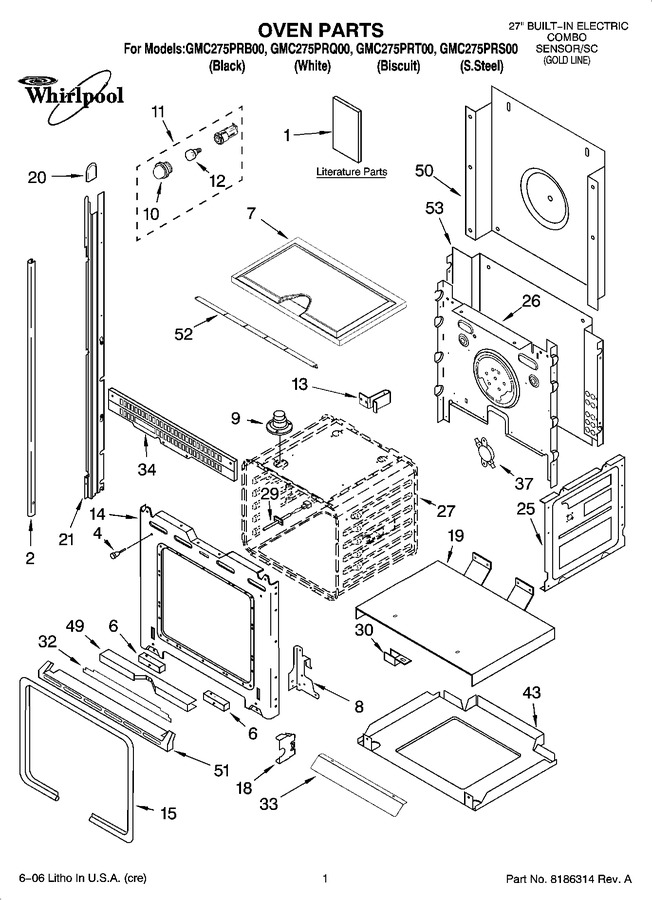

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Door Parts


08 - Microwave Compartment Parts


09 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9759133		Safer Cooking Tips		Appelez-nous	-
1	8303655		Installation Instructions		Appelez-nous	-
1	8303649		Use & Care Guide (oven)		Appelez-nous	-
1	8303650		Use & Care Guide (microwave)		Appelez-nous	-
1	8302010		Tech Sheet		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
2	4449041		Screw (white)				$ 5.27
2	8302927		Trim, Side (rh Black)		Appelez-nous	-
2	8302929		Trim, Side (rh White)		Appelez-nous	-
2	8302931		Trim, Side (rh Biscuit)		Appelez-nous	-
2	8303217		Trim, Side (rh S.steel)		Appelez-nous	-
2	8302928		Trim, Side (lh Black)		Appelez-nous	-
2	8302930		Trim, Side (lh White)		Appelez-nous	-
2	8302932		Trim, Side (lh Biscuit)		Appelez-nous	-
2	8303218		Trim, Side (lh S.steel)		Appelez-nous	-
2	WP8281236		Screw (black Model)   (Replaces: 8281236)				$ 8.16
2	WP694091		Screw (biscuit Model)   (Replaces: 694091)				$ 7.55
4	4448520		Bumper, Door				$ 22.25
6	4452490		Spacer, Foam				$ 34.83
7	4455864		Top, Chassis				$ 22.85
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
8	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
8	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	8300791		Bracket, Combo		Appelez-nous	-
14	4455611		Frame, Front		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
18	4452152		Bracket, Mounting				$ 35.18
19	4451477		Support, Insulation		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4451605		Cap, Spacer				$ 38.55
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	8303118		Rail, Side (left Side)		Appelez-nous	-
21	8303117		Rail, Side (right Side)		Appelez-nous	-
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452233		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
30	4449845		Bracket-support		Appelez-nous	-
32	8300154		Insulation, Bottom Vent		Appelez-nous	-
33	9760676		Deflector, Vent		Appelez-nous	-
33	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
34	4451666		Vent, Center		Appelez-nous	-
34	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 9759243)			Immediately	$ 55.44
43	4455529		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	8302940		Trim, Bottom (s.steel)		Appelez-nous	-
51	8302937		Trim, Bottom (black Model)		Appelez-nous	-
51	8302938		Trim, Bottom (white Model)		Appelez-nous	-
51	8302939		Trim, Bottom (biscuit Model)		Appelez-nous	-
51	WP3400832		Trim, Bottom (screw)   (Replaces: 3400832)			Immediately	$ 8.18
52	8303503		Vent, Control		Appelez-nous	-
53	4449315		Insulation, Wrap				$ 64.81
53	4450364		Insulation, Back		Appelez-nous	-
53	4452260		Spacer, Foam		Appelez-nous	-
53	4451755		Chassis, Back		Appelez-nous	-
