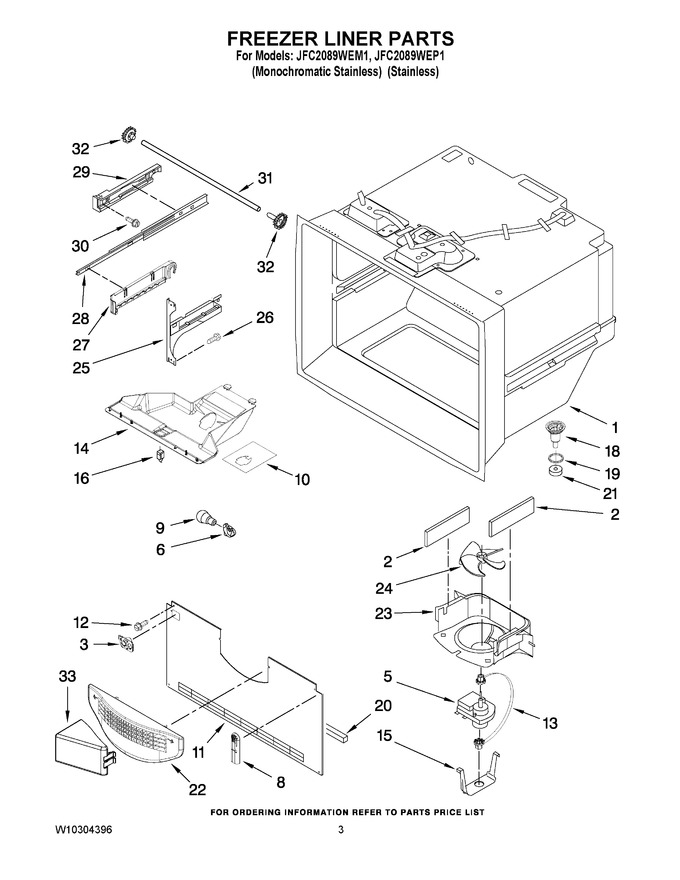

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Asevice Able Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 7.68 | ||||
| 3 | W11448709 | Guide- Fill Tube (Replaces: 12932103) |
|
$ 24.64 | |||||
| 5 | W11024089 | Motor, Evaporator (Replaces: 13062901) |
|
Immediately | $ 58.74 | ||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 13.21 | ||||
| 8 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.82 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: W10194422V) |
|
Immediately | $ 11.30 | ||||
| 10 | W11469652 | Foil, Housing (Replaces: W10277466) |
|
$ 22.18 | |||||
| 11 | W11727809 | Cover, Evaporator (Replaces: 12226112) |
|
$ 89.54 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 13 | W11690160 | Grommet (Replaces: W10150583) |
|
$ 7.91 | |||||
| 14 | WPW10277025 | Module, Light (Replaces: W10277025) |
|
$ 128.00 | |||||
| 15 | 13058002 | Clip, Evap. Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 18 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 19 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 20 | W11159728 | Gasket, Bottom (Replaces: A3189396) |
|
Immediately | $ 28.86 | ||||
| 21 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.41 | |||||
| 22 | WPW10175909 | Grille, Fz Air (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Blade, Fan (evaporator) (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | WPW10330995 | Bracket, Door (right) (Replaces: W10119295) |
|
Immediately | $ 324.39 | ||||
| 25 | WPW10330994 | Bracket, Door (left) (Replaces: W10119064) |
|
Immediately | $ 161.64 | ||||
| 26 | WP98165 | Screw (8) (Replaces: 12990521) |
|
$ 8.00 | |||||
| 27 | WPW10281115 | Cradle, Basket (left) (Replaces: W10281115) |
|
$ 77.56 | |||||
| 27 | WPW10281116 | Cradle, Basket (right) (Replaces: W10281116) |
|
$ 77.95 | |||||
| 28 | W11658403 | Slide, Drawer (2) (Replaces: 13055901) |
|
Immediately | $ 214.52 | ||||
| 29 | WPW10284693 | Adapter, Slide (right) (Replaces: W10261193) |
|
$ 119.44 | |||||
| 29 | WPW10284692 | Adapter, Slide (left) (Replaces: W10261191) |
|
$ 119.58 | |||||
| 30 | WP489474 | Screw (6) (Replaces: 12990501) |
|
Immediately | $ 7.97 | ||||
| 31 | W11028221 | Shaft (Replaces: 12812903WD) |
|
$ 31.66 | |||||
| 32 | 12002497 | Gear (includes Lh & Rh) |
|
Immediately | $ 22.51 | ||||
| 33 | W10157765 | Diverter-air |
|
$ 88.43 |
