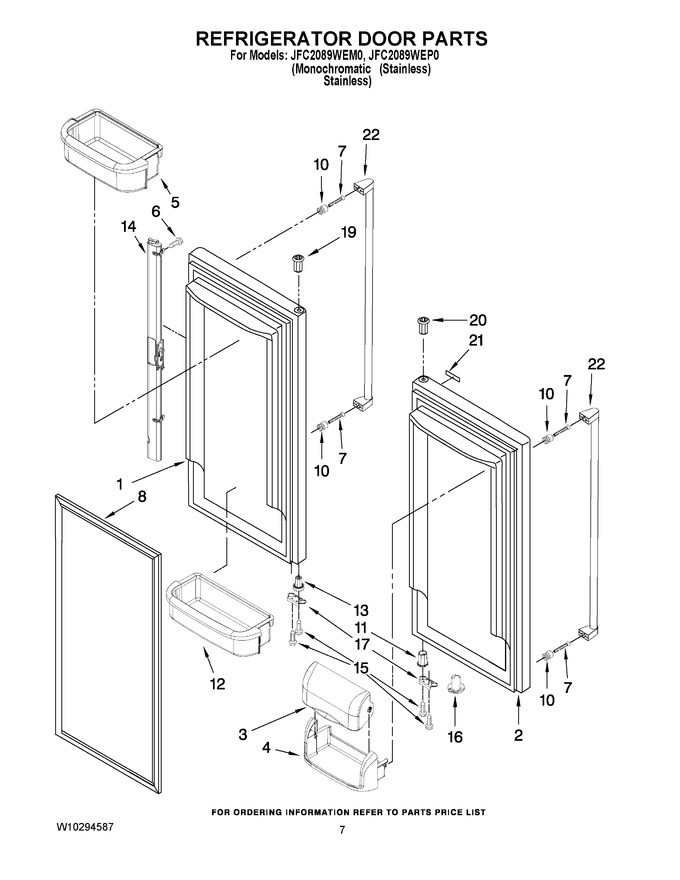

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13024084SQ | Door, Left (stainless) |
|
- | |||||
| 2 | 13024085SQ | Door, Right (stainless) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | 67004748 | Bin, Shelf (3) (Replaces: 12801904) |
|
Immediately | $ 87.32 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | 67006901 | Screw, Mount (Replaces: 12991703) |
|
Immediately | $ 9.49 | ||||
| 8 | W10830162 | Gasket, Door (2) (apollo Grey) (Replaces: W10179332) |
|
Immediately | $ 212.57 | ||||
| 10 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 12.56 | ||||
| 11 | 12028601AP | Bushing, Door (bottom Right) |
|
$ 5.71 | |||||
| 12 | 67004749 | Bin, Shelf (2) (Replaces: 12840002) |
|
$ 90.06 | |||||
| 13 | 12699301AP | Bushing, Door (bottom Left) |
|
$ 13.44 | |||||
| 14 | WP12722803AP | Mullion, Door (apollo Grey) (Replaces: 12722803AP) |
|
Immediately | $ 177.93 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 16 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 17 | W11401472 | Stop, Door (apollo Grey) (Replaces: 10447114) |
|
Immediately | $ 23.56 | ||||
| 19 | 12395501B | Bushing, Door Upper Left (black) |
|
- | |||||
| 20 | 10961006AP | Bushing, Door (upper Right) (apollo Grey) |
|
$ 9.65 | |||||
| 21 | WPW10214168 | Nameplate (jfc2089wem0) (Replaces: W10214168) |
|
$ 85.95 | |||||
| 21 | W11636815 | Nameplate (jfc2089wep0) (Replaces: 13062401) |
|
$ 45.35 | |||||
| 22 | W10210624 | Handle, Door (jfc2089wep0) |
|
$ 155.63 | |||||
| 22 | WPW10298244 | Handle, Door (jfc2089wem0) (Replaces: W10237393) |
|
$ 327.03 |
