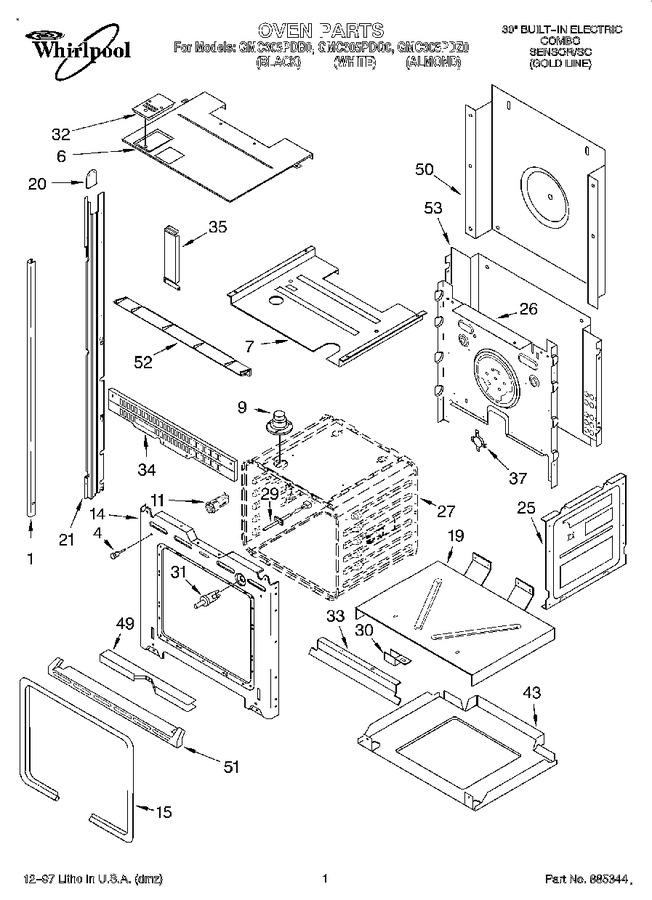

SELECT A DIAGRAM

01 - Oven


02 - Control Panel, Literature


03 - Oven Door


04 - Latch


05 - Internal Oven


06 - Cabinet And Stirrer


07 - Microwave Compartment


08 - Microwave Door


09 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450857		Trim, Side (rh White)		Appelez-nous	-
1	4450860		Trim, Side (lh White)		Appelez-nous	-
1	4450861		Trim, Side (lh Almond)		Appelez-nous	-
1	4449041		Trim, Side (screw)				$ 5.27
1	4450856		Trim, Side (rh Black)		Appelez-nous	-
1	4450858		Trim, Side (rh Almond)		Appelez-nous	-
1	4450859		Trim, Side (lh Black)		Appelez-nous	-
4	4448520		Bumper, Door				$ 22.25
6	4451054		Divider, Vent		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4454833		Partition		Appelez-nous	-
9	4449009		Tube, Vent		Appelez-nous	-
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
11	4450706		Oven Light Assy		Appelez-nous	-
14	WP4449040		Scre   (Replaces: 4449040)				$ 6.78
14	4450417		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4449372)			Immediately	$ 74.56
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4450542		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	4450584		Rail, Side (left Side)		Appelez-nous	-
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	4450583		Rail, Side (right Side)		Appelez-nous	-
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4451546		Back, Chassis		Appelez-nous	-
29	4450026		Sensor		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
30	4449845		Bracket-support		Appelez-nous	-
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
31	4450819		Switch, Door		Appelez-nous	-
32	4449369		Vent Box Assy		Appelez-nous	-
32	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
33	4450280		Deflector, Vent		Appelez-nous	-
34	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
34	4159465		Screw		Appelez-nous	-
34	4449074		Vent, Center		Appelez-nous	-
35	4449906		Extension Filler		Appelez-nous	-
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	4450334		Thermostat (tod) (temp.) Spst		Appelez-nous	-
43	4451398		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	4450543		Cover, Back		Appelez-nous	-
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4448478		Trim, Bottom (white Model)		Appelez-nous	-
51	4448862		Trim, Bottom (almond Model)		Appelez-nous	-
51	4448477		Trim, Bottom (black Model)				$ 71.44
52	4450791		Vent, Control		Appelez-nous	-
53	4450283		Insulation, Bottom		Appelez-nous	-
53	4450403		Chassis, Back		Appelez-nous	-
53	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
53	4450365		Insulation, Back				$ 70.95
