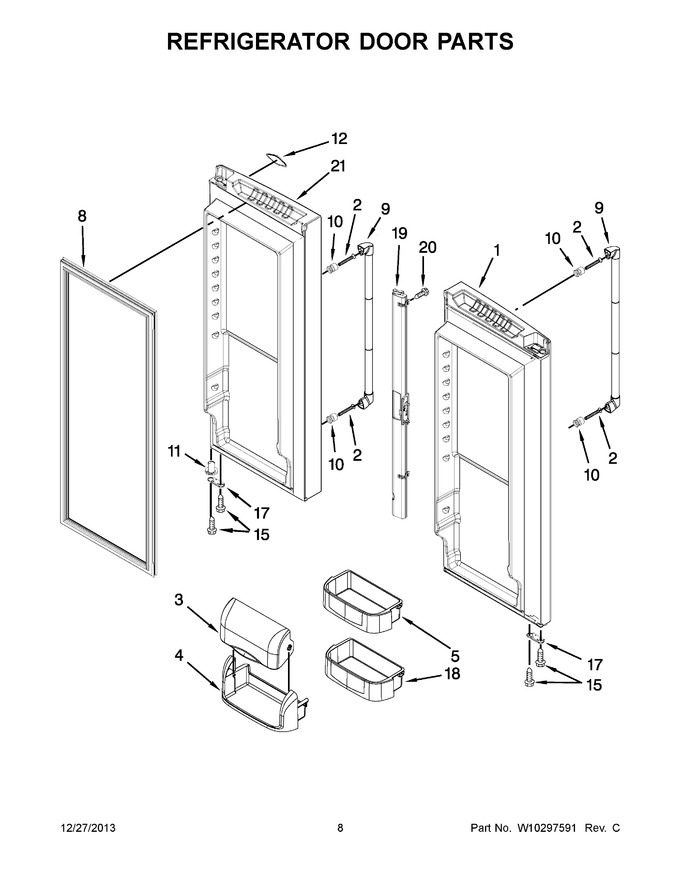

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13094721SQ | Door, Left (stainless) |
|
- | |||||
| 2 | 67006901 | Screw (Replaces: 12991703) |
|
Immediately | $ 9.49 | ||||
| 3 | WP12744905 | Assembly, Dairy (Replaces: 12744905) |
|
$ 113.99 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10119841 | Bucket, Medium (Replaces: W10119841) |
|
Immediately | $ 90.23 | ||||
| 8 | W10830046 | Gasket, Door (grey) (Replaces: W10163997) |
|
Immediately | $ 215.42 | ||||
| 9 | WPW10298244 | Handle, Door (stainless) (Replaces: W10237393) |
|
$ 327.03 | |||||
| 10 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 12.56 | ||||
| 11 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 12 | WPW10214168 | Badge (stainless) (Replaces: W10214168) |
|
$ 85.95 | |||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 17 | WPW10120097 | Stop, Door (grey) (Replaces: W10120097) |
|
$ 8.80 | |||||
| 18 | WPW10119846 | Bucket, Gallon (Replaces: W10119846) |
|
Immediately | $ 81.84 | ||||
| 19 | W11177238 | Mullion, Door (grey) (Replaces: 12732508AP) |
|
Immediately | $ 197.70 | ||||
| 20 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 21 | 13094722SQ | Door, Right (stainless) |
|
- |
