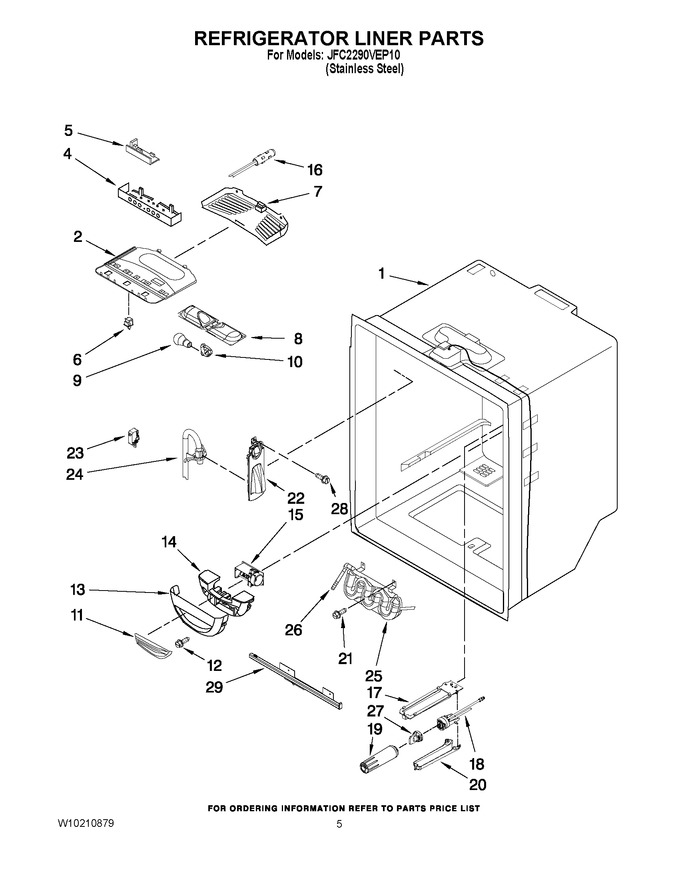

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10203323 | Module, Light |
|
- | |||||
| 4 | W11416469 | Module, Control (Replaces: W10185585) |
|
Immediately | $ 234.84 | ||||
| 5 | WPW10116216 | Board, Control (Replaces: W10116216) |
|
Immediately | $ 297.62 | ||||
| 6 | W11291138 | Switch, Light (Replaces: 12466104) |
|
Immediately | $ 36.67 | ||||
| 7 | W11284721 | Cover, Light (Replaces: 67003897) |
|
$ 106.02 | |||||
| 8 | 12806601 | Housing, Light (Replaces: 67003901) |
|
$ 110.20 | |||||
| 9 | W11679940 | Bulb, Light (2) (Replaces: A0282812) |
|
Immediately | $ 11.30 | ||||
| 10 | W11447232 | Socket, Light (2) (Replaces: Y12570701) |
|
Immediately | $ 13.87 | ||||
| 11 | 67003900 | Insert, Damper Cover |
|
Immediately | $ 8.55 | ||||
| 12 | W11772394 | Screw (2) (Replaces: 67006602) |
|
Immediately | $ 13.22 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 67003899) |
|
$ 118.65 | |||||
| 14 | W11750607 | Insulation (Replaces: 67006604) |
|
$ 50.15 | |||||
| 15 | WPW10594329 | Control, Damper (includes Harness) (Replaces: W10127431) |
|
Immediately | $ 171.52 | ||||
| 16 | W11690896 | Thermistor (Replaces: 12791416) |
|
Immediately | $ 29.76 | ||||
| 17 | 67006325 | Bracket, Filter |
|
Immediately | $ 105.39 | ||||
| 18 | W10204043 | Head, Filter |
|
$ 101.72 | |||||
| 19 | EDR4RXD1B | Filter, Water (Replaces: UKF8001AXX) |
|
Immediately | $ 49.99 | ||||
| 20 | WP67006331 | Lid, Filter (Replaces: 67006331) |
|
Immediately | $ 118.37 | ||||
| 21 | WP98165 | Screw (2) (Replaces: 67006287) |
|
$ 8.57 | |||||
| 22 | W11243624 | Facade, Disp. (Replaces: W10204292) |
|
Immediately | $ 68.77 | ||||
| 23 | WP12575502 | Switch, Limit (Replaces: 12575502) |
|
Immediately | $ 48.74 | ||||
| 24 | W10117324 | Waterline, Dispenser |
|
$ 49.22 | |||||
| 25 | W11361728 | Tank, Water (Replaces: W10153959) |
|
$ 172.35 | |||||
| 26 | WP2300868 | Union (Replaces: 61006182) |
|
Immediately | $ 29.05 | ||||
| 27 | 67003146 | Plug, Bypass |
|
- | |||||
| 28 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 29 | 2302952 | Slide, Crisper (left) |
|
Immediately | $ 318.09 | ||||
| 29 | 2302953 | Slide, Crisper (right Vent) |
|
Immediately | $ 318.41 | ||||
| NI | WPW10119821 | Harness, Controls (refrigerator) (Replaces: W10119821) |
|
Immediately | $ 135.38 |
