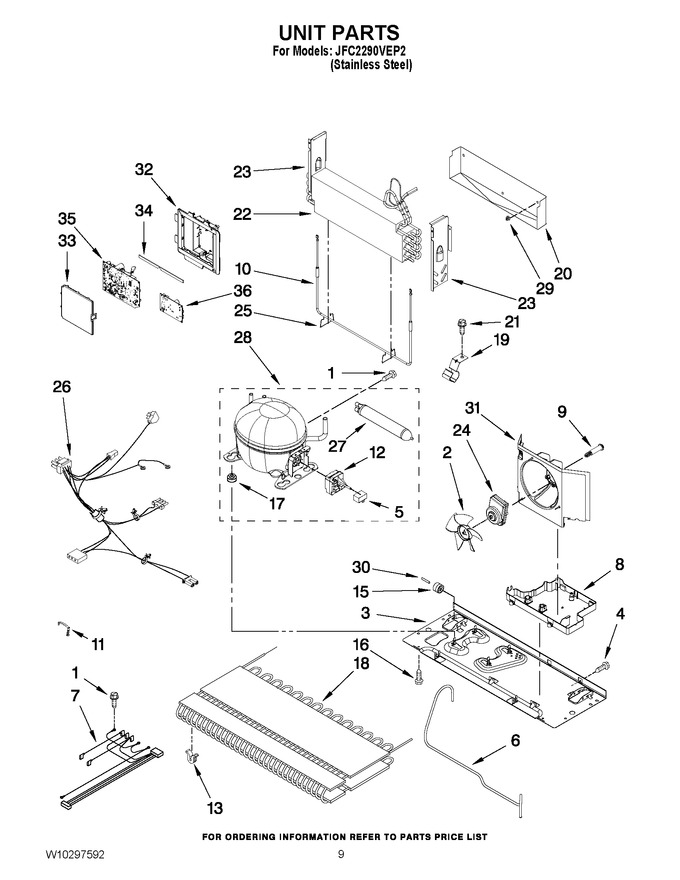

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 75.12 | ||||
| 3 | W11727651 | Basepan (Replaces: W10210985) |
|
$ 110.55 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 5 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 6 | WPW10233569 | Tube, Discharge (Replaces: W10233569) |
|
$ 130.76 | |||||
| 7 | W10280417 | Harness, Evap. Heater |
|
- | |||||
| 8 | WPW10655368 | Pan, Drain (Replaces: W10296785) |
|
Immediately | $ 99.03 | ||||
| 9 | W10829281 | Screw, Shoulder (Replaces: W10216919) |
|
$ 13.28 | |||||
| 10 | W10825088 | Heater, Defrost (Replaces: 12729129) |
|
$ 166.16 | |||||
| 11 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 11.87 | ||||
| 12 | WPW10194431 | Start Device (Replaces: W10194431) |
|
Immediately | $ 86.85 | ||||
| 13 | WPW10137529 | Grommet, Cond (4) (Replaces: W10137529) |
|
$ 8.76 | |||||
| 15 | 12477102 | Roller (2) |
|
Immediately | $ 7.38 | ||||
| 16 | 12992101 | Screw |
|
- | |||||
| 17 | WPW10169124 | Grommet (4) (Replaces: 10835903SP) |
|
Immediately | $ 7.55 | ||||
| 18 | WPW10346415 | Condenser (Replaces: W10135026) |
|
$ 352.15 | |||||
| 19 | 10547003 | Clip, Drier |
|
- | |||||
| 20 | W11547653 | Tray, Drip (Replaces: 12225403WD) |
|
$ 57.02 | |||||
| 21 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 83.71 | |||||
| 22 | 12002041 | Evaporator (Replaces: 12726403) |
|
$ 366.06 | |||||
| 23 | 12225602 | Dam (left Side) |
|
$ 14.66 | |||||
| 23 | 12225702 | Dam (right Side) |
|
$ 14.09 | |||||
| 24 | W11613295 | Motor, Fan (Replaces: 12825101) |
|
Immediately | $ 143.68 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 26 | W10256742 | Harness, Unit With Power Cord |
|
$ 308.35 | |||||
| 27 | WPW10143759 | Drier (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 28 | W10233960 | Compressor (includes Items 11,12,17,27) (Replaces: W10164016) |
|
Immediately | $ 539.34 | ||||
| 29 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 30 | 67006434 | Axle, Roller (2) (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 31 | W11556315 | Shroud (Replaces: W10189184) |
|
$ 83.64 | |||||
| 32 | W10119790 | Box, Hv Control |
|
- | |||||
| 33 | W11226688 | Lid-hv Box (Replaces: 12957702) |
|
$ 85.16 | |||||
| 34 | 12957801 | Gasket-hv Box |
|
- | |||||
| 35 | WPW10120827 | Board, Control (Replaces: W10120827) |
|
Immediately | $ 346.82 | ||||
| 36 | WPW10356039 | Board, Power Supply (Replaces: W10120821) |
|
Immediately | $ 377.04 | ||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge (5.25 Ozs. (r-134a)) |
|
- |
