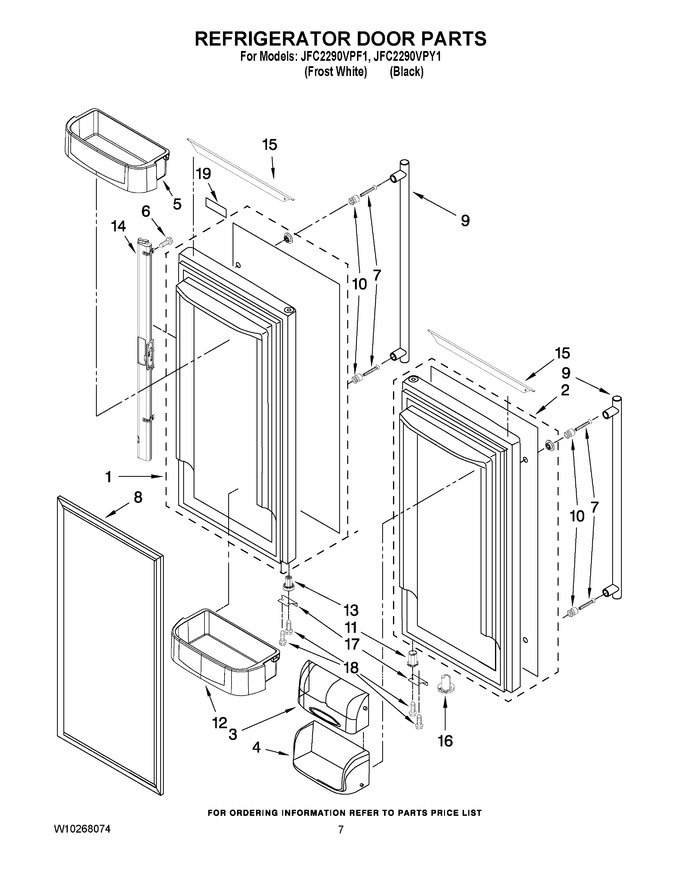

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12894231WQ | Door, Left (white) |
|
- | |||||
| 1 | 12894231BQ | Door, Left (black) |
|
- | |||||
| 2 | 12894230BQ | Door, Right (black) |
|
- | |||||
| 2 | 12894230WQ | Door, Right (white) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10119841 | Bin, Shelf (3) (medium) (Replaces: W10119841) |
|
Immediately | $ 90.23 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | WPW10133608 | Screw (Replaces: 12991202) |
|
$ 10.28 | |||||
| 8 | W11403914 | Gasket, Door (2) (white) (Replaces: W10183535) |
|
Immediately | $ 297.92 | ||||
| 8 | W10830047 | Gasket, Door (2) (black) (Replaces: W10163998) |
|
Immediately | $ 200.20 | ||||
| 9 | W10298243 | Door Handle (black) (Replaces: W10237392) |
|
$ 133.74 | |||||
| 9 | W10298202 | Door Handle (stainless) (Replaces: W10237391) |
|
$ 121.12 | |||||
| 10 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 12.56 | ||||
| 11 | 12028601W | Bushing, Door Bottom Right (white) |
|
$ 24.03 | |||||
| 11 | WP67002731 | Bushing, Door Bottom Right (black) (Replaces: 12028601B) |
|
Immediately | $ 8.24 | ||||
| 12 | WPW10119846 | Bin, Shelf (2) (gallon) (Replaces: W10119846) |
|
Immediately | $ 81.84 | ||||
| 13 | 67002722 | Bushing, Door Bottom Left (white) (Replaces: 12699301W) |
|
$ 22.17 | |||||
| 13 | WP67002721 | Bushing, Door Bottom Left (black) (Replaces: 12699301B) |
|
Immediately | $ 8.25 | ||||
| 14 | W11177241 | Mullion, Door (black) (Replaces: 12732508B) |
|
Immediately | $ 187.59 | ||||
| 14 | W11177230 | Mullion, Door (white) (Replaces: 12732508W) |
|
$ 188.77 | |||||
| 15 | W10259829 | Trim, Door (black) |
|
$ 192.91 | |||||
| 15 | W10261284 | Trim, Door (white) |
|
- | |||||
| 16 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 17 | W10153126 | Stop, Door (black) |
|
$ 15.56 | |||||
| 17 | W10163249 | Stop, Door (white) |
|
$ 17.03 | |||||
| 18 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 19 | WPW10214168 | Badge (black) (Replaces: W10190709) |
|
$ 85.95 | |||||
| 19 | W10190723 | Badge (white) (Replaces: W10190708) |
|
$ 111.95 |
