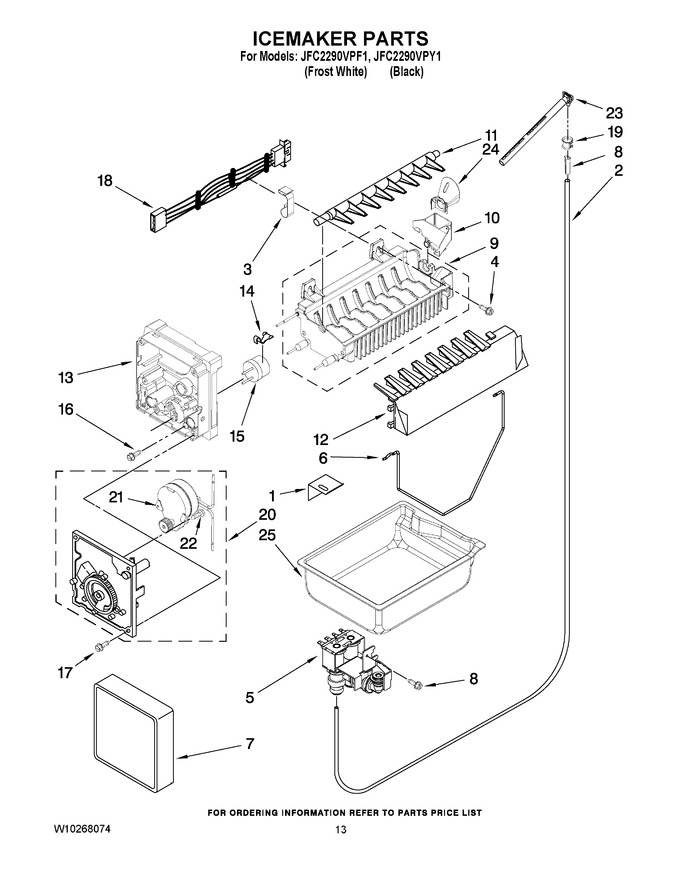

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2256087		Bracket, Ice Maker   (Replaces: 2256086)				$ 97.65
2	W11120581		Tube, Plastic   (Replaces: B5705333SP)				$ 124.93
3	10526702		Clamp		Appelez-nous	-
4	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
5	WP12544124		Valve-inlet   (Replaces: 12544124)			Immediately	$ 156.05
6	WP67004028		Arm, Shutoff   (Replaces: 12868001)			Immediately	$ 95.92
7	WPW10289690		Cover, Front   (Replaces: 12582501)			Immediately	$ 8.82
8	WPA3223101		Insert, Tube   (Replaces: A3223101SP)			Immediately	$ 8.21
9	WPW10190929		Mold & Heater Assembly (also Order 542638)   (Replaces: W10122527)				$ 233.15
10	W10122561		Cup, Water Fill   (Replaces: 628515)				$ 29.16
11	WP627843		Ejector   (Replaces: 627843)				$ 87.78
12	WP2182124		Ice Stripper   (Replaces: 2182124)				$ 90.35
13	WP2195914		Support   (Replaces: 2194712)				$ 109.80
14	WP2315522		Retainer   (Replaces: 2315522)				$ 11.60
15	WP627985		Thermostatorder 542369 Cement Alumilastic)   (Replaces: 628397)				$ 114.64
16	8533917		Screw				$ 14.04
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
18	WPD7813010		Harness, Ice Maker   (Replaces: D7813011)			Immediately	$ 73.97
19	WPM0114003		Clip, Speed   (Replaces: M0114003SP)				$ 11.60
20	8201515		Module Assembly (includes Items 21& 22)   (Replaces: W10223929)			Immediately	$ 141.64
22	489136		Screw				$ 10.80
23	W11176463		Elbow, Fill Tube   (Replaces: 10463203SP)			Immediately	$ 119.86
24	12918001		Funnel, Fill Tube			Immediately	$ 13.03
25	W10120005		Pan, Ice				$ 211.62
100	D7824706Q		Complete Ice Maker   (Replaces: W10190978)			Immediately	$ 167.35
