SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts

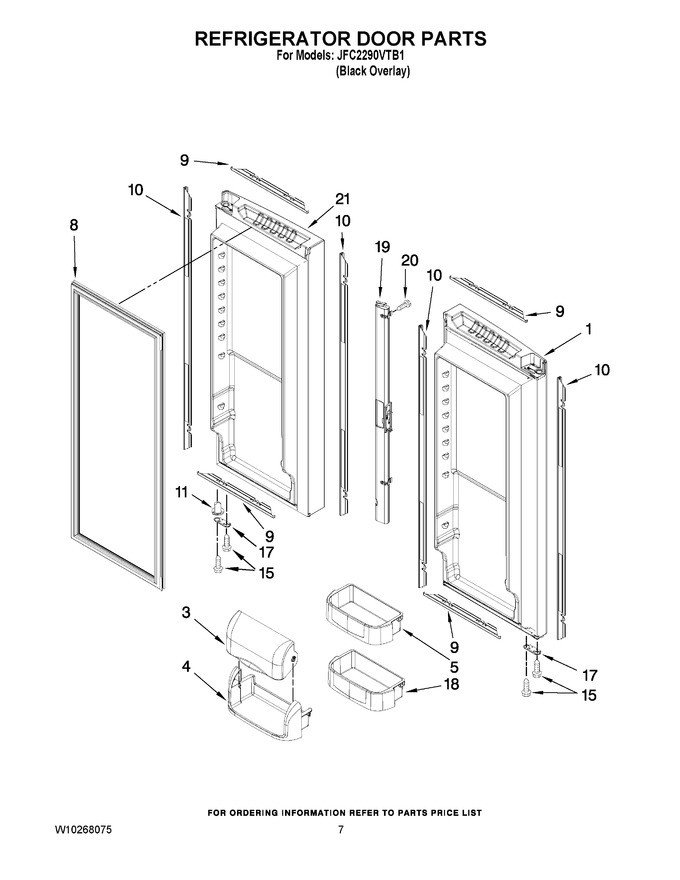

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Icemaker Parts


08 - Freezer Door Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13094710BQ		Door, Refrigerator (black, Lh)		Appelez-nous	-
3	WP12744905		Door, Dairy   (Replaces: 12744905)				$ 108.56
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	WPW10119841		Bucket, Medium (3)   (Replaces: W10119841)			Immediately	$ 90.23
8	W10830047		Gasket, Door (black)   (Replaces: W10163998)			Immediately	$ 200.20
9	W10130132		Trim, Top / Bottom				$ 123.17
10	WPW10130136		Trim, Side   (Replaces: W10130136)				$ 168.68
11	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 86.02
15	WP98165		Screw   (Replaces: 12990504)				$ 8.00
17	W10153126		Stop, Door (black)				$ 14.82
18	WPW10119846		Bucket, Gallon (2)   (Replaces: W10119846)			Immediately	$ 81.84
19	W11177241		Mullion, Door (black)   (Replaces: 12732508B)			Immediately	$ 178.66
20	W11311945		Screw   (Replaces: 12990204)				$ 14.02
21	13094741BQ		Door, Refrigerator (black, Lh)   (Replaces: 13094709BQ)		Appelez-nous	-
