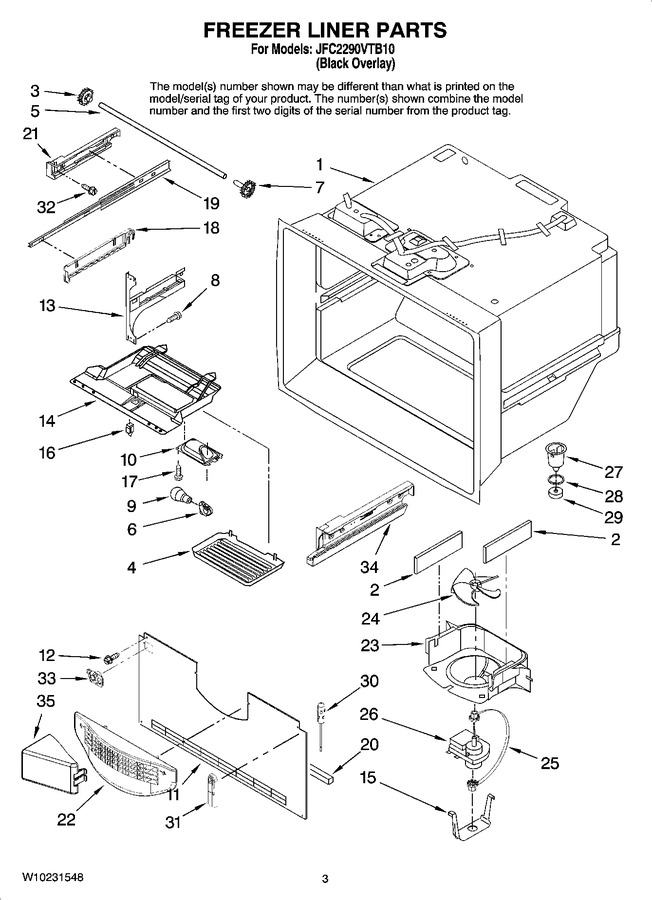

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10856123 | Gasket, Foam (Replaces: 67001291) |
|
Immediately | $ 7.68 | ||||
| 3 | 12002497 | Gear (left) (includes Item 7) |
|
Immediately | $ 22.51 | ||||
| 4 | 67003905 | Cover, Light |
|
- | |||||
| 5 | W11028221 | Shaft (Replaces: 67004017) |
|
$ 31.66 | |||||
| 6 | W11447232 | Socket, Light (Replaces: Y12570701) |
|
Immediately | $ 13.21 | ||||
| 7 | 12002497 | Gear (right) (includes Item 3) |
|
Immediately | $ 22.51 | ||||
| 8 | WP98165 | Screw (8) (Replaces: 67006473) |
|
$ 8.00 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: A0282812) |
|
Immediately | $ 11.30 | ||||
| 10 | W11702858 | Housing, Light (Replaces: 67001035) |
|
$ 85.82 | |||||
| 11 | W10308420 | Cover, Evaporator (Replaces: W10203139) |
|
$ 287.64 | |||||
| 12 | 67006425 | Screw (4) |
|
Immediately | $ 6.95 | ||||
| 13 | WPW10330995 | Bracket, Door (right) (Replaces: W10119295) |
|
Immediately | $ 324.39 | ||||
| 13 | WPW10330994 | Bracket, Door (left) (Replaces: W10119064) |
|
Immediately | $ 161.64 | ||||
| 14 | W11712699 | Module, Freezer (Replaces: W10119832) |
|
$ 87.64 | |||||
| 15 | 10623002 | Clip, Evap Motor |
|
$ 11.53 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 67005653) |
|
Immediately | $ 37.30 | ||||
| 17 | WP489128 | Screw (Replaces: 67006662) |
|
$ 10.88 | |||||
| 18 | W10119849 | Cradle, Basket (right) |
|
Immediately | $ 83.81 | ||||
| 18 | W10119848 | Cradle, Basket (left) |
|
$ 47.41 | |||||
| 19 | W11658403 | Slide, Drawer (Replaces: W10165841) |
|
Immediately | $ 214.52 | ||||
| 20 | W11451451 | Gasket, Bottom (Replaces: 67003731) |
|
$ 12.41 | |||||
| 21 | W10163084 | Adapter, Slide (left) |
|
$ 18.60 | |||||
| 21 | W10163087 | Adapter, Slide (right) |
|
$ 24.20 | |||||
| 22 | WPW10175909 | Grille, Fz Air (Replaces: W10175909) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: W10167023) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Blade, Fan (evaporator) (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | W11690160 | Grommet (Replaces: W10150583) |
|
$ 7.91 | |||||
| 26 | W11024089 | Motor, Evaporator (Replaces: W10199049) |
|
Immediately | $ 58.74 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 29 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.41 | |||||
| 30 | W11690896 | Thermistor (Replaces: W10203133) |
|
Immediately | $ 29.76 | ||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 67003924) |
|
$ 7.82 | |||||
| 32 | WP489474 | Screw (6) (Replaces: 67006406) |
|
Immediately | $ 7.97 | ||||
| 33 | W10201550 | Guide, Fill Tube |
|
- | |||||
| 34 | W10203148 | Adaptor, Shelf (left Hand) |
|
- | |||||
| 34 | WPW10544404 | Adaptor, Shelf (right Hand) (Replaces: W10203149) |
|
$ 134.17 | |||||
| 35 | W10157765 | Diverter-air |
|
$ 88.43 | |||||
| NI | W10196195 | Harness, Lights (freezer) |
|
$ 130.69 |
