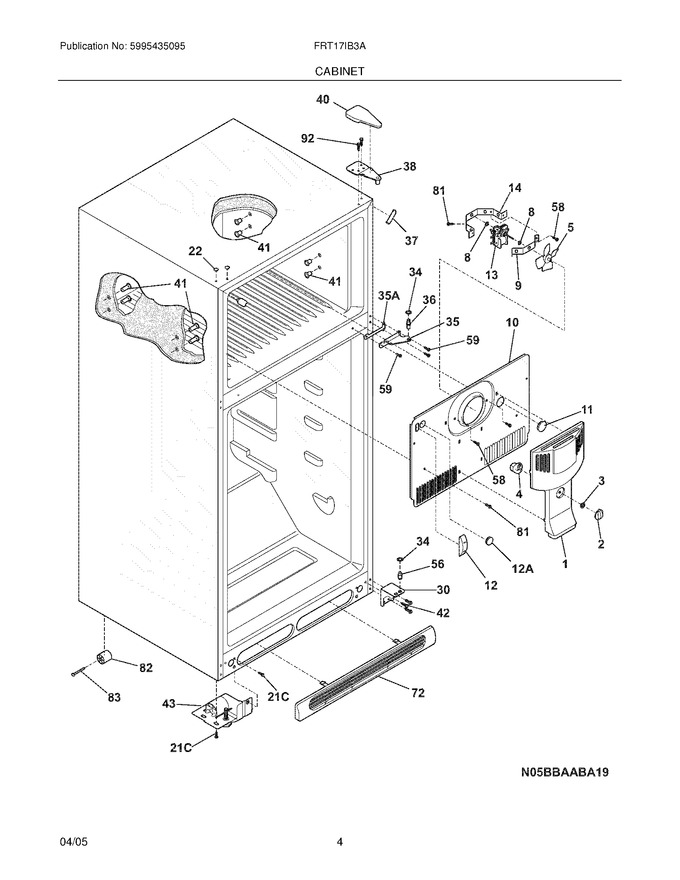

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241652301		Cover-fan   (Replaces: 240355401)				$ 124.98
2	240367001		Knob-damper Control			Immediately	$ 64.04
3	5303001028		Nut,push-on		Appelez-nous	-
4	241523701		Damper-fan Cover				$ 19.16
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	240462011		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 50.56
13	5303918549		Motor-evap Fan   (Replaces: 240369702)			Immediately	$ 73.40
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 19.38
22	215774901		Plug-button,white ,upr Hinge Holes			Immediately	$ 20.22
30	240357101		Bracket-lower Hinge,zinc Chromate		Appelez-nous	-
34	240311303		Washer,hinge ,nylon ,(2)			Immediately	$ 11.80
35	240357001		Bracket-ctr Hinge,zinc		Appelez-nous	-
36	241708002		Pin-center Hinge   (Replaces: 240516401)				$ 23.63
37	5303918606		Trim-cabinet Corner,white ,(2)   (Replaces: 241611301)				$ 7.88
38	240356901		Bracket-upper Hinge		Appelez-nous	-
40	240354401		Cover-upper Hinge,white				$ 68.40
41	5304509705		Grommet,shelf Mtg ,0.69`` ,rh   (Replaces: 5303001609)				$ 11.12
42	240578902		Screw-hinge Mtg,hex Head ,1/4-20 X 5/8   (Replaces: 240578901)			Immediately	$ 15.75
43	241889002		Roller Assy,front Lh ,(2)   (Replaces: 241559602)				$ 70.09
56	240516502		Pin-lower Hinge   (Replaces: 240516501)				$ 80.89
58	240555002		Screw,hex Washer Head ,8-32 X 0.375   (Replaces: 218897002)			Immediately	$ 14.96
59	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442701)				$ 9.27
72	240368301		Grille/kickplate,white			Immediately	$ 77.18
81	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433202)				$ 16.85
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 57.30
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 5303316859)			Immediately	$ 39.27
92	241710601		Screw-hinge Mtg,hex Hd ,1/4-20 X 0.875   (Replaces: 5303001479)				$ 14.96
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 15.75
35A	240336802		Spacer-hinge,center			Immediately	$ 20.48
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 54.48
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 14.96
NI	218931001		Clamp-motor Wiring,nylon ,w/adhesive Tape		Appelez-nous	-
NI	241520701		Harness-wiring,freezer				$ 95.97
NI	241953902		Screw,hex Washer Head ,8-18 X 0.375   (Replaces: 240433201)			Immediately	$ 19.01
NI	5304434189		Seal-coil Cover   (Replaces: 240568601)				$ 74.03
NI	5304500407		Grommet,shelf Mtg ,1.25`` ,lh ,(4)   (Replaces: 5308009759)			Immediately	$ 7.09
NI	241889001		Roller Assy,front Rh ,(2)   (Replaces: 241559601)			Immediately	$ 71.62
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 20.48
