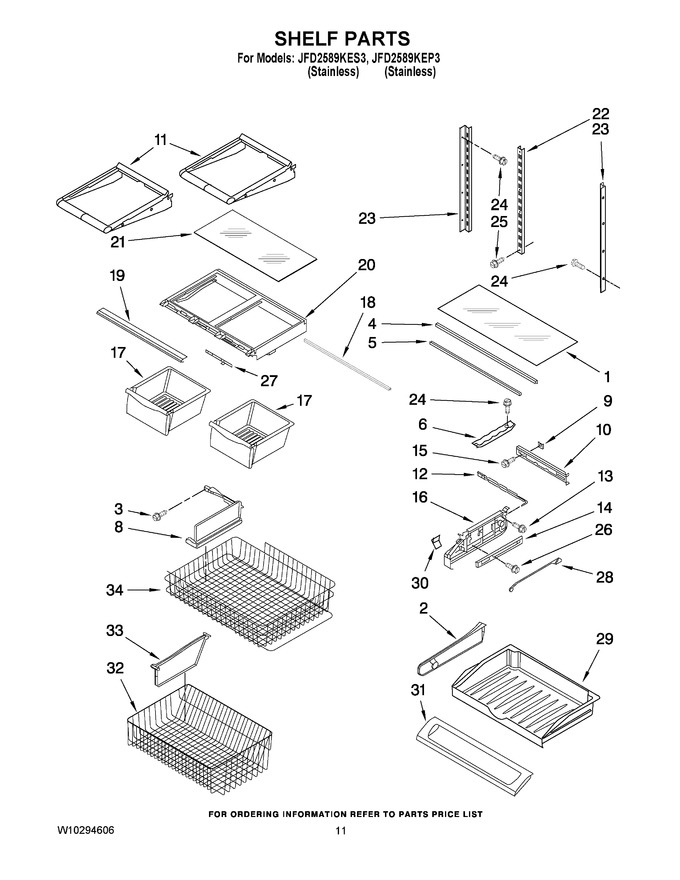

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11033333		Glass, Pantry   (Replaces: 12204830)				$ 227.27
2	WP67002759		Divider, Pantry Drawer   (Replaces: 12731901)			Immediately	$ 61.25
3	12990601		Screw		Appelez-nous	-
4	W11812285		Extr, Glass Support (2)   (Replaces: 12655902SP)				$ 53.33
5	WP12227305WD		Brace, Pantry (2)   (Replaces: 12227305WD)				$ 108.36
6	WP67001719		Track-pantry   (Replaces: 12531901)			Immediately	$ 8.99
8	12693802		Divider, Upper Basket		Appelez-nous	-
9	67002329		Gasket, Pantry   (Replaces: 12656901)				$ 22.09
10	12656202		Housing, Control				$ 148.84
11	12654610		Shelf, Glide (4)		Appelez-nous	-
12	WP67003793		Slide, Temperature   (Replaces: 12655402)			Immediately	$ 78.49
13	WP67006415		Screw (4)   (Replaces: 12990512)				$ 8.38
14	WPW10235370		Glide, Drawer(2)   (Replaces: 13058101V)			Immediately	$ 199.80
15	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
16	W10874836		Endcap, Pantry (right)   (Replaces: 12656023)			Immediately	$ 38.43
16	W10874836		Endcap, Pantry (left)   (Replaces: 12656106)			Immediately	$ 38.43
17	WP67004515		Pan, Crisper (2)   (Replaces: 12804601SP)			Immediately	$ 176.72
18	WP12642303WD		Brace, Crisper   (Replaces: 12642303WD)				$ 112.26
19	W10231487		Trim, Crisper		Appelez-nous	-
20	WP67003854		Frame, Crisper   (Replaces: 12796301SP)			Immediately	$ 227.55
21	WP67006704		Glass, Crisper Cover   (Replaces: 12204824)				$ 212.77
22	W10273463		Ladder, Center				$ 29.61
23	W10251971		Ladder, Side				$ 59.47
24	67006425		Screw (6)   (Replaces: 12990513)			Immediately	$ 7.30
25	W10709795		Screw (2)   (Replaces: 12990515)				$ 13.79
26	WP98165		Screw (4)   (Replaces: 12990504)				$ 8.57
27	WP67005864		Slide, Humidity Control   (Replaces: 12530805SP)			Immediately	$ 8.20
28	WP67003795		Rod, Temperature Control   (Replaces: 12655304)				$ 8.45
29	WP67003531		Drawer, Pantry   (Replaces: 12731302)				$ 162.82
30	W11498983		Knob, Temperature Control   (Replaces: 12655204V)				$ 30.64
31	W10827015		Door, Pantry Drawer   (Replaces: 12656813)			Immediately	$ 175.81
32	WPW10503184		Basket, Freezer (lower)   (Replaces: 13016003)				$ 250.08
33	12659608		Divider, Lower Basket		Appelez-nous	-
34	12896403		Basket, Freezer (upper)		Appelez-nous	-
