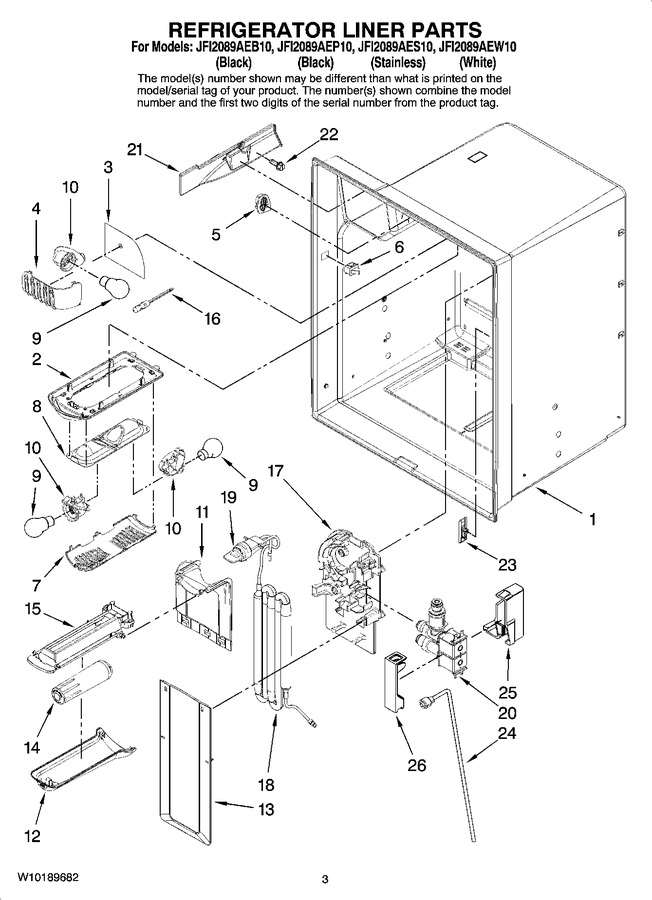

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 67006328 | Module, Light |
|
- | |||||
| 3 | 67006326 | Foil, Light |
|
- | |||||
| 4 | 12921801 | Cover, Light (Replaces: 67006327) |
|
$ 22.64 | |||||
| 5 | W10555984 | Grille, Air (Replaces: 67006316) |
|
Immediately | $ 42.09 | ||||
| 6 | W11396033 | Switch, Light (2) (Replaces: 12466103) |
|
Immediately | $ 37.30 | ||||
| 7 | 67006318 | Cover, Light |
|
$ 28.75 | |||||
| 8 | 12806601 | Housing, Light (Replaces: 67003901) |
|
$ 110.20 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: A0282812) |
|
Immediately | $ 11.30 | ||||
| 10 | W11447232 | Socket, Light (Replaces: Y12570701) |
|
Immediately | $ 13.87 | ||||
| 11 | 12960101 | Cover, Water Tank (upper) (Replaces: 67006330) |
|
$ 134.01 | |||||
| 12 | WP67006331 | Lid, Water Filter (Replaces: 67006331) |
|
Immediately | $ 118.37 | ||||
| 13 | 67006329 | Cover, Water Tank (lower) |
|
$ 198.95 | |||||
| 14 | EDR4RXD1B | Filter, Water (Replaces: UKF8001AXX) |
|
Immediately | $ 49.99 | ||||
| 15 | 67006325 | Bracket, Filter Base |
|
Immediately | $ 105.39 | ||||
| 16 | 12002355 | Thermistor |
|
Immediately | $ 47.36 | ||||
| 17 | 67006324 | Bracket, Water Tank & Valve |
|
$ 26.53 | |||||
| 18 | WP12956202 | Water Tank & Head Assembly (Replaces: 12956202) |
|
Immediately | $ 236.32 | ||||
| 19 | W11395888 | Plug, Bypass (Replaces: 12664501) |
|
Immediately | $ 50.72 | ||||
| 20 | 67006322 | Valve, Water Inlet |
|
Immediately | $ 164.71 | ||||
| 21 | 13033601 | Cover, Ice Box Harness (Replaces: 67007113) |
|
$ 73.54 | |||||
| 22 | 67006425 | Screw (Replaces: M0238642) |
|
Immediately | $ 7.30 | ||||
| 23 | W10189625 | Cover, Chiller Vent |
|
- | |||||
| 24 | 67006970 | Waterline-cabinet W/nut |
|
$ 27.96 | |||||
| 25 | W10118193 | Enclosure, Water Valve Connector |
|
$ 88.80 | |||||
| 26 | W10118194 | Lid, Enclosure |
|
- |
