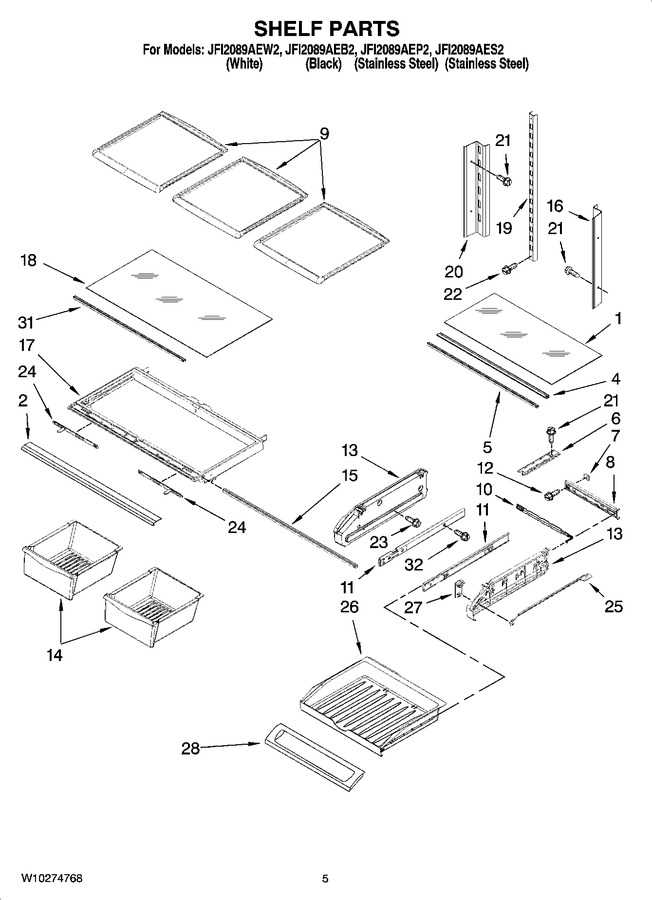

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11125512 | Glass, Pantry (Replaces: 12204829) |
|
Immediately | $ 253.06 | ||||
| 2 | W10231478 | Trim, Crisper |
|
$ 50.69 | |||||
| 4 | W11812285 | Support, Pantry(2) (Replaces: 12655902SP) |
|
$ 53.33 | |||||
| 5 | WP12227305WD | Brace, Pantry (2) (Replaces: 12227305WD) |
|
$ 108.36 | |||||
| 6 | WP67001719 | Track-pantry (Replaces: 12531901) |
|
Immediately | $ 8.99 | ||||
| 7 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 22.09 | |||||
| 8 | 12656202 | Housing, Control |
|
$ 148.84 | |||||
| 9 | WP12463912 | Shelf, Glide (3) (Replaces: 12463912) |
|
$ 309.57 | |||||
| 10 | WP67003793 | Slide, Temperature (Replaces: 12655402) |
|
Immediately | $ 78.49 | ||||
| 11 | WPW10235370 | Glide, Drawer(2) (Replaces: 13058101V) |
|
Immediately | $ 199.80 | ||||
| 12 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 13 | WP12656105 | Endcap, Pantry (left) (Replaces: 12656105) |
|
Immediately | $ 58.41 | ||||
| 13 | WP12656018 | Endcap, Pantry (right) (Replaces: 12656020) |
|
Immediately | $ 58.87 | ||||
| 14 | WP67002659 | Pan, Crisper (2) (Replaces: 12531105SP) |
|
Immediately | $ 147.67 | ||||
| 15 | WP12227305WD | Support, Crisper Cover (Replaces: 12227305WD) |
|
$ 108.36 | |||||
| 16 | 13039303 | Ladder, Side Rh |
|
- | |||||
| 17 | WP67006185 | Frame, Crisper (Replaces: 12531202SP) |
|
$ 216.05 | |||||
| 18 | WP67006655 | Glass, Crisper Cover (Replaces: 12204821) |
|
Immediately | $ 228.45 | ||||
| 19 | 12435809 | Ladder, Center |
|
- | |||||
| 20 | 13039302 | Ladder, Side Lh |
|
- | |||||
| 21 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 22 | W10709795 | Screw (Replaces: 12990515) |
|
$ 13.79 | |||||
| 23 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 8.38 | |||||
| 24 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 25 | 67003794 | Bar, Temperature Control (Replaces: 12655303) |
|
$ 13.82 | |||||
| 26 | W11490183 | Drawer, Pantry (Replaces: 12655702) |
|
$ 144.29 | |||||
| 27 | W11498983 | Knob, Temperature Control (Replaces: 12655204V) |
|
$ 30.64 | |||||
| 28 | W10827015 | Lid, Pantry Drawer Crisper Frame (Replaces: 12656813) |
|
Immediately | $ 175.81 | ||||
| 31 | WP12227304WD | Brace, Crisper (Replaces: 12227304WD) |
|
$ 108.69 | |||||
| 32 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 |
