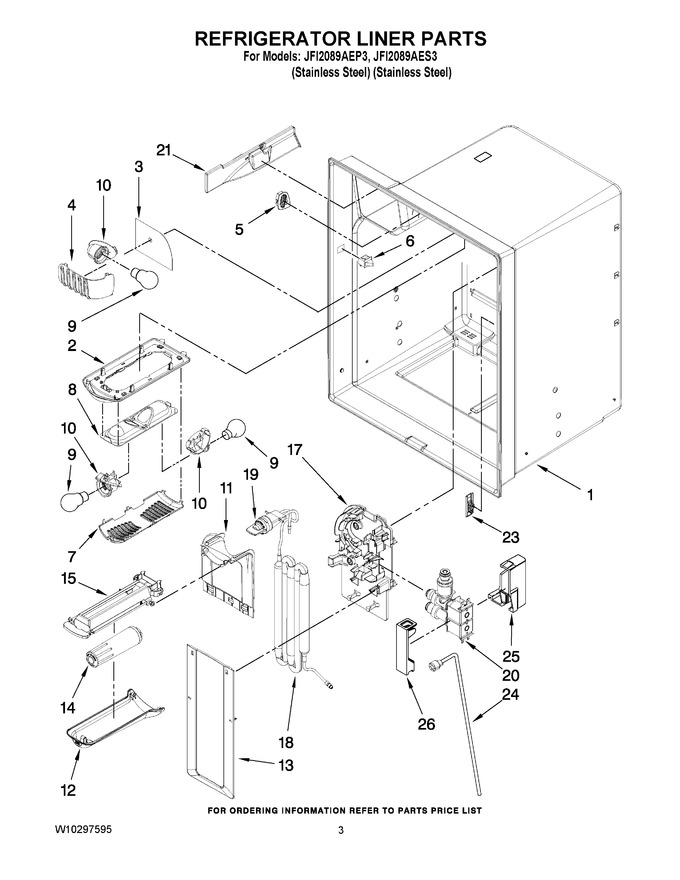

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 12905803 | Module, Light |
|
- | |||||
| 3 | 12691605 | Foil, Light |
|
- | |||||
| 4 | 12921801 | Cover, Light |
|
$ 21.56 | |||||
| 5 | W10555984 | Grille, Air (Replaces: 13008201) |
|
Immediately | $ 40.09 | ||||
| 6 | W11396033 | Switch, Light (2) (Replaces: 12466103) |
|
Immediately | $ 37.30 | ||||
| 7 | 12905902 | Cover, Light |
|
- | |||||
| 8 | 12806601 | Housing, Light (Replaces: 12806601V) |
|
$ 104.95 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: W10194422V) |
|
Immediately | $ 11.30 | ||||
| 10 | W11447232 | Socket, Light (Replaces: 12570701) |
|
Immediately | $ 13.21 | ||||
| 11 | 12960101 | Cover, Water Tank (upper) |
|
$ 127.63 | |||||
| 12 | WP67006331 | Lid, Water Filter (Replaces: 12960301) |
|
Immediately | $ 112.73 | ||||
| 13 | 67006329 | Cover, Water Tank (lower) (Replaces: 12960001) |
|
$ 189.48 | |||||
| 14 | EDR4RXD1B | Filter, Water (Replaces: UKF8001) |
|
Immediately | $ 49.99 | ||||
| 15 | 67006325 | Bracket, Filter Base (Replaces: 12955901) |
|
Immediately | $ 100.37 | ||||
| 17 | 67006324 | Bracket, Water Tank & Valve (Replaces: 12956001) |
|
$ 25.27 | |||||
| 18 | WP12956202 | Water Tank & Head Assembly (Replaces: 12956202) |
|
Immediately | $ 225.07 | ||||
| 19 | W11395888 | Plug, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 50.72 | ||||
| 20 | 67006322 | Valve, Water Inlet (Replaces: 12956102) |
|
Immediately | $ 164.71 | ||||
| 21 | 13033601 | Cover, Ice Box Harness |
|
$ 70.04 | |||||
| 23 | 12987301 | Cover, Chiller Vent |
|
$ 13.08 | |||||
| 24 | 12962202 | Waterline, Cabinet (w/nut) |
|
- | |||||
| 25 | W10118193 | Enclosure, Water Valve Connector |
|
$ 84.57 | |||||
| 26 | W10118194 | Lid, Enclosure |
|
- | |||||
| NI | 12952005 | Harness, Freezer (Replaces: 12952005SP) |
|
$ 145.96 |
