SELECT A DIAGRAM

01 - Oven Parts

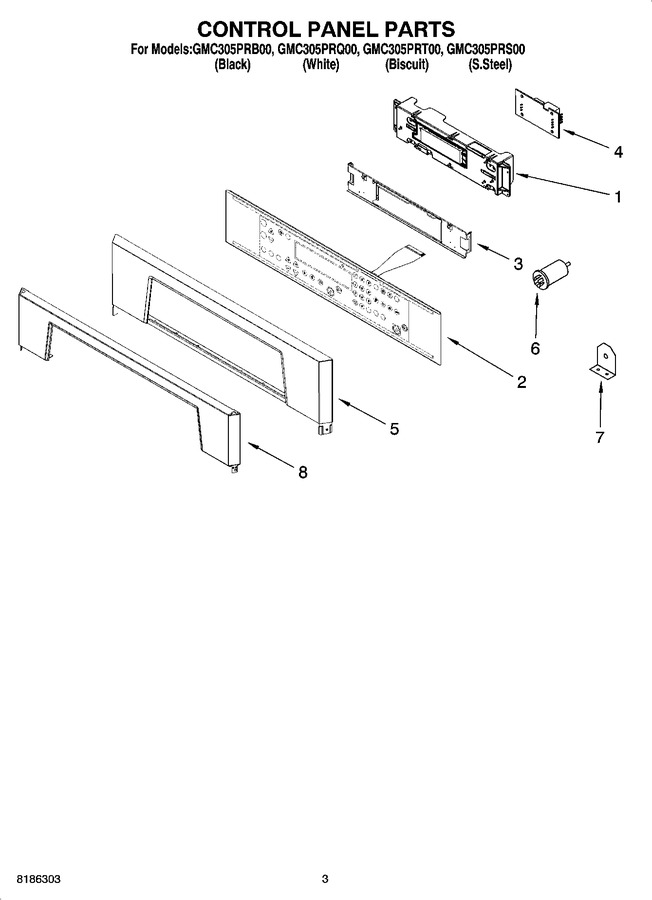

02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303819		Assy, Control		Appelez-nous	-
2	8303183		Assy, Switch (black & Steel Mdl)		Appelez-nous	-
2	8303225		Assy, Switch (white Model)		Appelez-nous	-
2	8303231		Assy, Switch (biscuit Model)		Appelez-nous	-
3	8302990		Backer, Control		Appelez-nous	-
3	WP3400832		Screw   (Replaces: 8281179)			Immediately	$ 7.75
4	8301848		Board, Mtrzd Latch				$ 184.23
5	WP8302848		Control Panel (black & Steel Mdl)   (Replaces: 8302848)				$ 299.82
5	WP4449745		Control Panel (screw)   (Replaces: 4449745)				$ 7.49
5	8302849		Control Panel (white Model)				$ 117.72
5	8302850		Control Panel (biscuit)				$ 112.28
6	4451592		Filter				$ 35.89
7	4451632		Bracket, Filter		Appelez-nous	-
8	8302877		Trim-panel (use On S.steel Model Only)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
