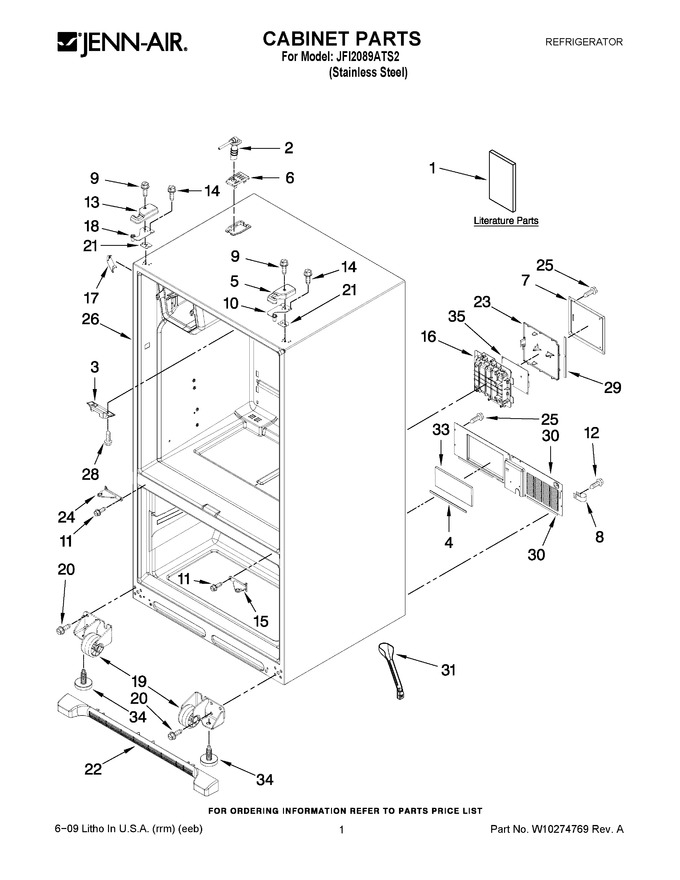

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10238851 | Tech Sheet |
|
- | |||||
| 1 | W10202395 | Guide, Energy |
|
- | |||||
| 1 | 12828144SP | Use & Care Guide |
|
- | |||||
| 2 | W11415785 | Tube W/waterline, Fill-im (Replaces: 12961401) |
|
Immediately | $ 62.39 | ||||
| 3 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759655 | Gasket, Mc Back |
|
$ 13.03 | |||||
| 5 | WP67005956 | Cover, Top Hinge (right) (black) (Replaces: 12962302B) |
|
$ 22.54 | |||||
| 6 | 12981401B | Cover, Fill Tube (black) |
|
$ 13.25 | |||||
| 7 | 12961602 | Cover, Control Box |
|
$ 116.19 | |||||
| 8 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 9 | WP8281196 | Screw, Hinge Cover (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11592374 | Hinge, Top Right (Replaces: 12963205ED) |
|
Immediately | $ 31.90 | ||||
| 11 | W11573362 | Screw, Center Hinge (Replaces: 12992201) |
|
$ 14.72 | |||||
| 12 | 67006425 | Screw (3) (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 13 | W10337647 | Cover, Top Hinge (left) (black) (Replaces: 12962301B) |
|
Immediately | $ 23.33 | ||||
| 14 | WP489349 | Screw, Top Hinge (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W10918164 | Hinge, Center (rt) Black (Replaces: 13000008ED) |
|
$ 91.53 | |||||
| 16 | WP67006390 | Box, Hv Control (Replaces: 12957601) |
|
$ 214.59 | |||||
| 17 | 67003485 | Cover, Corner (2) (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | W11592375 | Hinge, Top Left (Replaces: 12963204ED) |
|
$ 31.92 | |||||
| 19 | W11820445 | Roller Assy. (front) (right) (Replaces: W10212381) |
|
Immediately | $ 37.35 | ||||
| 19 | W11820444 | Roller Assy. (front) (left) (Replaces: W10212382) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | 12999501 | Shim, Top Hinge (left) |
|
$ 99.53 | |||||
| 21 | 12999502 | Shim, Top Hinge (right) |
|
$ 100.60 | |||||
| 22 | WPW10534153 | Grille, Toe (black) (Replaces: W10244561) |
|
$ 154.57 | |||||
| 23 | 12957701SP | Lid, Hv Control |
|
- | |||||
| 24 | W10918164 | Hinge, Center (lt) Black) (Replaces: 13000007ED) |
|
$ 91.53 | |||||
| 25 | W11686675 | Screw, Cover (Replaces: 12990702) |
|
$ 14.27 | |||||
| 26 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 28 | W10854958 | Screw, Block (Replaces: 12990302) |
|
$ 7.90 | |||||
| 29 | 12957801 | Gasket, Hv Control |
|
- | |||||
| 30 | WPW10270394 | Cover, Mc Back (Replaces: W10211858) |
|
$ 208.73 | |||||
| 31 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 33 | 12820505 | Fiber, Acoustic |
|
$ 71.70 | |||||
| 34 | WPW10141622 | Brake, Foot (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 35 | WPW10310240 | Board, Hv Control (Replaces: W10213583) |
|
Immediately | $ 391.86 |
