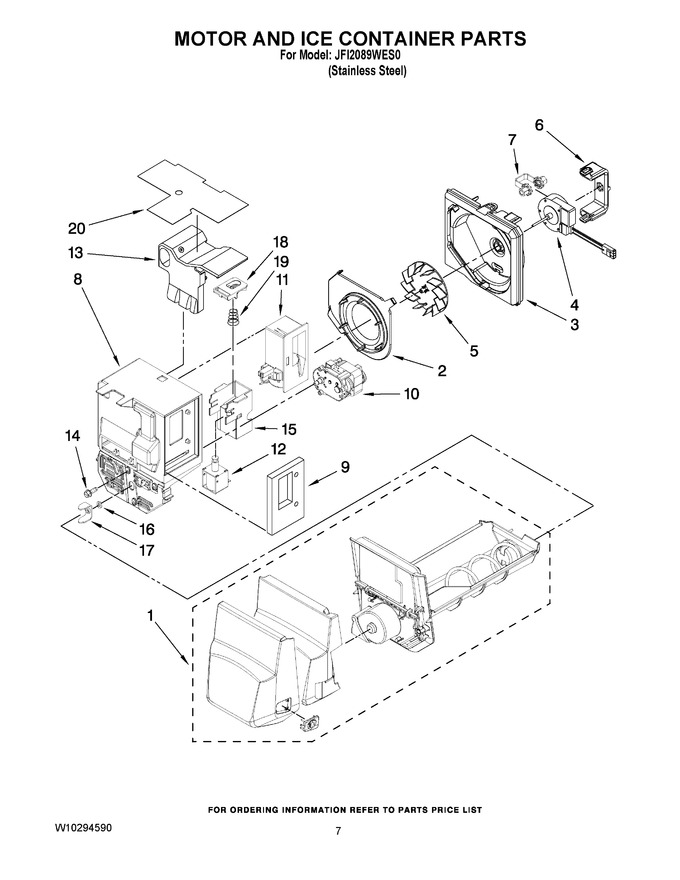

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10324088 | Ice Bin Assembly (includes Auger) (Replaces: 13012604) |
|
$ 349.94 | |||||
| 2 | W10121282 | Inlet, Blower |
|
$ 16.80 | |||||
| 3 | W10121281 | Scroll, Blower |
|
$ 78.25 | |||||
| 4 | WPW10162697 | Motor, Fan (Replaces: W10162697) |
|
$ 338.71 | |||||
| 5 | WPW10123444K | Wheel, Blower (Replaces: W10123444) |
|
$ 88.10 | |||||
| 6 | W10165970 | Clip, Fan Motor (Replaces: 12956603SP) |
|
$ 84.92 | |||||
| 7 | W10151687 | Grommet, Fan Motor |
|
$ 13.08 | |||||
| 8 | 12958407SP | Divider, Ice Box |
|
- | |||||
| 9 | WP67006341 | Gasket, Damper (Replaces: 12920001SP) |
|
$ 7.96 | |||||
| 10 | W11671282 | Motor, Auger (Replaces: 12955405) |
|
Immediately | $ 110.51 | ||||
| 11 | WPW10127427 | Damper, Control (Replaces: W10127427) |
|
Immediately | $ 246.61 | ||||
| 12 | 67006344 | Solenoid (Replaces: 13028201SP) |
|
$ 190.98 | |||||
| 13 | W11676504 | Liner, Divider (Replaces: W10118612) |
|
$ 24.23 | |||||
| 14 | 67006425 | Screw (3) (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 15 | 67007111 | Bracket, Solenoid (Replaces: 12958602SP) |
|
$ 21.16 | |||||
| 16 | 67006346 | Washer (Replaces: 420107A700) |
|
$ 15.21 | |||||
| 17 | WP63052-2 | Yoke, Ice Dispenser (Replaces: 63052A001) |
|
Immediately | $ 68.91 | ||||
| 18 | 12958502SP | Yoke, Solenoid |
|
- | |||||
| 19 | 67006348 | Spring, Solenoid (Replaces: 12942401SP) |
|
$ 12.80 | |||||
| 20 | W10142628 | Foil, Ice Box |
|
$ 55.83 |
