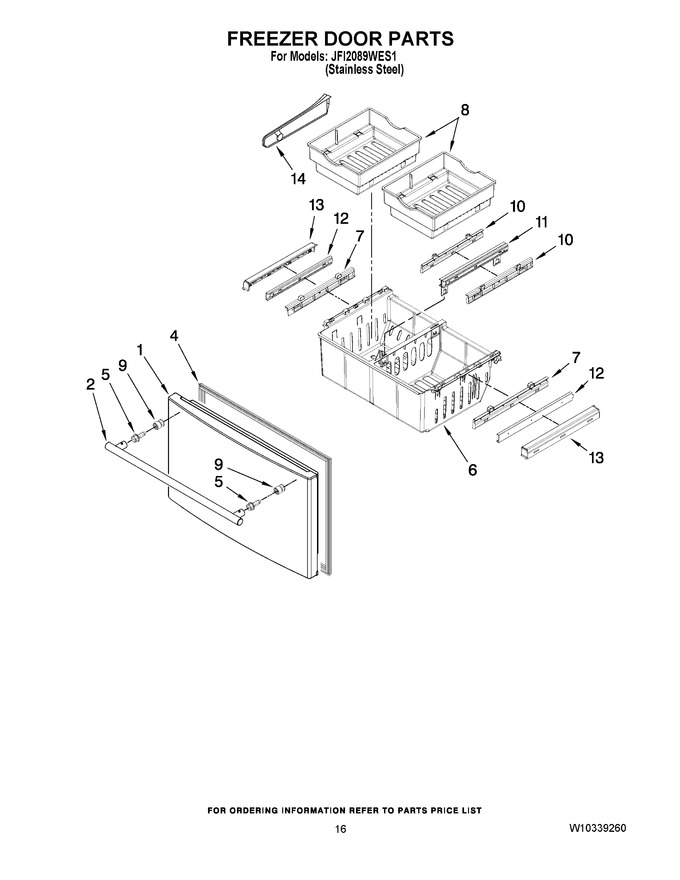

09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977842SQ		Freezer Door (stainless)		Appelez-nous	-
2	WPW10298179		Handle, Door (stainless) (for Jfi2089wes0)   (Replaces: W10298179)				$ 319.69
4	WPW10436253		Gasket, Door (black)   (Replaces: W10164044)				$ 360.89
5	W10290759		Screw-handle				$ 5.83
6	13002801SP		Bin, Lower		Appelez-nous	-
7	W10187469		Adapter, Bin (outer)   (Replaces: 13002603SP)				$ 92.28
8	W10184227		Bin, Upper   (Replaces: 13002402)			Immediately	$ 122.12
9	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
10	W10184223		Adapter, Bin (center)   (Replaces: 13002604SP)				$ 97.14
11	W10235358		Bracket/glide Assembly				$ 318.09
12	WPW10235368		Glide, Upper   (Replaces: W10235368)				$ 335.82
13	W10826790		Retainer, Glide (left)   (Replaces: 13002701SP)				$ 62.48
13	W10826791		Retainer, Glide (right)   (Replaces: 13002702SP)				$ 62.48
14	WP67002321		Divider, Pantry   (Replaces: 12709301)				$ 33.79
