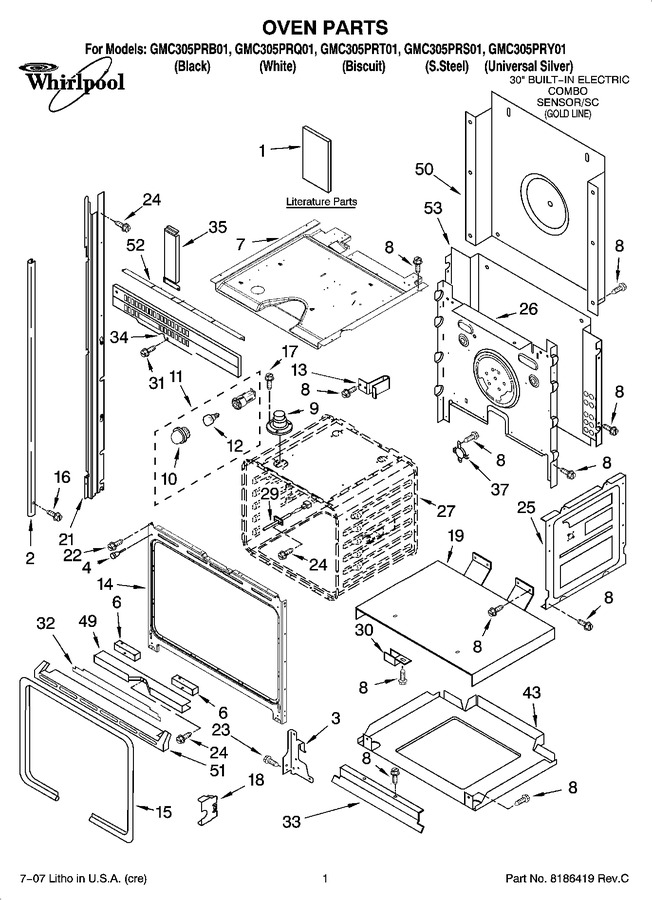

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8303655 | Installation Instructions (english) |
|
- | |||||
| 1 | 8303780 | Installation Instructions (french) |
|
- | |||||
| 1 | 8304078 | Use & Care Guide (microwave) (english) |
|
- | |||||
| 1 | 8304082 | Use & Care Guide (microwave) (french) |
|
- | |||||
| 1 | 8304077 | Use & Care Guide (oven) (english) |
|
- | |||||
| 1 | 8304081 | Use & Care Guide (oven) (french) |
|
- | |||||
| 1 | 8304173 | Tech Sheet (oven) |
|
- | |||||
| 1 | 3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | 9759133 | Safer Cooking Tips |
|
- | |||||
| 2 | 8302929 | Trim, Side (rh White) |
|
- | |||||
| 2 | 8302931 | Trim, Side (rh Biscuit) |
|
- | |||||
| 2 | 8302928 | Trim, Side (lh Black) |
|
- | |||||
| 2 | 8303218 | Trim, Side (lh S.steel) |
|
- | |||||
| 2 | 8303217 | Trim, Side (rh S.steel) |
|
- | |||||
| 2 | 8302930 | Trim, Side (lh White) |
|
- | |||||
| 2 | 8302932 | Trim, Side (lh Biscuit) |
|
- | |||||
| 2 | 8302927 | Trim, Side (rh Black) |
|
- | |||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 115.36 | ||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 119.41 | ||||
| 4 | 4448520 | Bumper, Door |
|
$ 21.19 | |||||
| 6 | 4452490 | Spacer, Foam |
|
$ 34.83 | |||||
| 7 | 8303099 | Top Chassis |
|
$ 70.97 | |||||
| 8 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.19 | ||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 116.63 | |||||
| 10 | 4452165 | Lens, Light |
|
- | |||||
| 11 | 4452368 | Oven Light Assy |
|
- | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 53.62 | ||||
| 13 | 8300791 | Bracket, Combo |
|
- | |||||
| 14 | 9759060 | Frame, Front |
|
- | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 69.75 | ||||
| 16 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 7.75 | ||||
| 17 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.02 | ||||
| 18 | 4452152 | Bracket, Mounting |
|
$ 33.50 | |||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 21 | 8303118 | Rail, Side (left Side) |
|
- | |||||
| 21 | 8303117 | Rail, Side (right Side) |
|
- | |||||
| 22 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 23 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 7.19 | |||||
| 24 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.56 | |||||
| 25 | W10782197 | Side, Chassis (r.h. & L.h.) (Replaces: 4455641) |
|
$ 143.51 | |||||
| 26 | 4452234 | Back, Chassis |
|
- | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 95.83 | ||||
| 30 | 4449845 | Bracket-support |
|
- | |||||
| 31 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 7.60 | |||||
| 32 | 8300154 | Insulation, Bottom Vent |
|
- | |||||
| 33 | 9760677 | Deflector, Vent |
|
$ 155.46 | |||||
| 34 | 8302592 | Vent, Center |
|
$ 63.42 | |||||
| 35 | 4449906 | Ext Filler |
|
- | |||||
| 37 | WP9759243 | Thermostat (tod) (temp.) Spst (Replaces: 9759243) |
|
Immediately | $ 55.44 | ||||
| 43 | 9759713 | Base, Chassis |
|
$ 100.19 | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 8.86 | |||||
| 50 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 142.92 | |||||
| 51 | WPW10207689 | Trim, Bottom (black) (Replaces: 8302947) |
|
$ 196.04 | |||||
| 51 | 8302950 | Trim, Bottom (s.steel) |
|
- | |||||
| 51 | WPW10207689 | Trim, Bottom (biscuit) (Replaces: 8302949) |
|
$ 196.04 | |||||
| 51 | WPW10207689 | Trim, Bottom (white) (Replaces: 8302948) |
|
$ 196.04 | |||||
| 52 | 8303502 | Vent, Control |
|
- | |||||
| 53 | 4450365 | Insulation, Back |
|
$ 70.95 | |||||
| 53 | 4451756 | Chassis, Back |
|
- | |||||
| 53 | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 118.90 |
