SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts

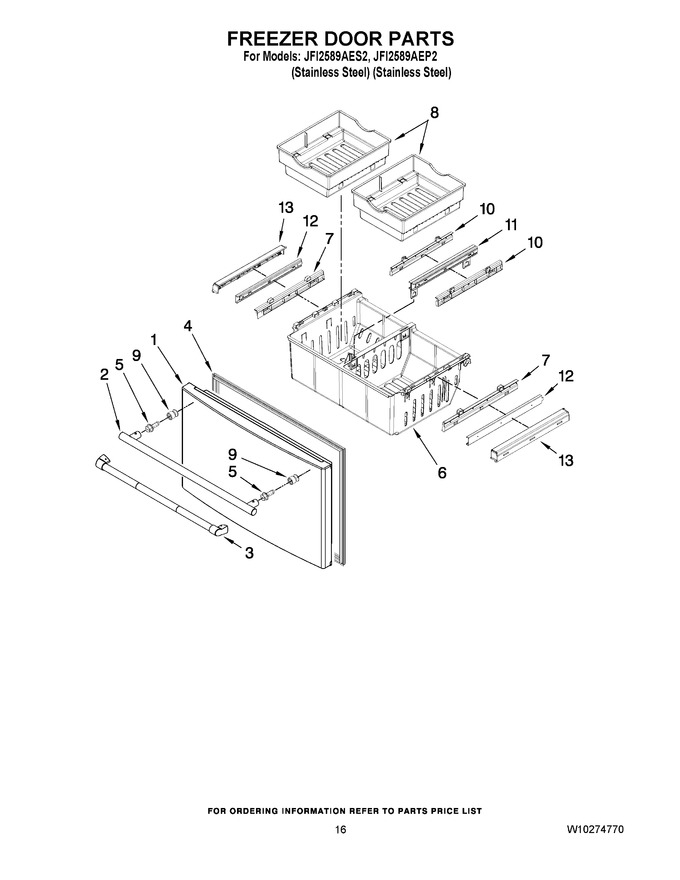

09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977803SQ		Freezer Door (stainless)		Appelez-nous	-
2	12850918		Handle, Door (stainless) (for Jfi2589aes2)		Appelez-nous	-
3	WP12859110		Handle, Door (stainless) (for Jfi2589aep2)   (Replaces: 12859110)				$ 327.58
4	WPW10436253		Gasket, Door (black)   (Replaces: W10164044)				$ 360.89
5	WPW10133608		Screw, Handle   (Replaces: 12991202)				$ 10.28
6	12924801SP		Bin, Lower		Appelez-nous	-
7	W10166742		Adapter, Bin (outer)   (Replaces: 12925403SP)				$ 98.12
8	WP12924903		Bin, Upper   (Replaces: 12924903)				$ 132.30
9	12945201		Mount, Handle				$ 35.20
10	12925404SP		Adapter, Bin (center)				$ 45.32
11	WPW10235357		Bracket/glide Assembly   (Replaces: 12969701)			Immediately	$ 330.98
12	WPW10235367		Glide, Upper   (Replaces: 12925101)				$ 313.43
13	W10826788		Retainer, Glide (left)   (Replaces: 12925501SP)				$ 57.50
13	WP67006368		Retainer, Glide (right)   (Replaces: 12925502SP)				$ 192.90

    View Diagram in Separate Window       Print Part List
